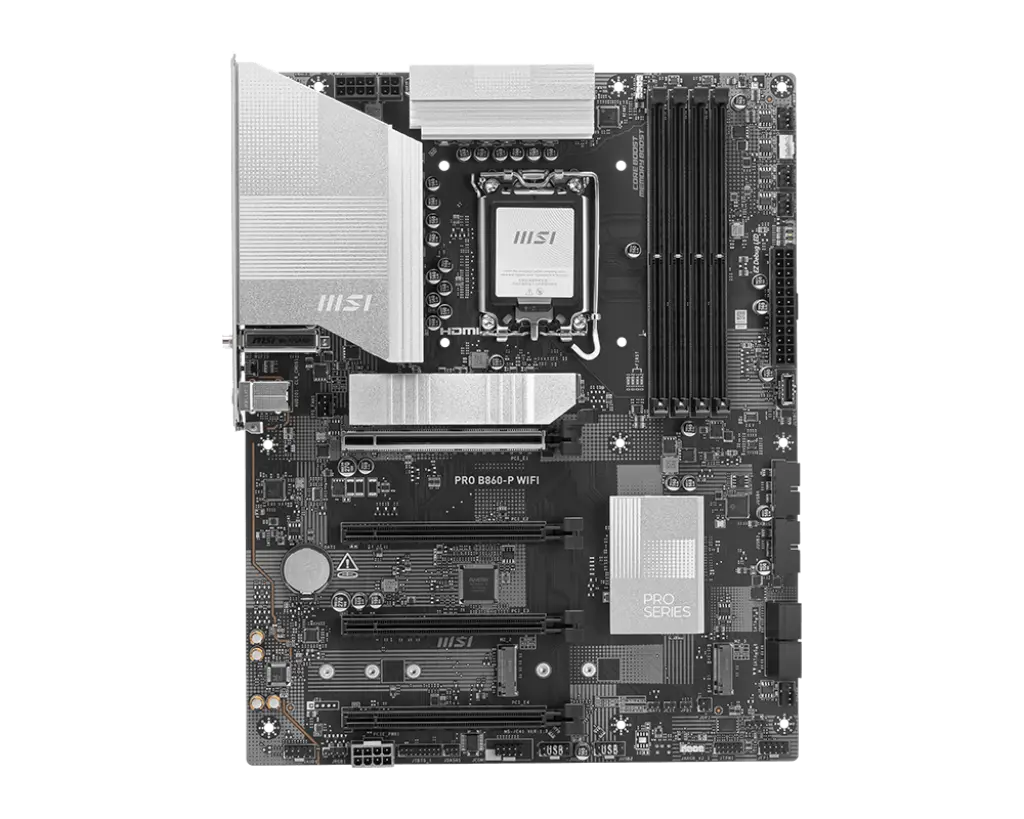

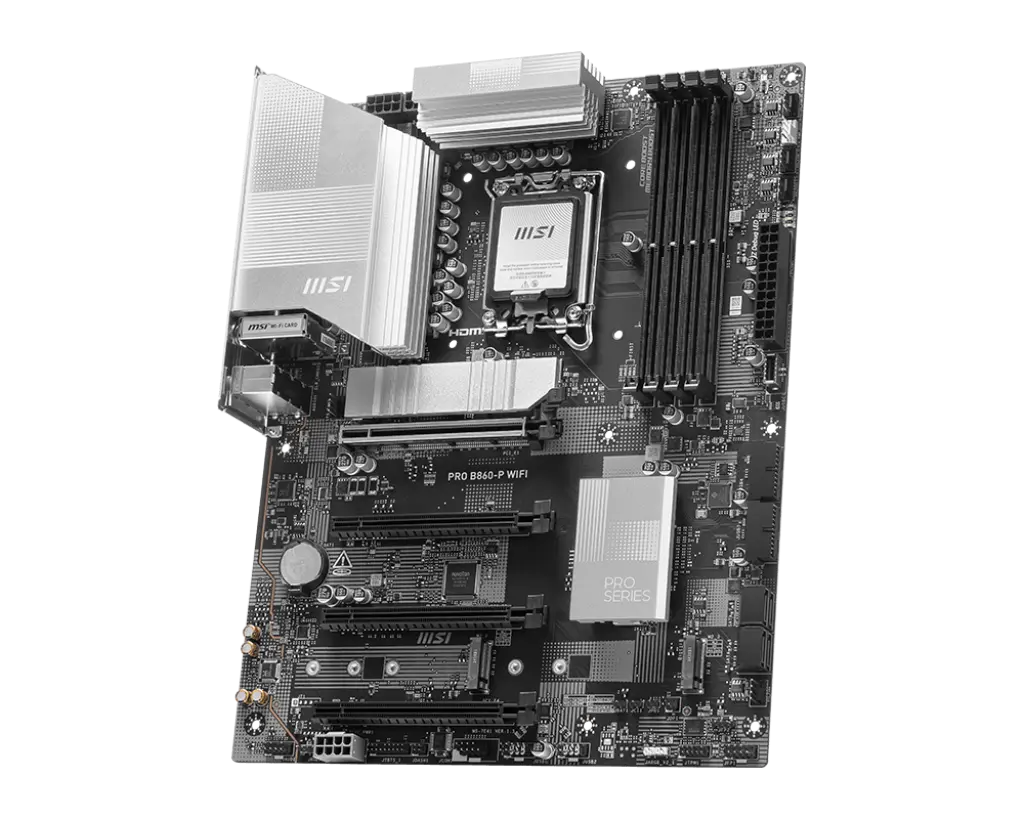

MSI PRO B860-P DDR5 INTEL LGA 1851 DDR5 PCIe 5.0 ATX
- CPU Compatibility: Supports Intel® Core™ Ultra Series 2 processors on the LGA 1851 socket
- Chipset & Power Design: Intel B860 chipset with 12+1+1+1 Duet Rail (P‑PAK) digital power system optimized with Core Boost for stable performance
- Memory Support: 4 × DDR5 UDIMM slots supporting up to 256 GB; memory overclocking up to DDR5‑8800+ MT/s (optimal 1 DPC single-rank)
- Expansion Slots: 1 × CPU-connected PCIe 5.0 ×16 SafeSlot, 1 × PCIe 4.0 ×16 (×1 mode), 1 × PCIe 4.0 ×16 (×4 mode), 1 × PCIe 4.0 ×1 slot
- Storage Options: 3 × M.2 slots — M.2_1: PCIe 5.0 ×4 (from CPU), M.2_2: PCIe 4.0 ×4 (from chipset), M.2_3: PCIe 4.0 ×2 (from chipset); 4 × SATA 6 Gb/s ports with RAID 0/1/5/10 support
- Networking: Realtek 5 Gb LAN and built-in Wi‑Fi 7 (802.11be) with Bluetooth v5.4 via onboard M.2 module
- Thunderbolt & Video Outputs: Rear Thunderbolt 4 (USB-C) port supporting DisplayPort 2.1 (UHBR20) up to 40 Gbps, 8K@60 Hz or 4K@120 Hz; 1 × HDMI 2.1 and 1 × DisplayPort 1.4 output (via integrated GPU)

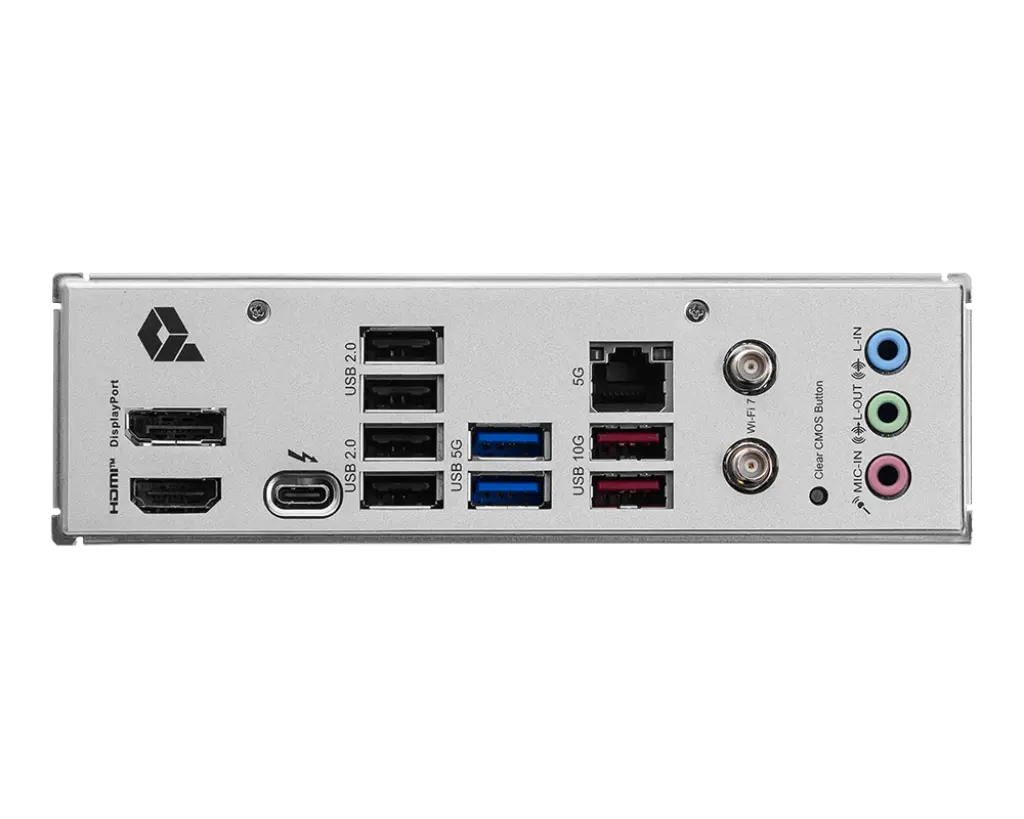

- USB & I/O Ports: Rear includes USB4 (40 Gbps), USB 10 Gbps Type-A, USB 5 Gbps Type-A, USB 2.0 ports, plus Clear CMOS button and antenna connectors
- Audio Subsystem: Realtek ALC897 codec delivering 7.1-channel high-definition audio
- Form Factor & Thermal Design: ATX form factor (~305 × 243.8 mm), MSI’s Frozr thermal solution with extended heatsink, high-performance thermal pads (7 W/mK), and EZ M.2 Shield Frozr II; EZ DIY enhancements including PCIe Clip II, M.2 Clip II, and AI-enhanced cooling and power management
This content will be shared across all product pages.
| Brand: MSI |
| CPU Compatibility: INTEL |
| Chipset: B860-P |
| Socket Type: LGA 1851 |
| Memory Type: DDR5 |
| Form Factor: ATX |
| Color: Black |
