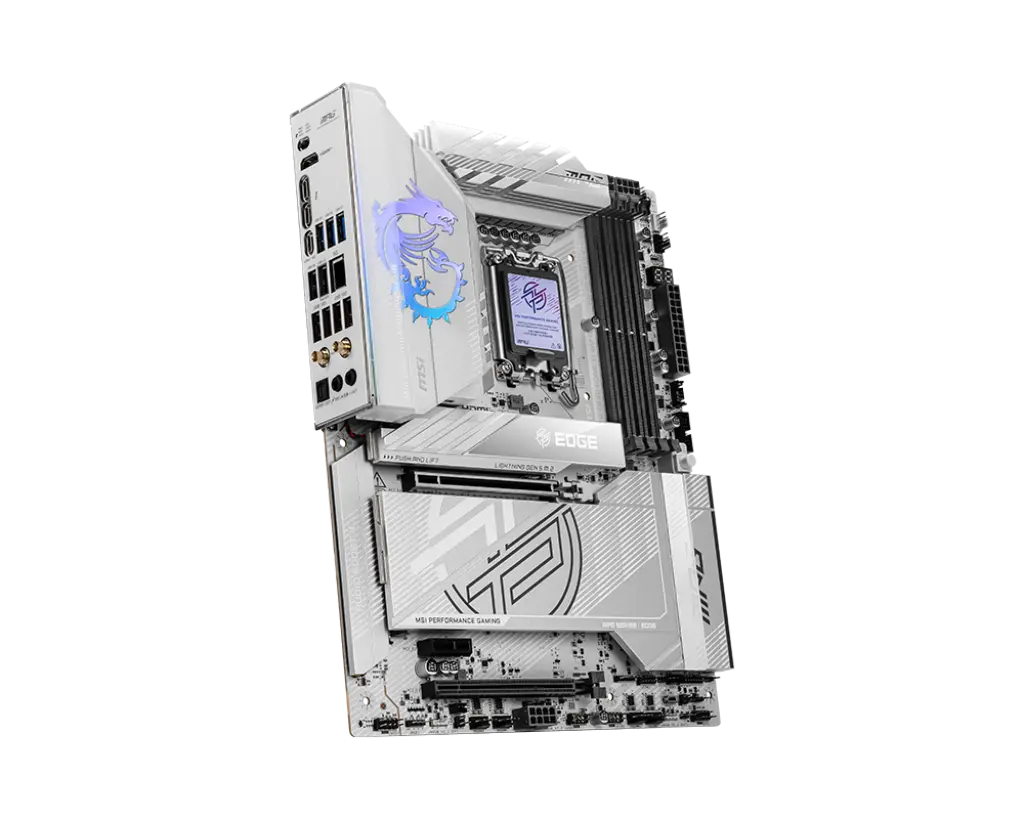

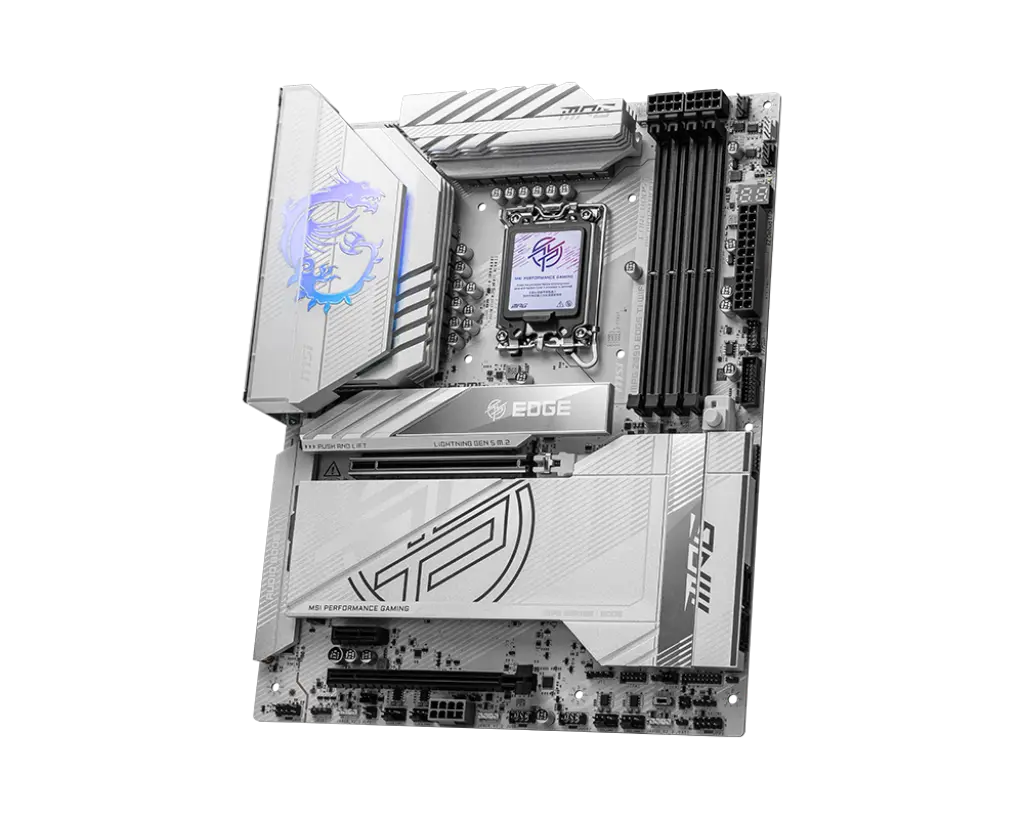

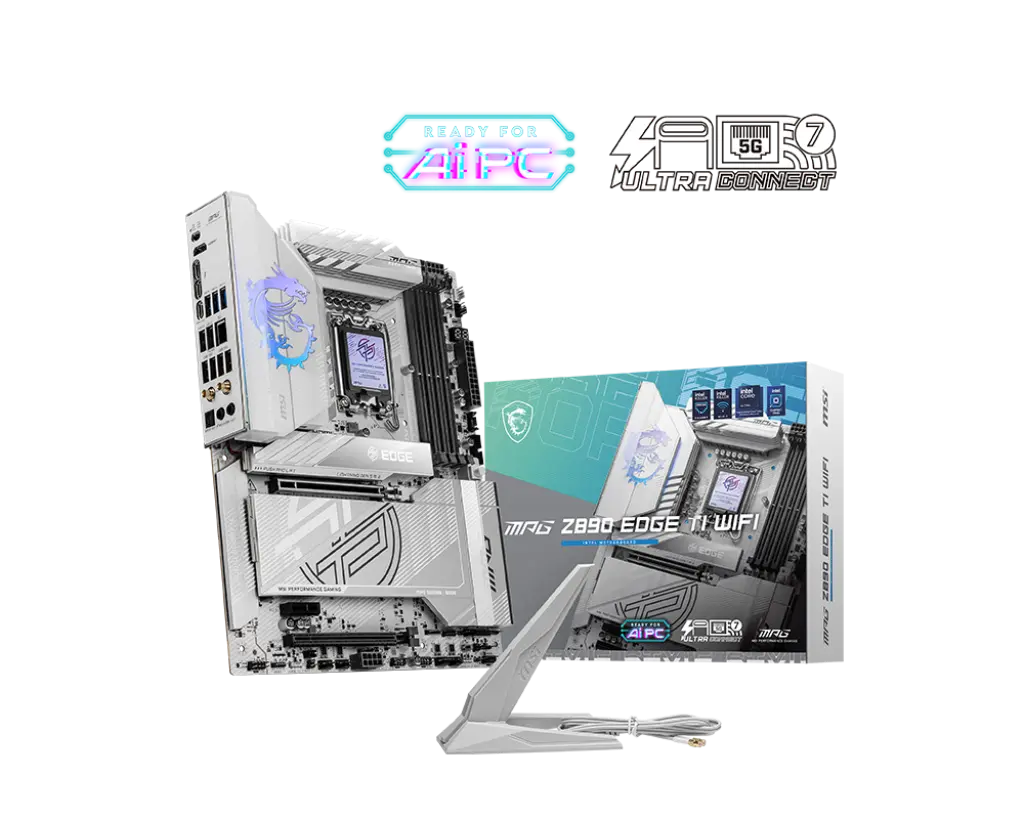

MSI MPG Z890 EDGE TI WIFI INTEL LGA 1851 DDR5 PCIe 5.0 ATX
- CPU Compatibility: Supports Intel® Core™ Ultra Processors (Series 2) using the LGA 1851 socket
- Chipset & Power Design: Equipped with the Intel Z890 chipset and a 16 + 1 + 1 + 1 Duet Rail power system, featuring 90 A Smart Power Stages and dual 8-pin CPU power connectors on an 8-layer, 2 oz copper PCB
- Memory Support: 4 × DDR5 UDIMM slots supporting up to 256 GB, with overclocking up to 9200+ MT/s
- Expansion Slots: 1 × PCIe 5.0 ×16 SafeSlot (CPU-connected), 1 × PCIe 4.0 ×16 slot (×4 mode, chipset), 1 × PCIe 4.0 ×1 slot
- Storage Interface: Five M.2 slots (1 × PCIe 5.0 ×4, 4 × PCIe 4.0 ×4/SATA – supporting various form factors) plus 4 × SATA 6 Gb/s ports with RAID array support
- Networking: Integrated Intel Killer 5 Gb LAN, Realtek 2.5 Gb LAN, Wi‑Fi 7 (802.11be) Tri-band, and Bluetooth 5.4 support
- Thunderbolt & Video Outputs: 2 × Thunderbolt 4 (USB-C) ports supporting DisplayPort 2.1 (8K @ 60 Hz or 4K @ 120 Hz), 1 × HDMI 2.1 and 1 × DisplayPort 1.4 (via integrated GPU)

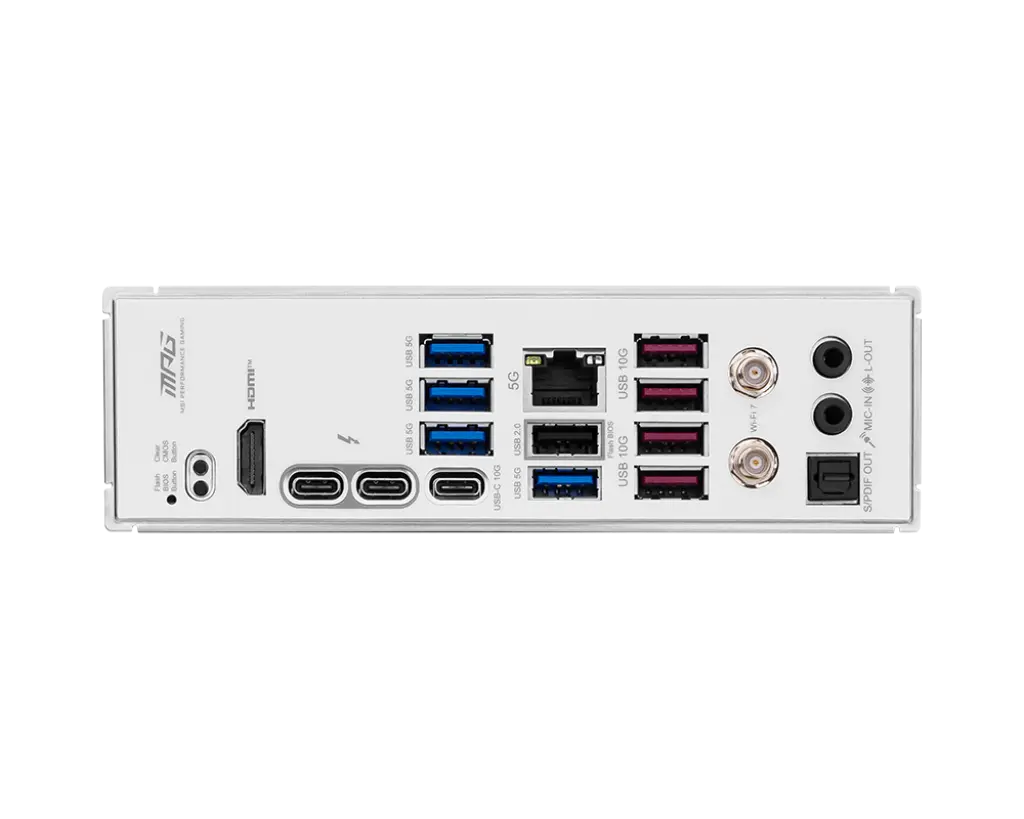

- USB & Rear I/O Connectivity: Rear includes USB4 (Thunderbolt 4), USB 10 Gbps Type-C, 4 × USB 10 Gbps Type-A, 4 × USB 5 Gbps Type-A, and USB 2.0 ports; Internal headers include USB-C (20 Gbps) front header, plus Gen 1/Gen 2 and USB 2.0 headers; Flash BIOS and Clear CMOS buttons
- Audio System:Realtek ALC1220P codec delivering 7.1-channel high-definition audio, enhanced with Audio Boost 4
- Thermal Design & DIY Features: Enlarged heatsinks connected via heat pipe, M.2 Shield Frozr II, Smart Fan 7, Frozr Guard, MOSFET thermal pads; DIY enhancements include EZ PCIe Release, EZ M.2 Clip II, pre-mounted I/O shield, Debug LED, AI Cooling, and Mystic Light
This content will be shared across all product pages.
| Brand: MSI |
| CPU Compatibility: INTEL |
| Chipset: Z890 |
| Socket Type: LGA 1851 |
| Memory Type: DDR5 |
| Form Factor: ATX |
| Color: White |
