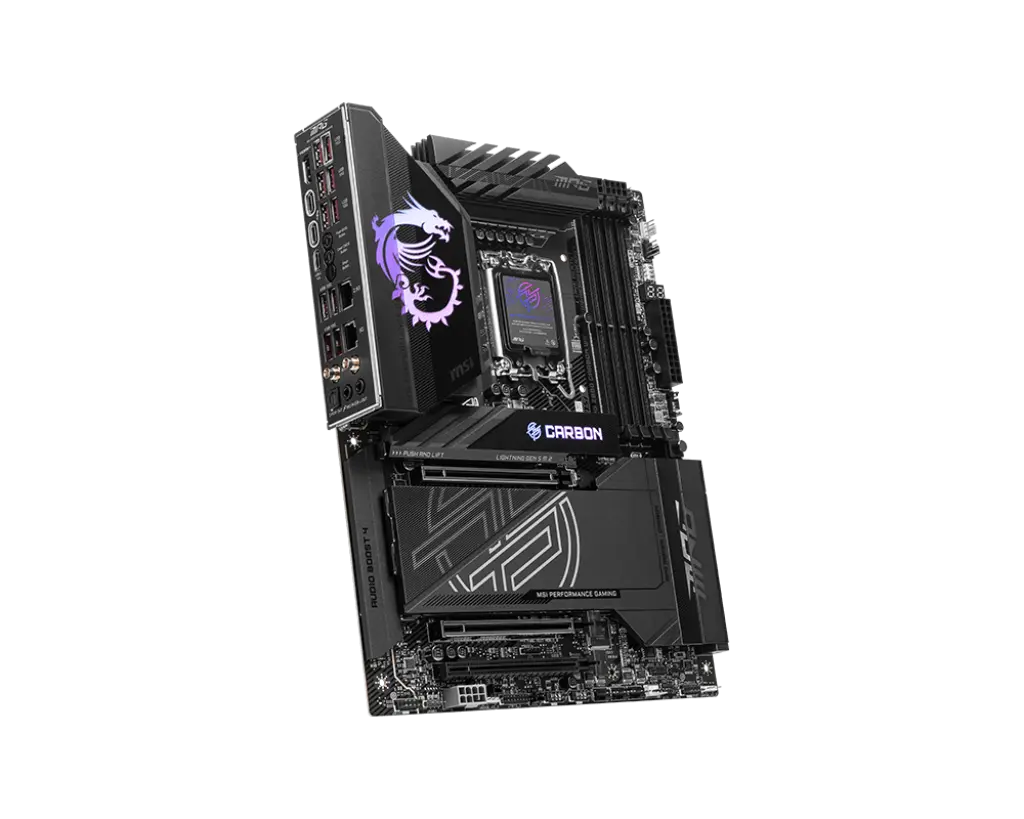

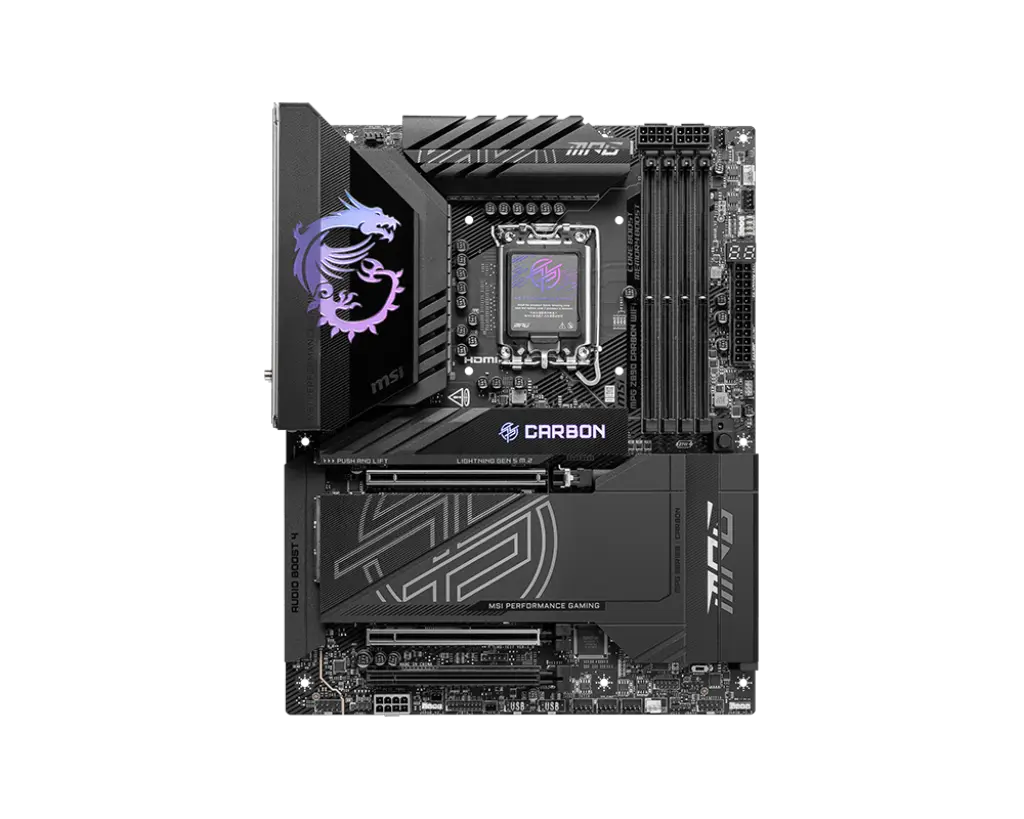

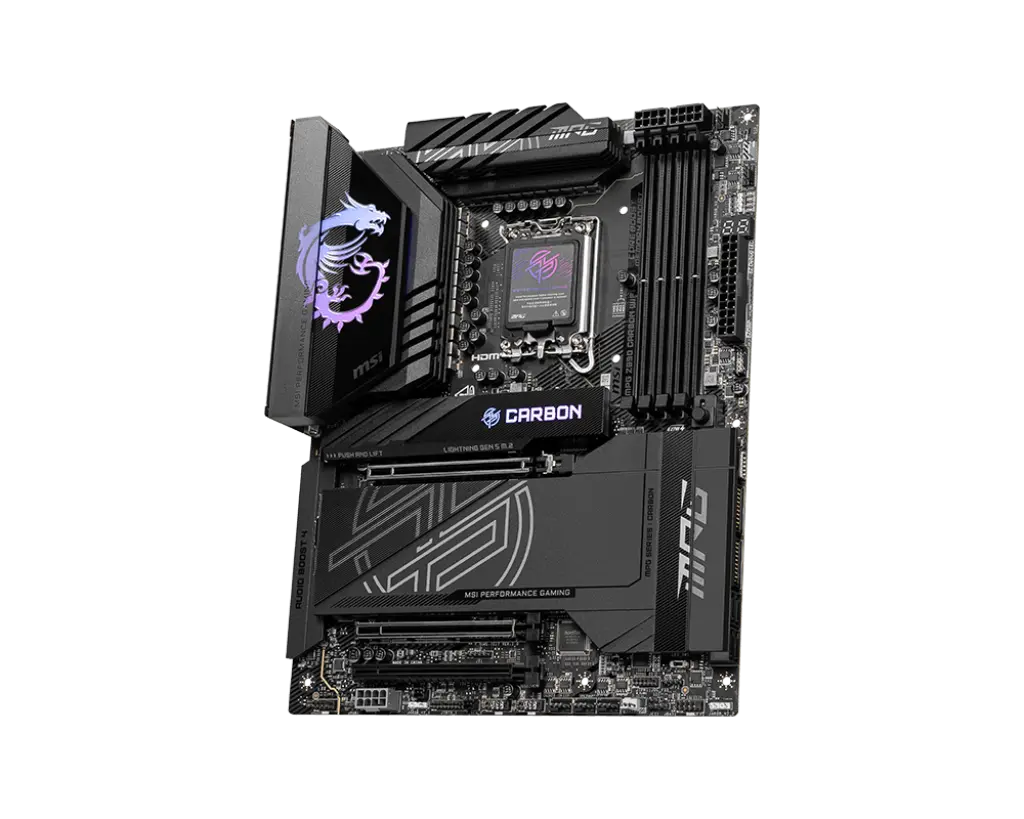

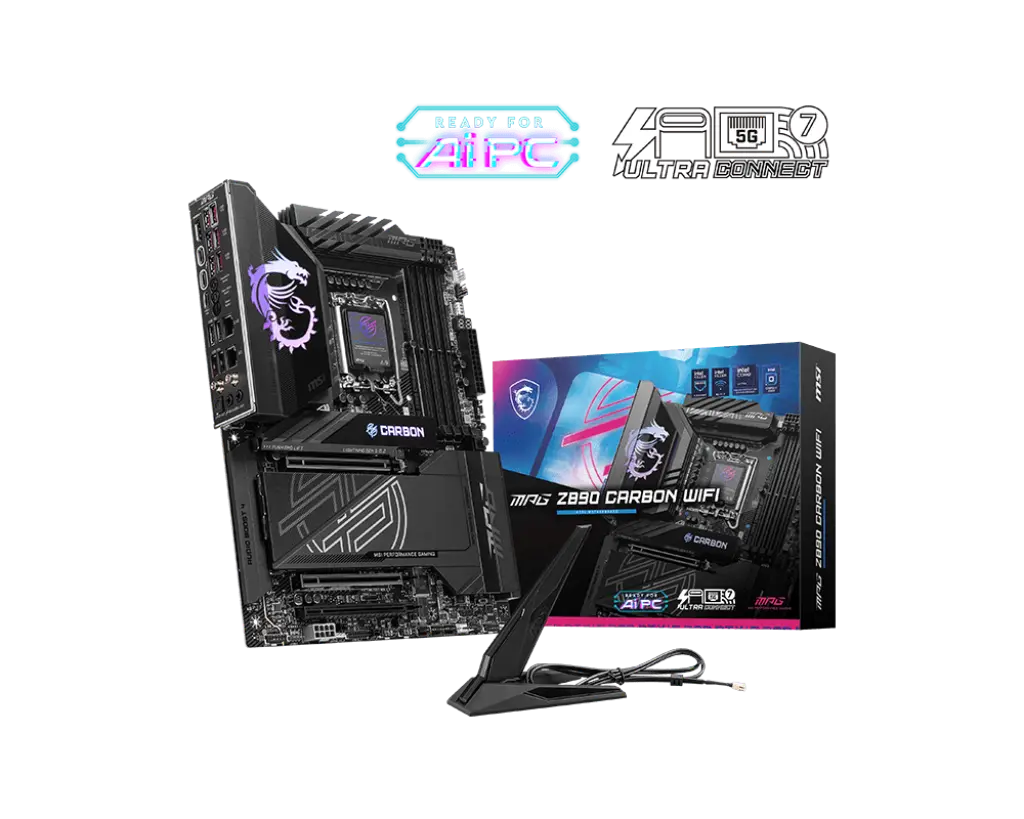

MSI MPG Z890 CARBON WIFI INTEL LGA 1851 DDR5 PCIe 5.0 ATX
- CPU Compatibility: Supports Intel® Core™ Ultra Series 2 processors using the LGA 1851 socket, powered by the Intel Z890 chipset
- Chipset & Power Design: Equipped with the Intel Z890 chipset, featuring a 20 + 1 + 1 + 1 VRM power phase design and enhanced cooling components including extended heatsinks and MOSFET pads
- Memory Support: 4 × DDR5 UDIMM slots supporting up to 256 GB, with overclocking up to 9200+ MT/s in optimal configurations
- Expansion Slots: 2 × PCIe 5.0 ×16 SafeSlot, 1 × PCIe 4.0 ×16 (runs at ×4 mode), additional PCIe 4.0 ×1 slots for expansion
- Storage Interfaces: 5 × M.2 slots (one PCIe 5.0 ×4, four PCIe 4.0 ×4, some with SATA support), 4 × SATA 6 Gb/s ports supporting RAID 0/1/5/10 configurations
- Networking: Dual LAN support including Intel Killer E5000B 5 Gbps and Intel I226-V 2.5 Gbps Ethernet; integrated Wi‑Fi 7 (802.11be) and Bluetooth 5.4 connectivity
- Thunderbolt & Video Outputs: 2 × Thunderbolt 4 (USB-C) ports supporting DisplayPort 2.1, 40 Gbps, and 8K output; 1 × HDMI 2.1 and 1 × DisplayPort 1.4 for integrated GPU use
- Rear I/O & USB Ports: Includes USB4 (40 Gbps), multiple USB 10 Gbps Type-A and Type-C ports, plus USB 5 Gbps Type-A and USB 2.0 ports, BIOS FlashBack, Clear CMOS, and Smart Button controls
- Audio System:Realtek ALC1220P codec with Audio Boost 4, supporting high-quality 7.1-channel HD audio output
- Build & Cooling Features: ATX form factor (~305 × 243 mm) with high-end thermal design including heatpipes, M.2 Shield Frozr II, extended heatsinks, Smart Fan cooling, EZ M.2 and PCIe release latches, debug LEDs, and MSI AI utilities like Frozr AI Cooling and Mystic Light
This content will be shared across all product pages.
| Brand: MSI |
| CPU Compatibility: INTEL |
| Chipset: Z890 |
| Socket Type: LGA 1851 |
| Memory Type: DDR5 |
| Form Factor: ATX |
| Color: Black |
