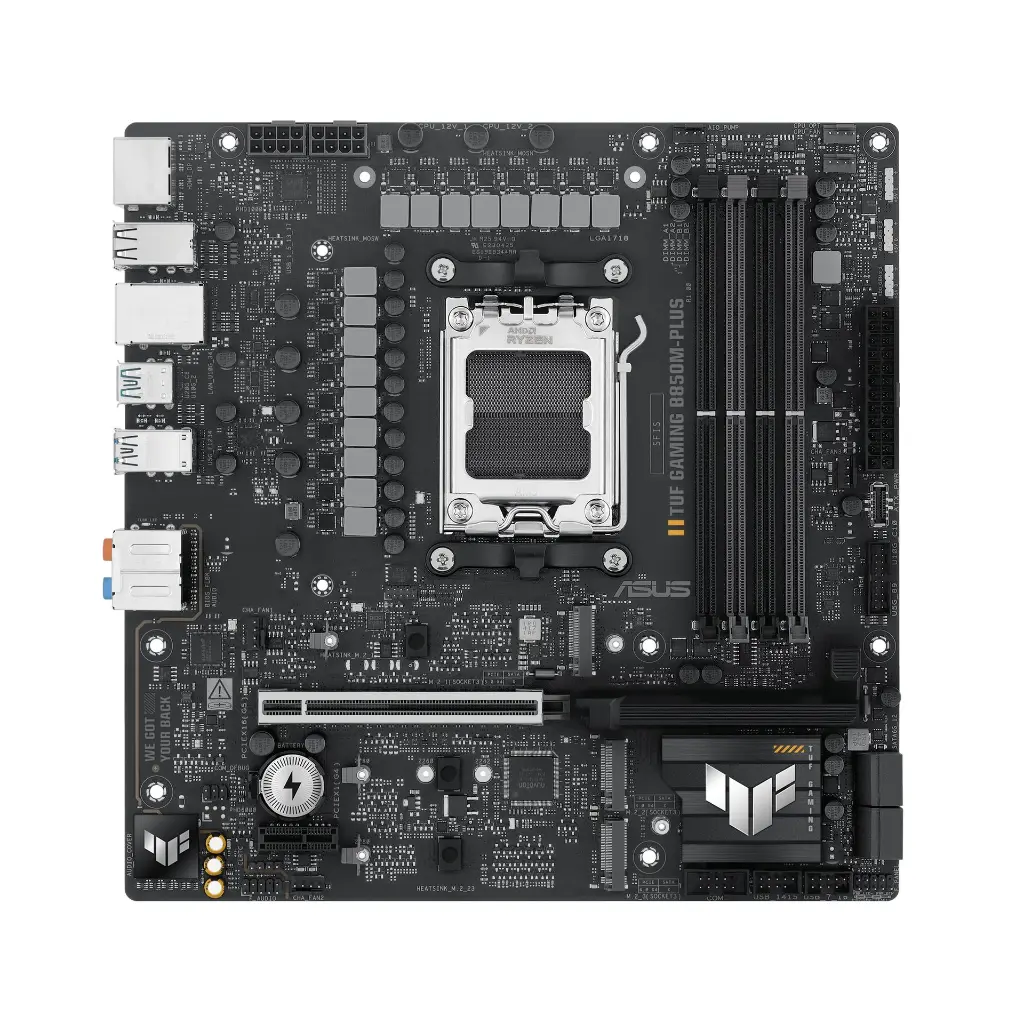

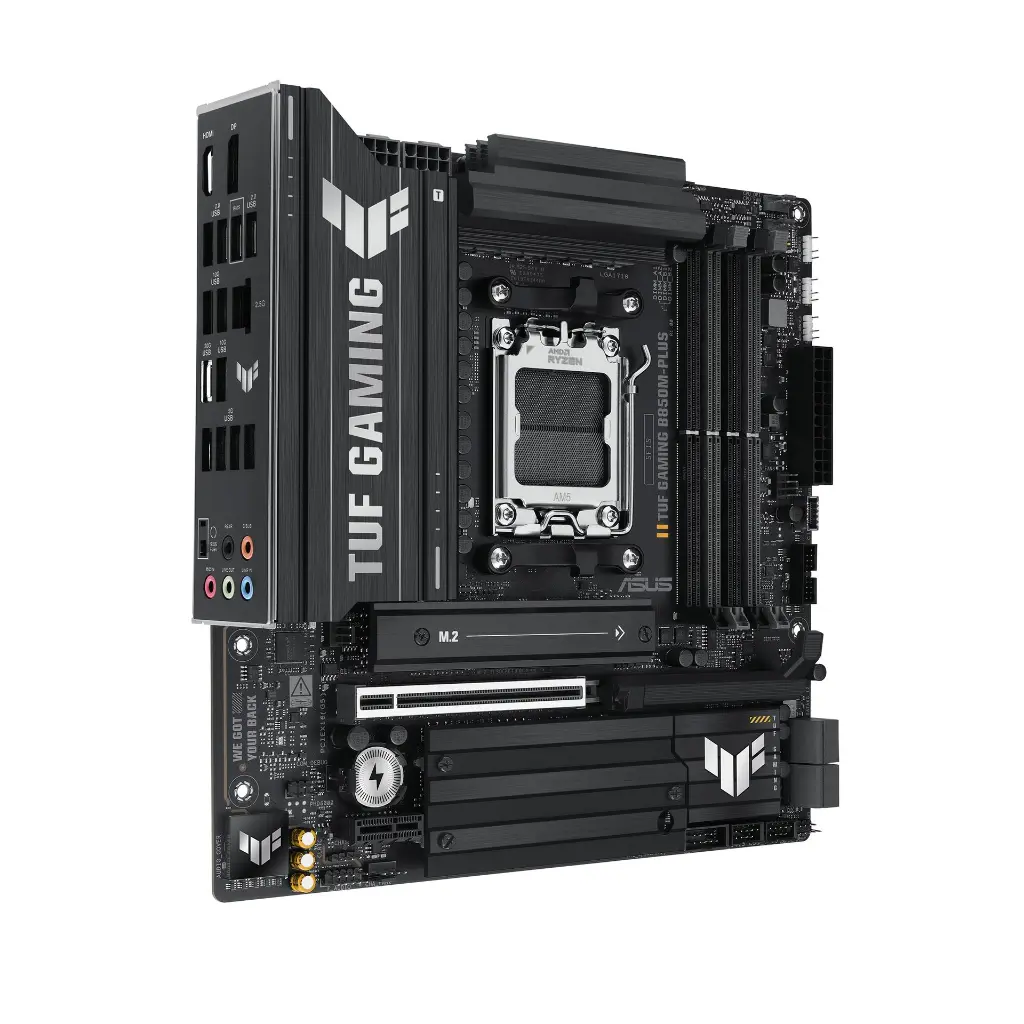

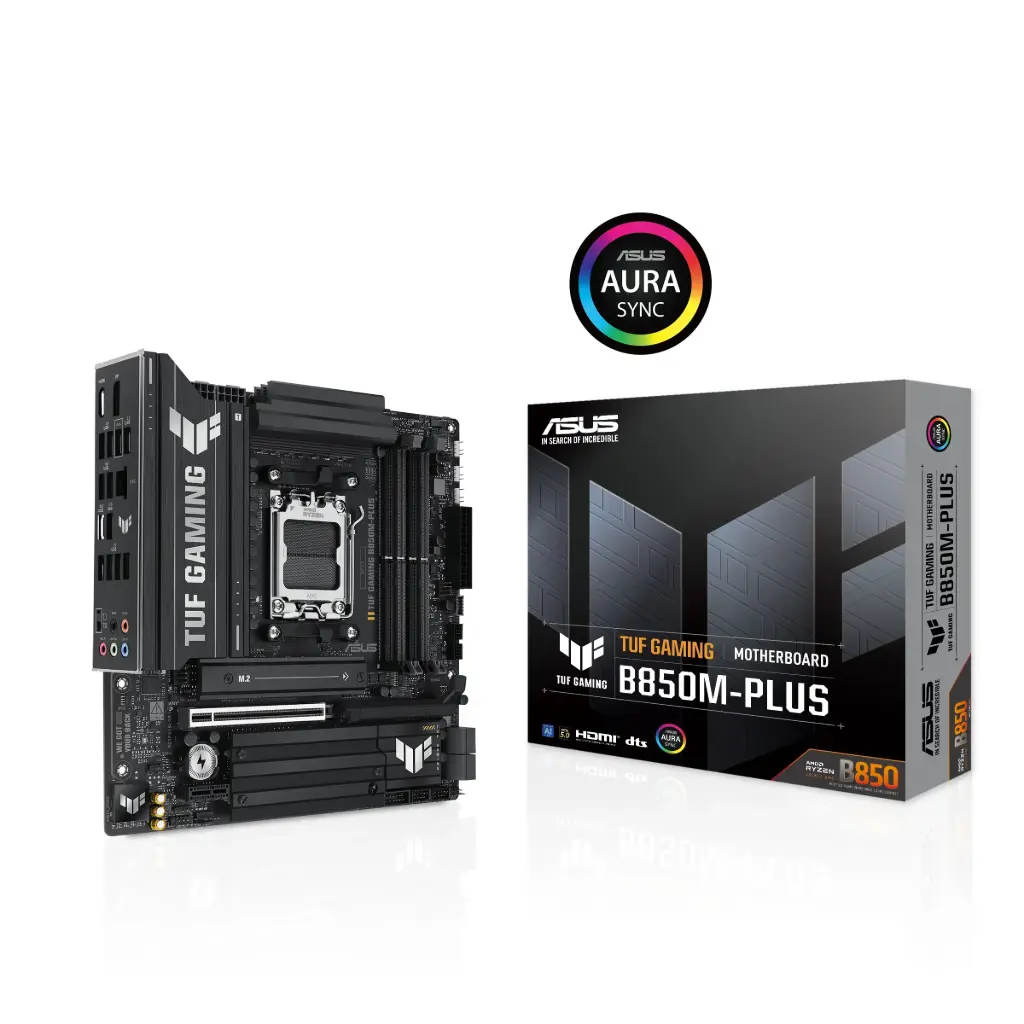

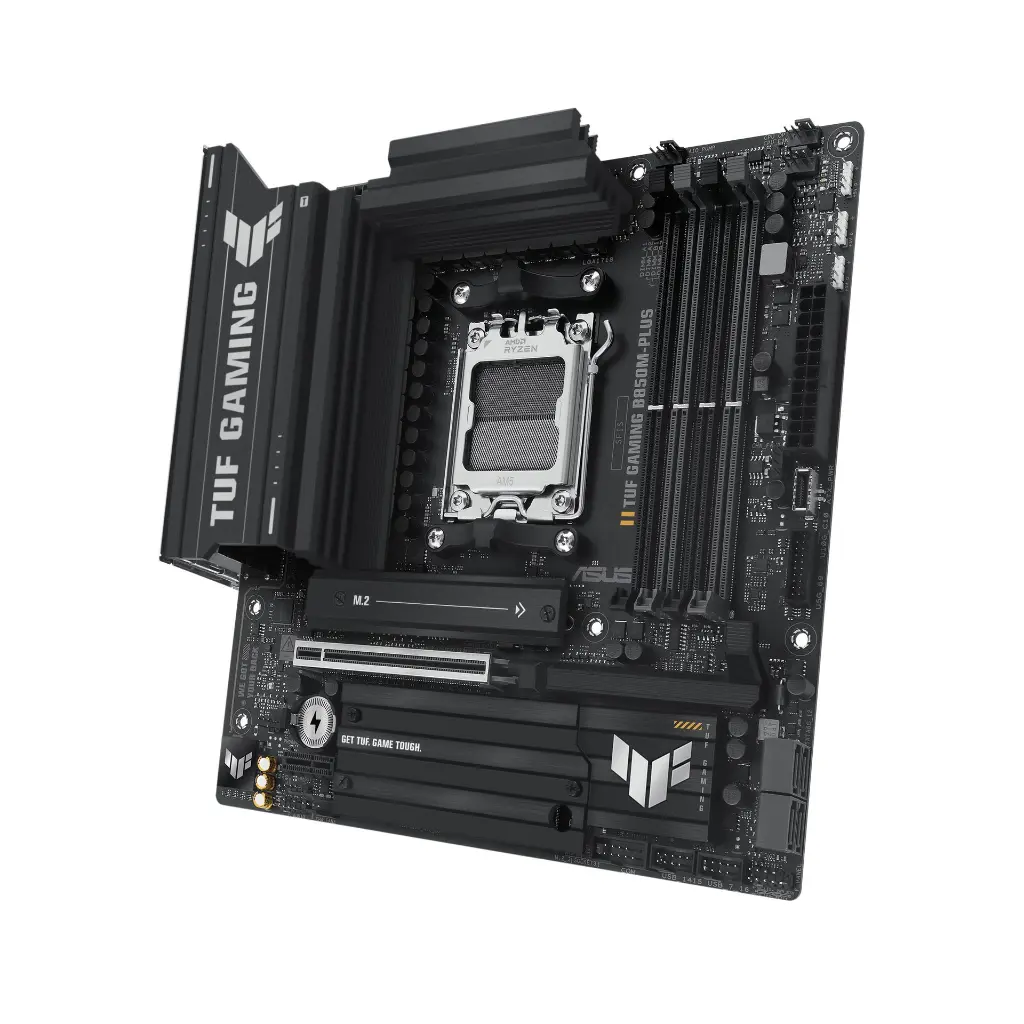

ASUS TUF GAMING B850M-PLUS AMD AM5 DDR5 PCIe 5.0 MICRO-ATX
- CPU Compatibility: Supports AMD Ryzen™ 7000, 8000 & 9000 Series processors using the AM5 socket with the AMD B850 chipset, providing strong platform compatibility.
- Power Delivery & VRM Design: Features a robust 14+2+1 power stage design, each rated at 80A, with ProCool II connectors, alloy chokes, and premium capacitors for stable power delivery and reliability.
- Memory Support: Four DIMM slots supporting up to 256 GB DDR5 memory, with overclocking up to DDR5‑8000+ MT/s via AEMP II and EXPO™ profiles.
- Expansion Slot: Includes 1 × PCIe 5.0 ×16 SafeSlot (CPU-connected) and 1 × PCIe 4.0 ×16 slot for graphics and expansion cards.
- Storage Configuration: Supports 3 × M.2 slots (1 × PCIe 5.0 ×4, 2 × PCIe 4.0 ×4) with dedicated heatsinks, plus 4 × SATA 6 Gb/s ports.
- Networking: Integrated Realtek 2.5 Gb Ethernet and built-in Wi-Fi 6E (802.11ax) with Q-Antenna for high-speed, low-latency networking.

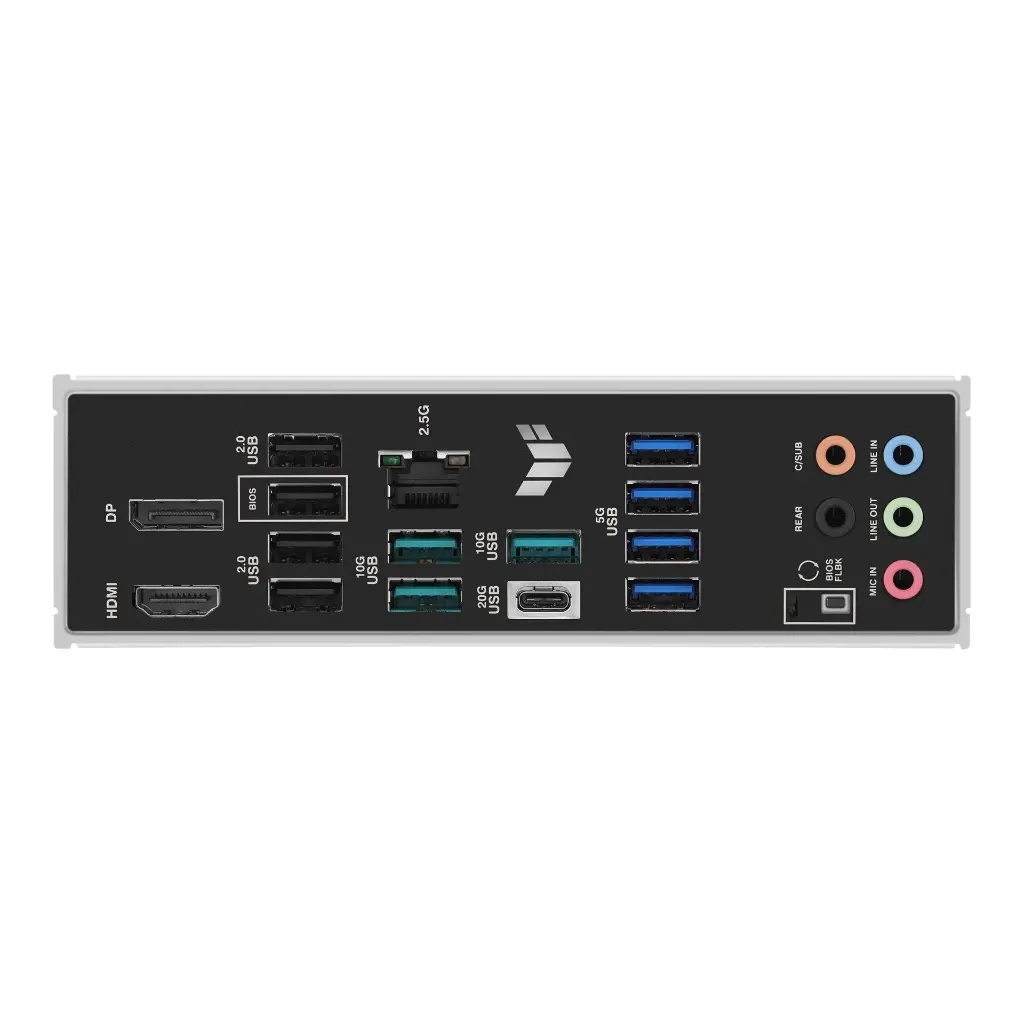

- High-Speed USB Connectivity: Rear I/O offers 1 × USB 20 Gbps Type‑C, 1 × USB 10 Gbps Type‑C, multiple USB 10 Gbps Type‑A ports, plus USB 5 Gbps and 2.0 ports, with internal headers.
- Display & I/O Features: Equipped with DisplayPort and HDMI® 2.1 outputs, PS/2 combo port, and 5× audio jacks for versatile connectivity.
- Audio System: Uses Realtek ALC1220P codec with premium capacitors and EMI shielding for immersive and clear audio.
- Cooling & DIY Features: Includes VRM and M.2 heatsinks, multiple fan headers, AIO pump header, Aura Sync RGB header, and a pre-mounted I/O shield for easy installation and cooling management.
This content will be shared across all product pages.
| Brand: ASUS |
| CPU Compatibility: AMD |
| Chipset: B850M-PLUS |
| Socket Type: AM5 |
| Memory Type: DDR5 |
| Form Factor: Micro-ATX |
| Color: Black |
