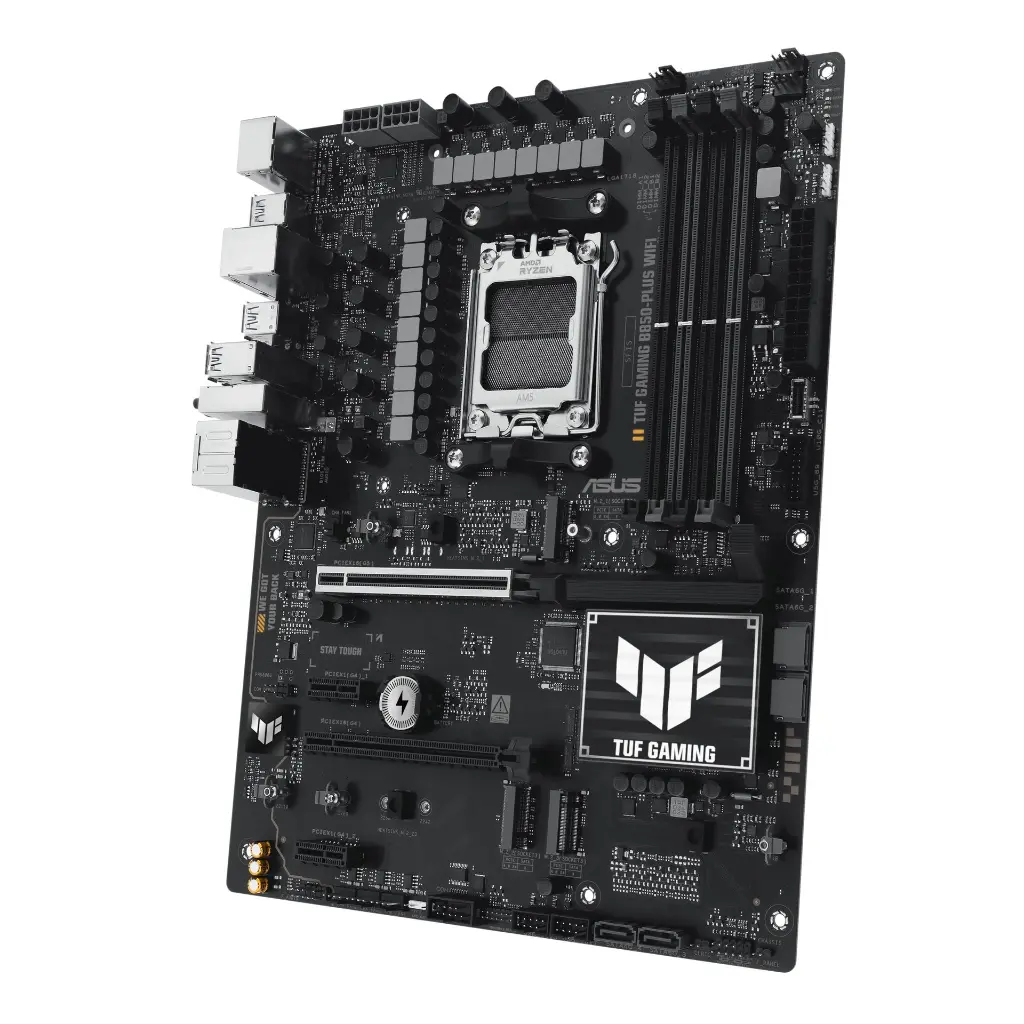

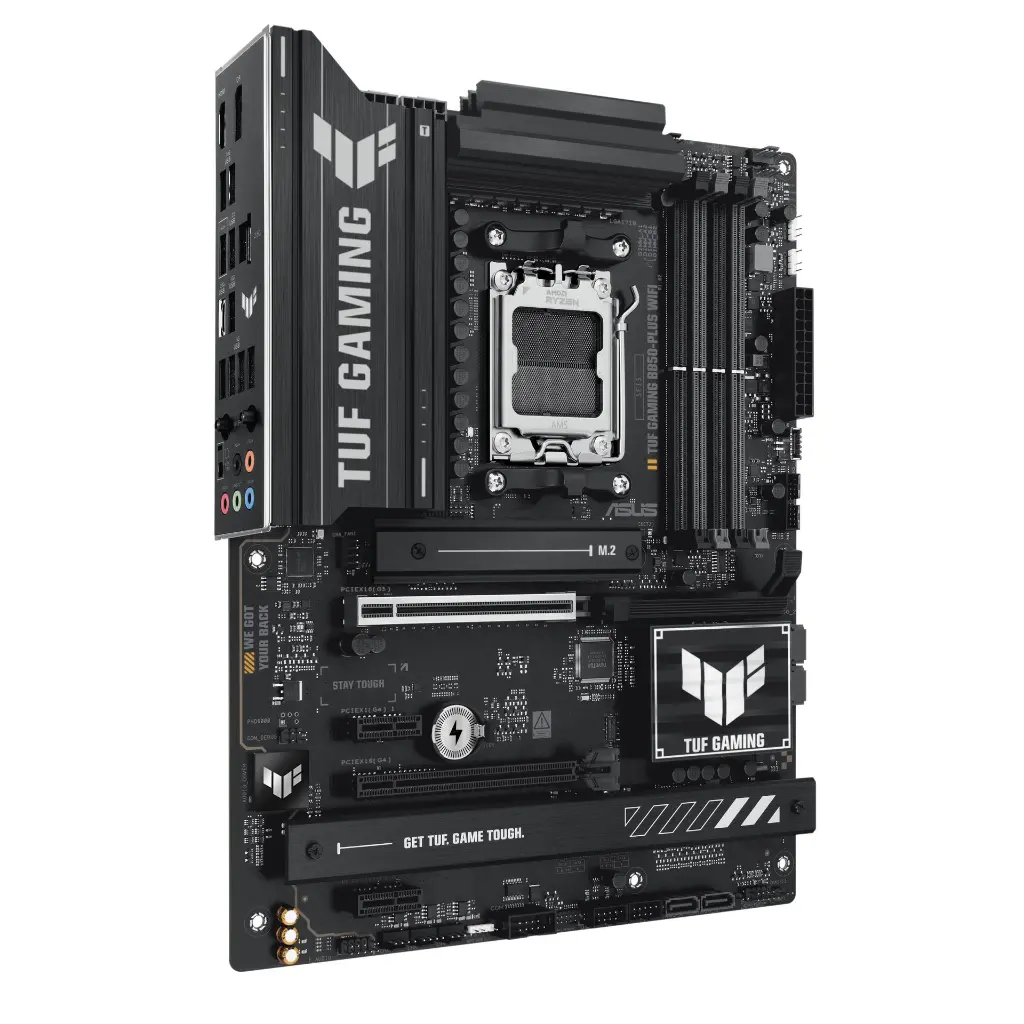

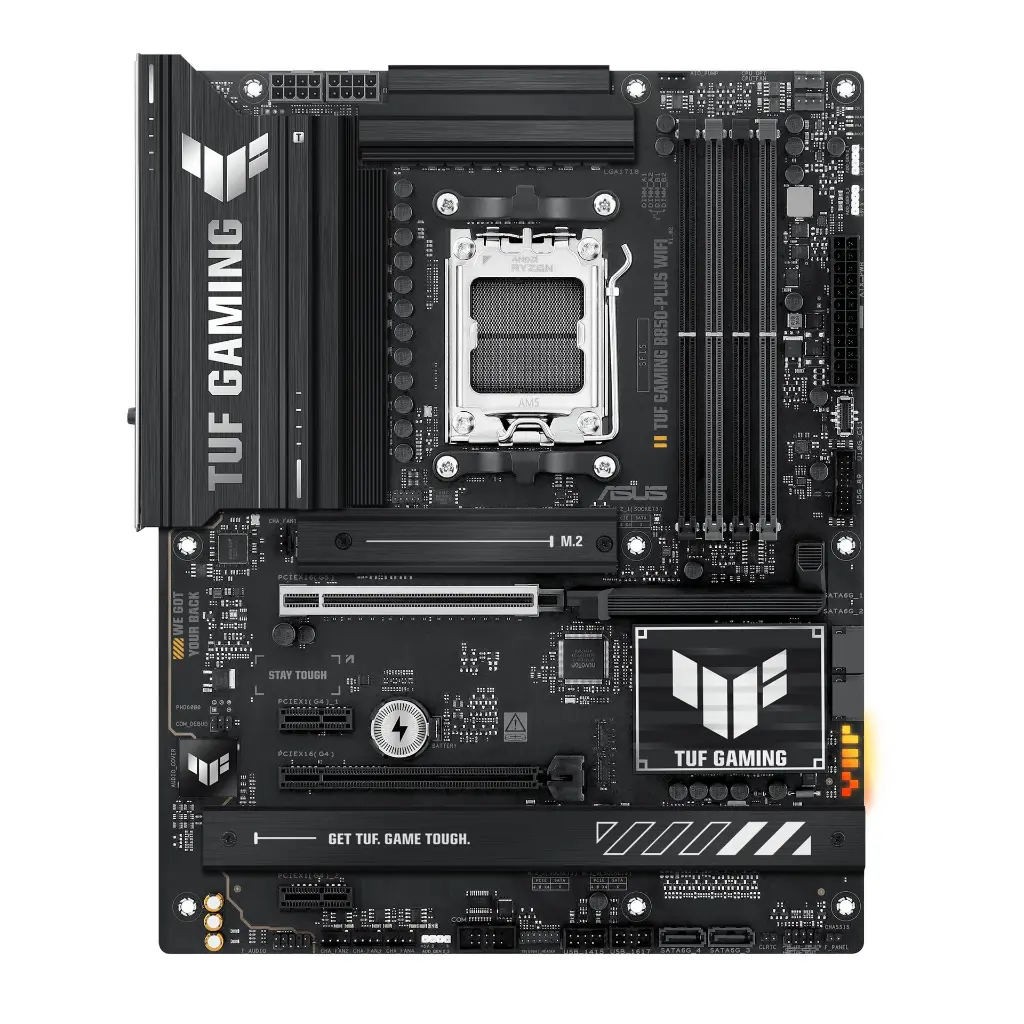

ASUS TUF GAMING B850-PLUS WIFI AMD AM5 DDR5 PCIe 5.0 ATX
- CPU Compatibility: Supports AMD Socket AM5 for Ryzen™ 7000, 8000, and 9000 desktop processors
- Chipset & Power Design: AMD B850 chipset with 14 + 2 + 1 power stages delivering 80 A per phase on an 8-layer PCB for stable power
- Memory Support: 4 × DDR5 DIMM slots supporting up to 192 GB RAM, overclocking up to 8000+ MT/s via EXPO™ and ASUS AEMP
- Expansion Slots: 1 × PCIe 5.0 ×16 SafeSlot (CPU-connected), 1 × PCIe 4.0 ×16 (×4 mode), 2 × PCIe 4.0 ×1 slots
- Storage Options: 3 × M.2 slots — M.2_1 PCIe 5.0 ×4, M.2_2 & M.2_3 PCIe 4.0 ×4 (third shares bandwidth with PCIe slot), plus 4 × SATA 6 Gb/s ports with RAID 0/1/5/10 support depending on CPU
- Networking: Realtek 2.5 Gb Ethernet with TUF LANGuard protection, integrated Wi‑Fi 7 (802.11be) with MLO support on 2.4/5/6 GHz, Bluetooth 5.4

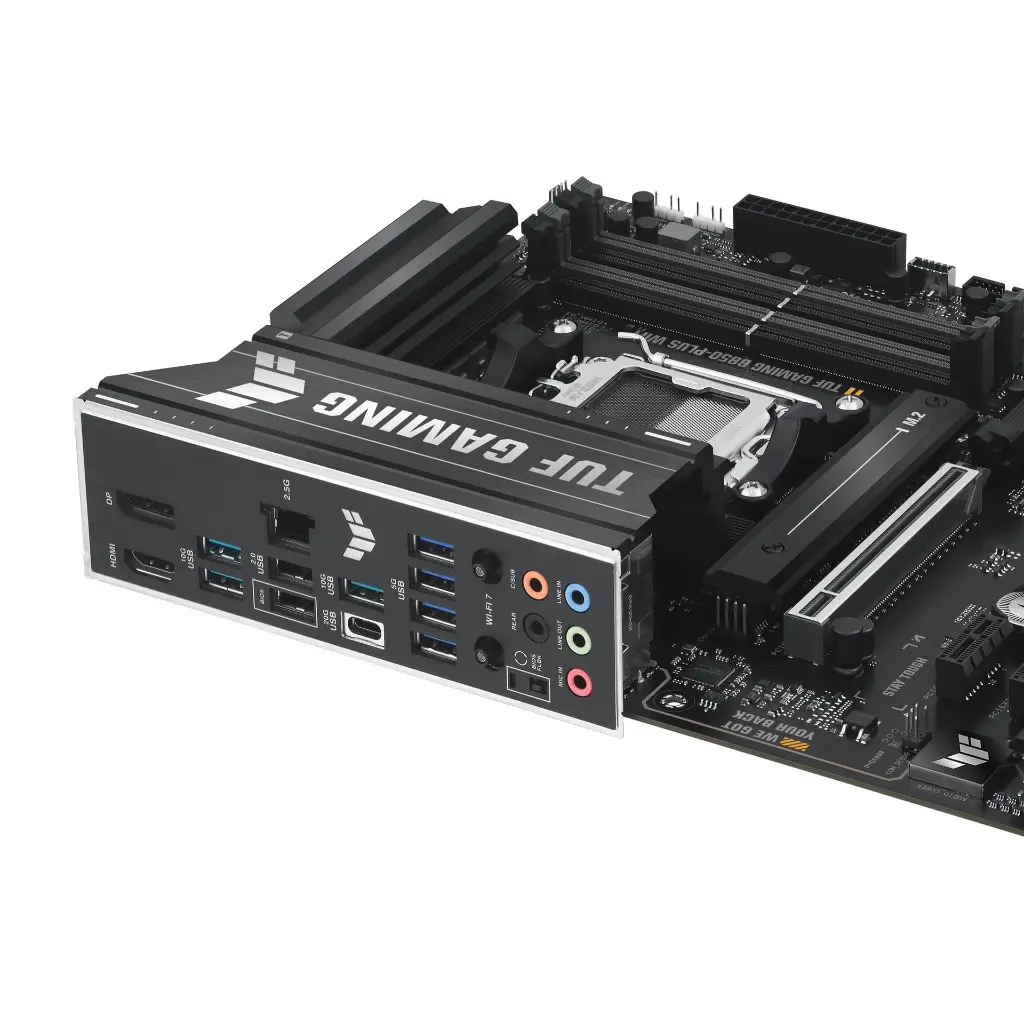

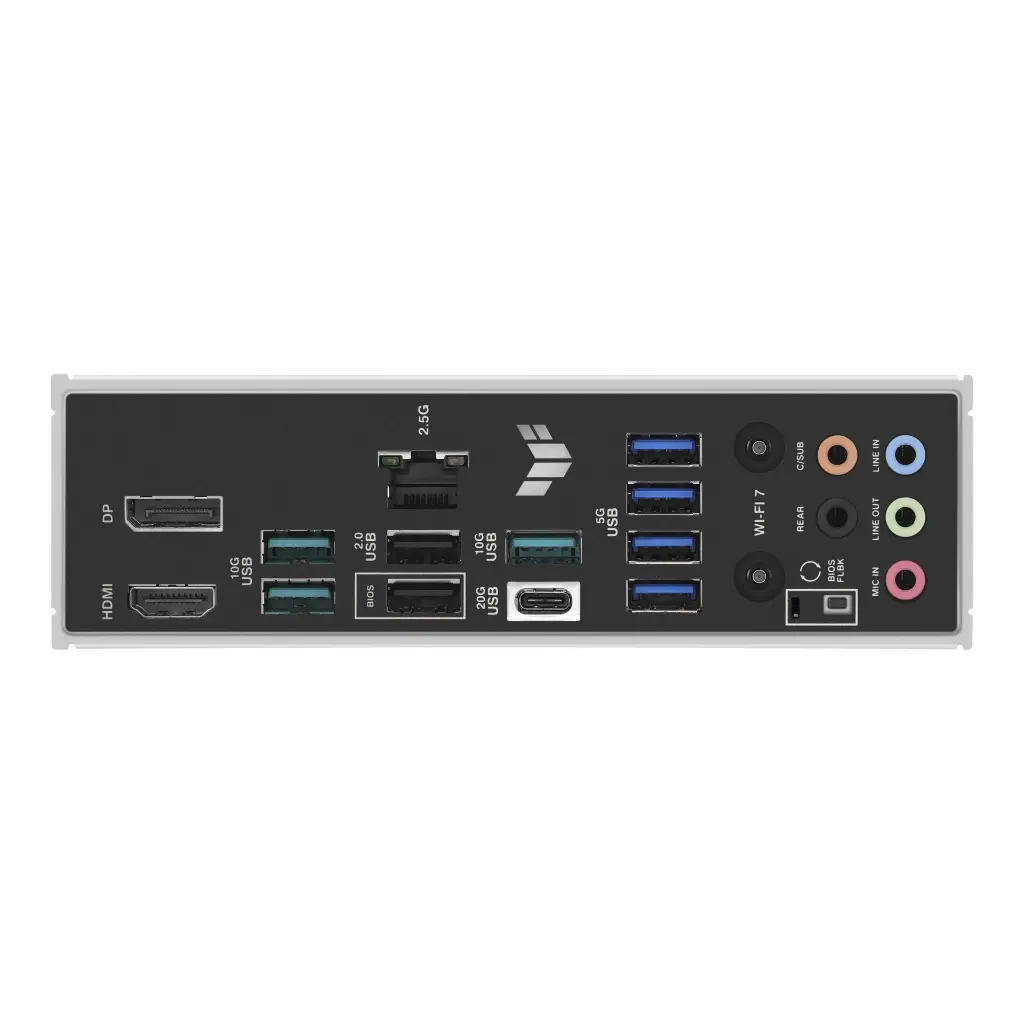

- Rear USB & I/O Ports: 1 × USB 20 Gbps Type-C®, 3 × USB 10 Gbps Type-A, 4 × USB 5 Gbps Type-A, 2 × USB 2.0, 1 × DisplayPort 1.4, 1 × HDMI 2.1, Thunderbolt (USB4) header support, BIOS FlashBack™ button with LED
- Audio System: Realtek ALC1220P codec with DTS Audio Processing, audio shielding, premium capacitors, isolated PCB layers, and de-pop protection circuitry
- Cooling & DIY Features: Enlarged VRM, chipset, and 3 × M.2 heatsinks; hybrid fan headers (CPU, CPU_OPT, water-pump, chassis); pre-mounted I/O shield; Q-Release PCIe, M.2 Q-Latch, Q-Antenna, Q-LED diagnostics, Aura Sync RGB; ASUS 5X Protection III (DIGI+ VRM, SafeSlot Core+, LANGuard, overvoltage protection, stainless steel I/O)
- Form Factor & Dimensions: Standard ATX, approx. 12.00 × 9.61 in (305 × 244 mm), weight ~1.32 kg
This content will be shared across all product pages.
| Brand: ASUS |
| CPU Compatibility: AMD |
| Chipset: B850-PLUS |
| Socket Type: AM5 |
| Memory Type: DDR5 |
| Form Factor: ATX |
| Color: Black |
