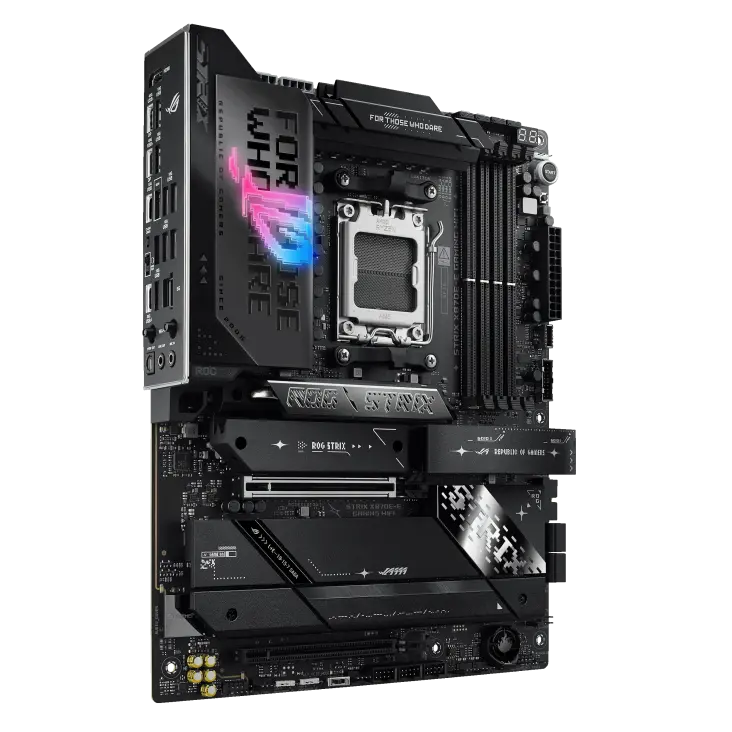

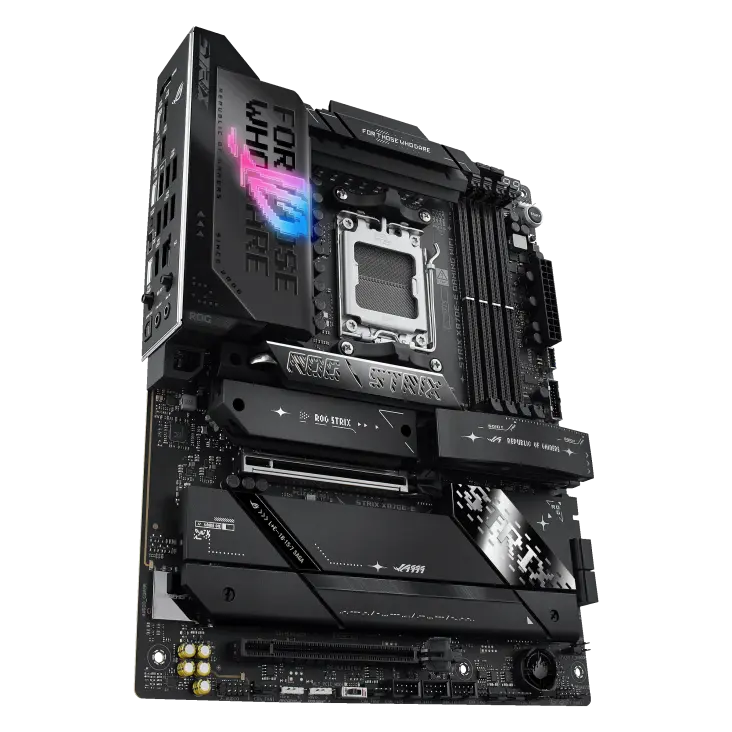

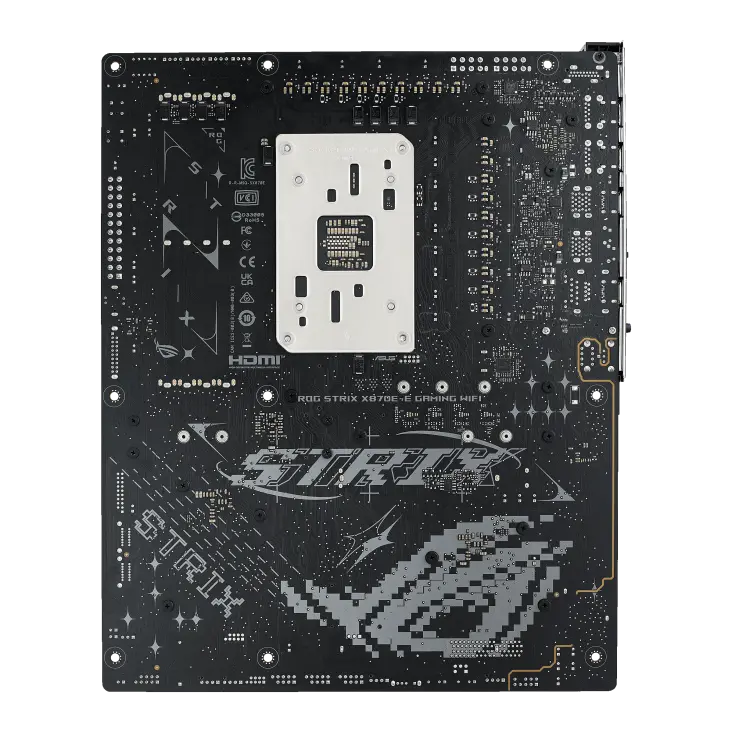

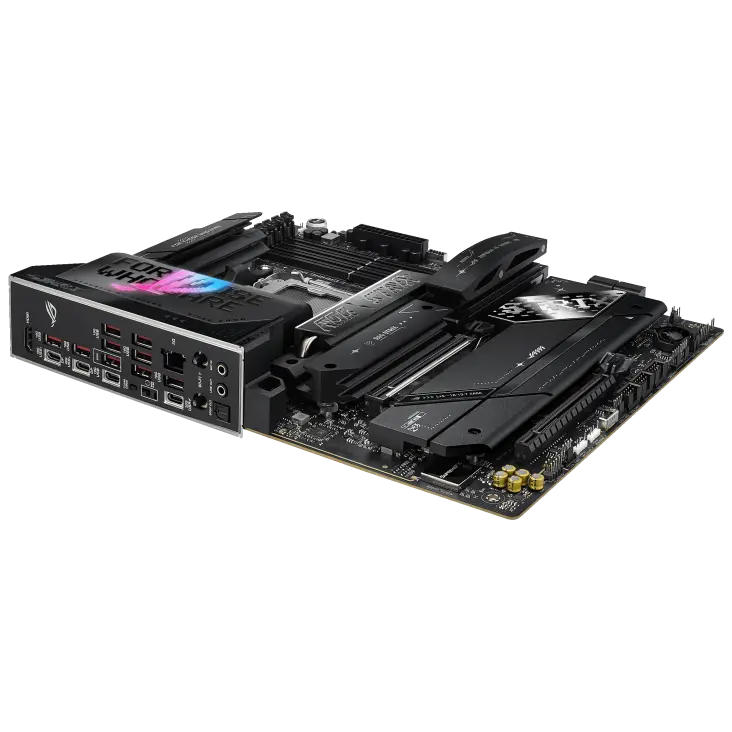

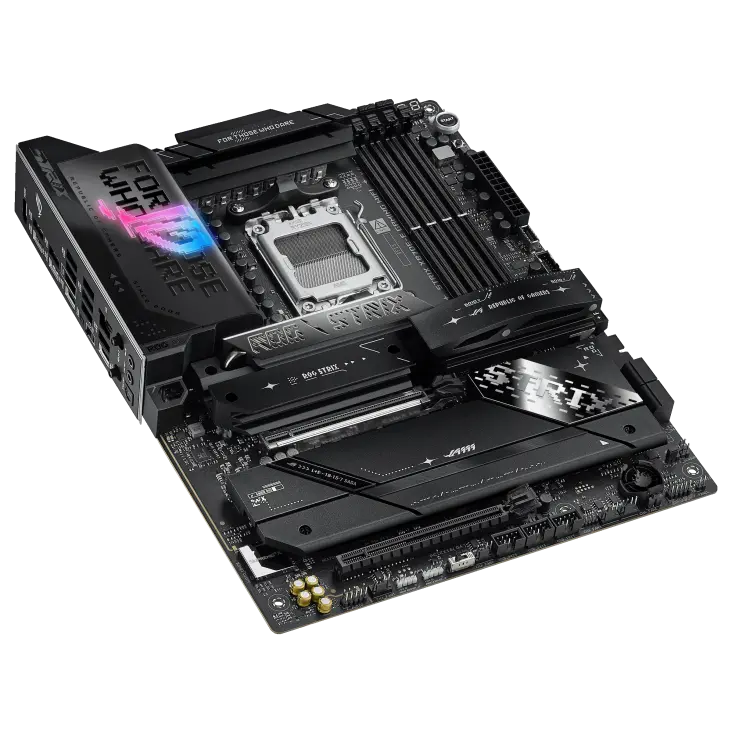

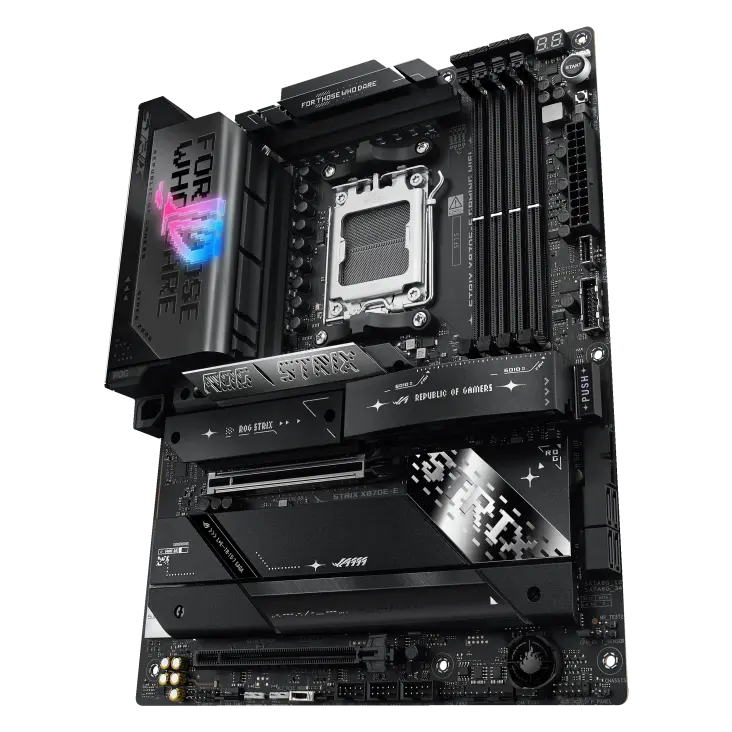

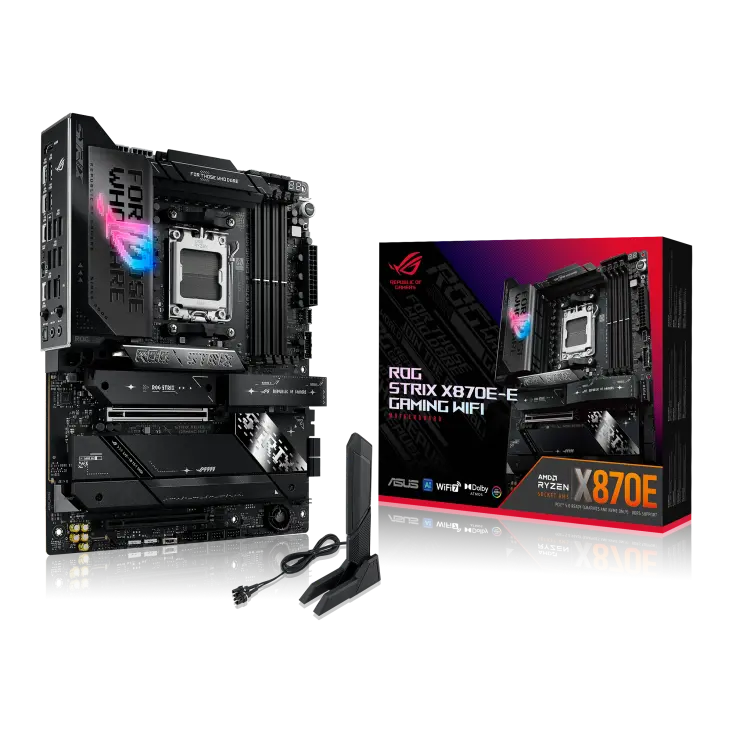

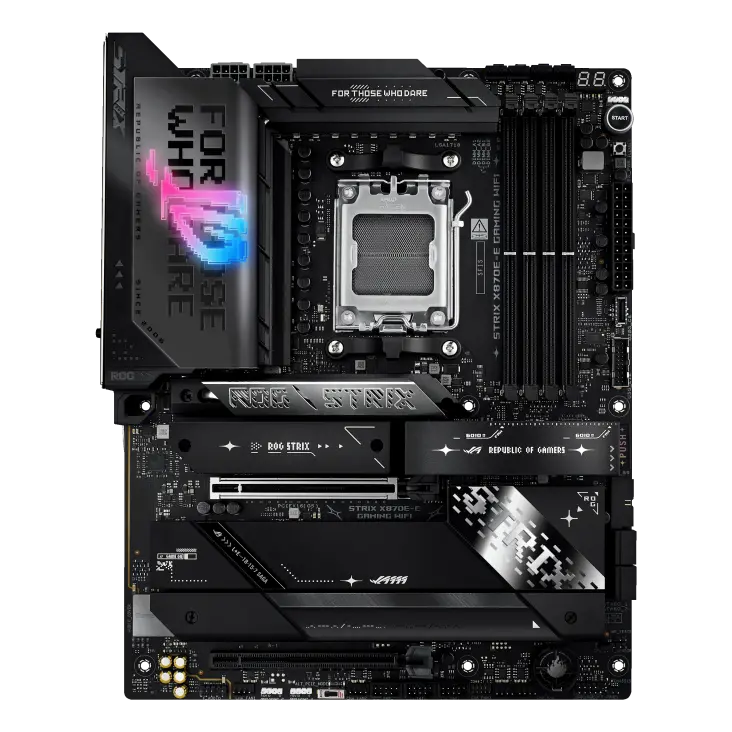

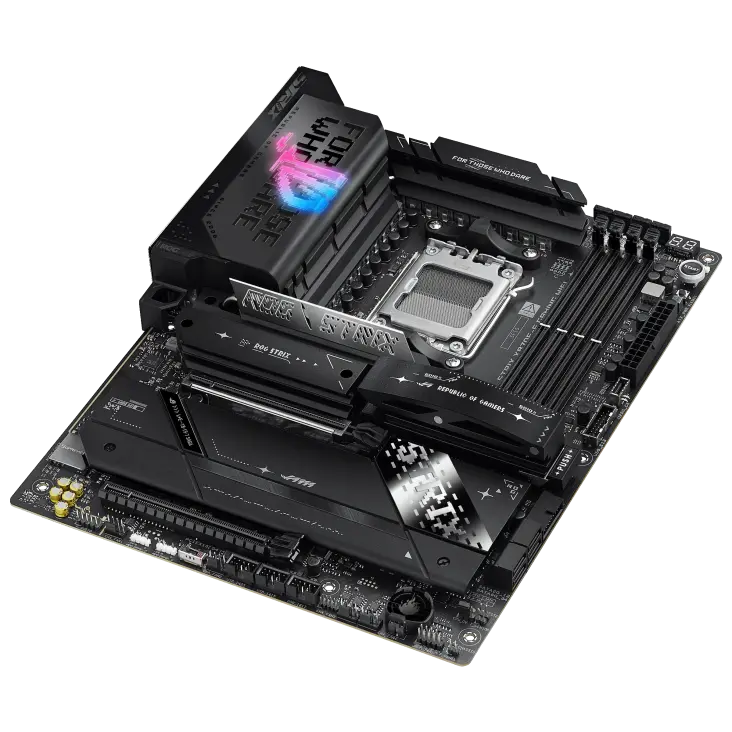

ASUS ROG STRIX X870E-E GAMING WIFI AMD AM5 DDR5 PCIe 5.0 ATX
- Model: ASUS ROG STRIX X870E-E GAMING WIFI
- Part Number: 90MB1IB0-M0EAY0
- Form Factor: ATX (305 × 244 mm)
- CPU Compatibility: Supports AMD Ryzen™ 7000, 8000 & 9000 Series desktop processors with AM5 socket
- Chipset & Power Delivery: AMD X870E chipset featuring a robust 14 + 2 + 1 power stage design, each stage rated 80 A DrMOS, with ProCool II connectors and premium alloy chokes for stable and efficient power delivery
- Memory Support: 4 × DDR5 DIMM slots supporting up to 128 GB total memory, overclockable up to DDR5-7200+ MT/s, compatible with AMD EXPO™ and ASUS AEMP profiles
- Expansion Slots:
1 × PCIe 5.0 ×16 SafeSlot (CPU-connected, full ×16 bandwidth)
1 × PCIe 4.0 ×16 slot (operates at ×4 mode)
1 × PCIe 4.0 ×1 slot for additional expansion cards
- Storage Options:
4 × M.2 slots (1 × PCIe 5.0 ×4 from CPU, 3 × PCIe 4.0 ×4/SATA from chipset)
4 × SATA 6 Gb/s ports supporting RAID 0/1/5/10 arrays
- Networking:
Intel Wi-Fi 6E (802.11ax) and Bluetooth 5.2 for wireless connectivity
Realtek 2.5 Gb Ethernet LAN for high-speed wired networking

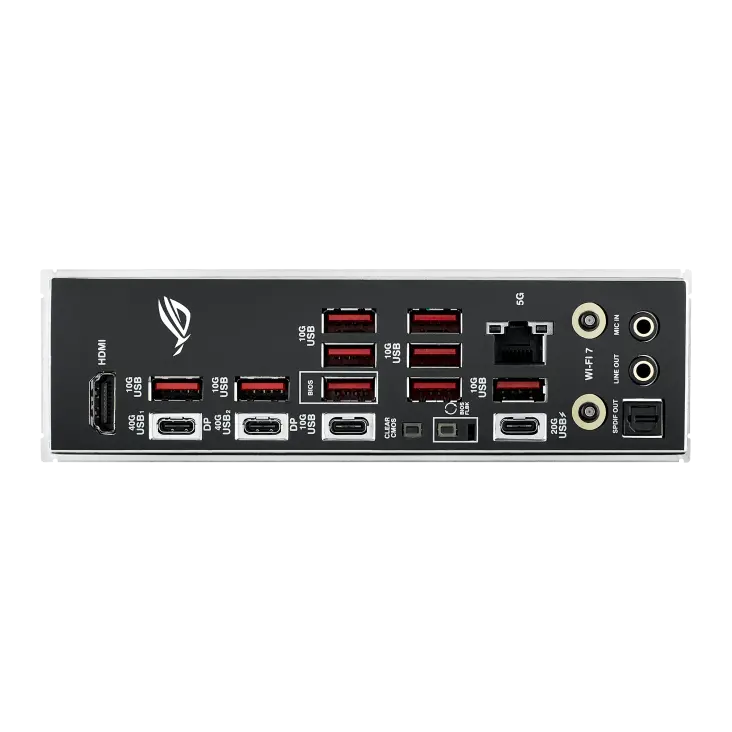

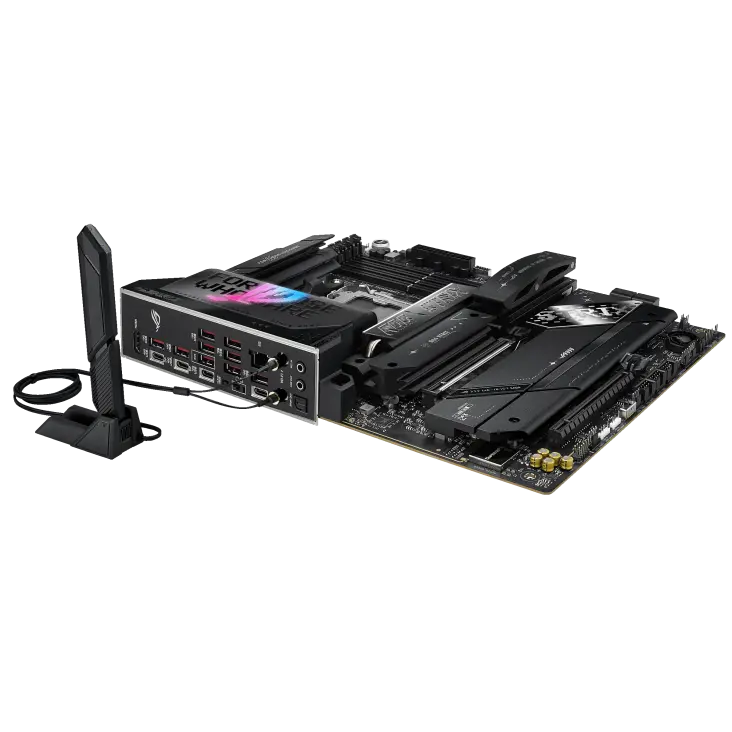

- USB & Rear I/O:
USB4 Type-C port (40 Gbps) with DisplayPort Alternate Mode
Multiple USB 10 Gbps Type-A and Type-C ports
USB 5 Gbps and USB 2.0 ports
BIOS FlashBack™ and Clear CMOS buttons for easy troubleshooting
- Audio:
High-fidelity 7.1-channel HD audio powered by Realtek ALC4080 codec with premium capacitors and audio shielding for minimal interference
- Cooling & Build Features:
Extensive VRM heatsinks with heat pipe for superior thermal performance
M.2 heatsinks and chipset fan for efficient cooling
ASUS AI Cooling, Q-Latch system, Debug LEDs, and pre-mounted I/O shield
Aura Sync RGB lighting support for customizable aesthetics
