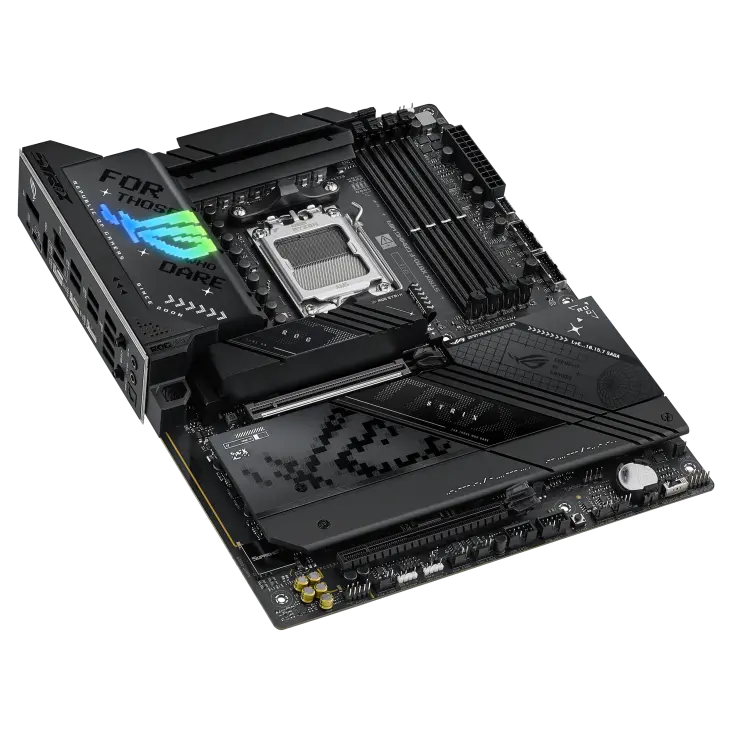

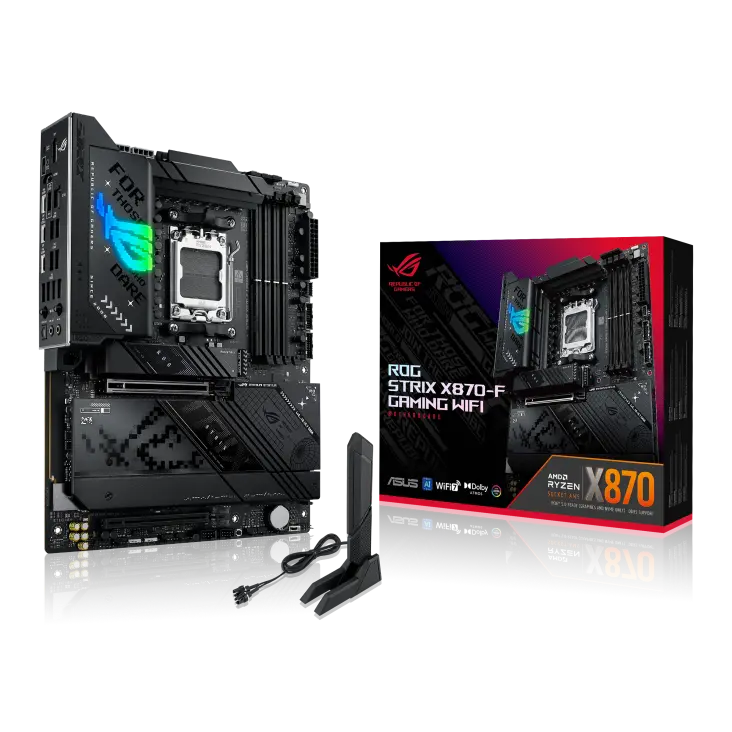

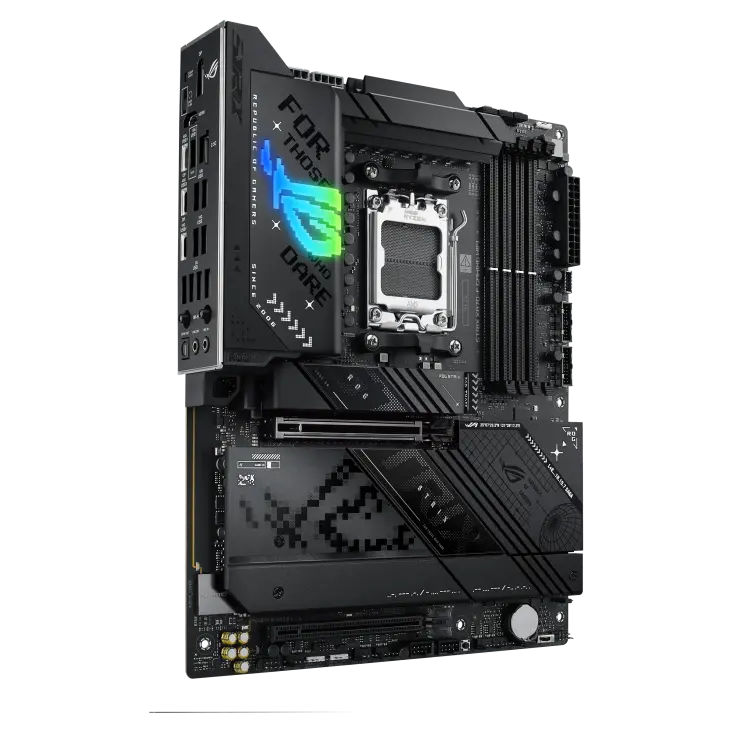

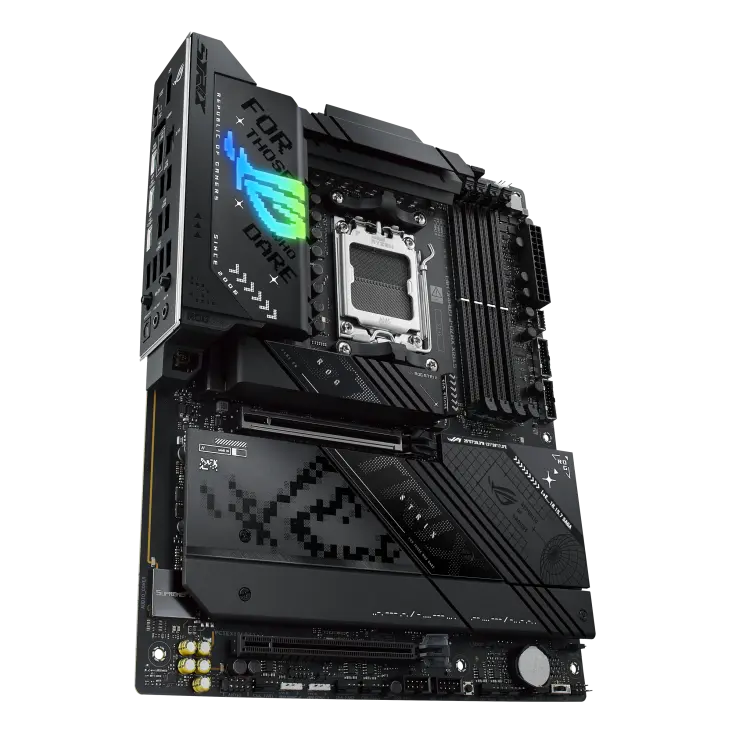

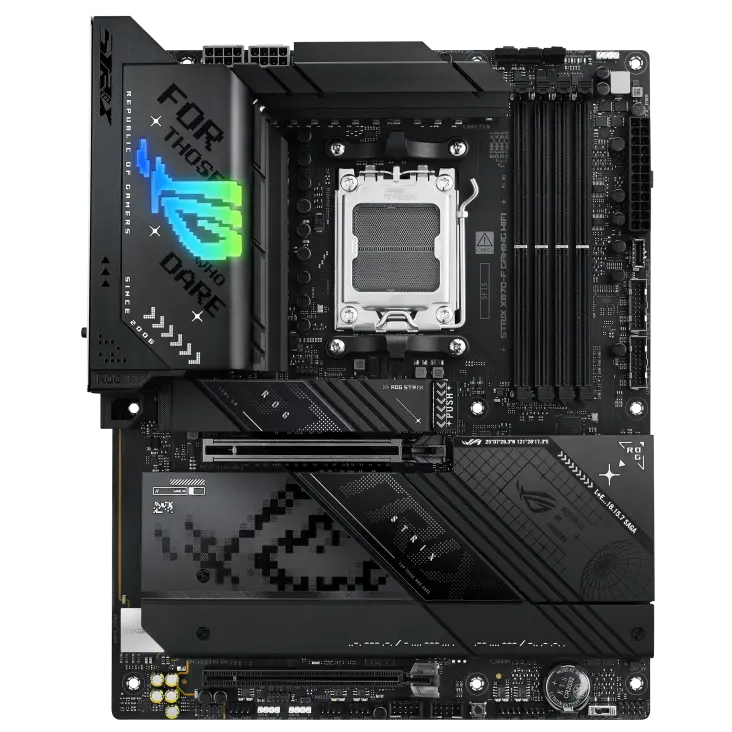

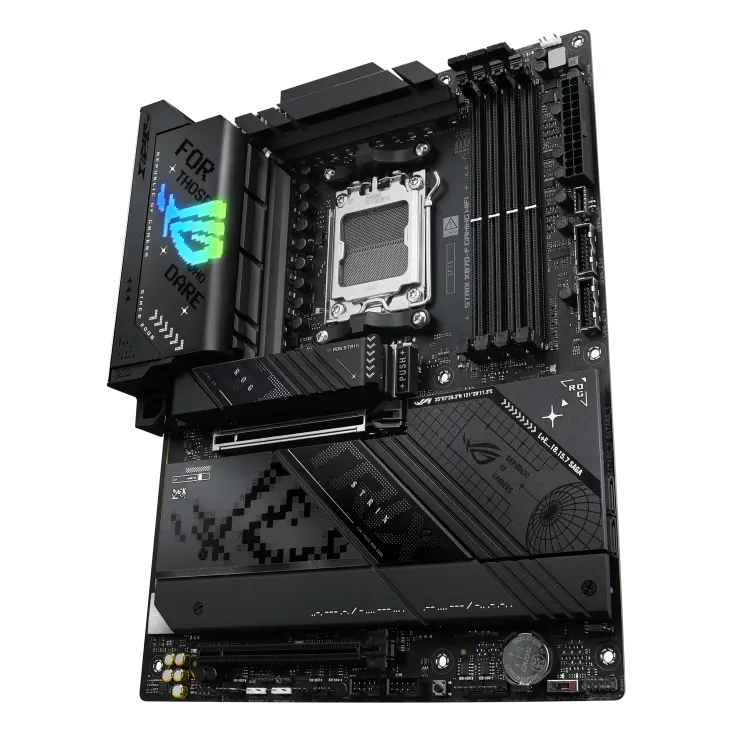

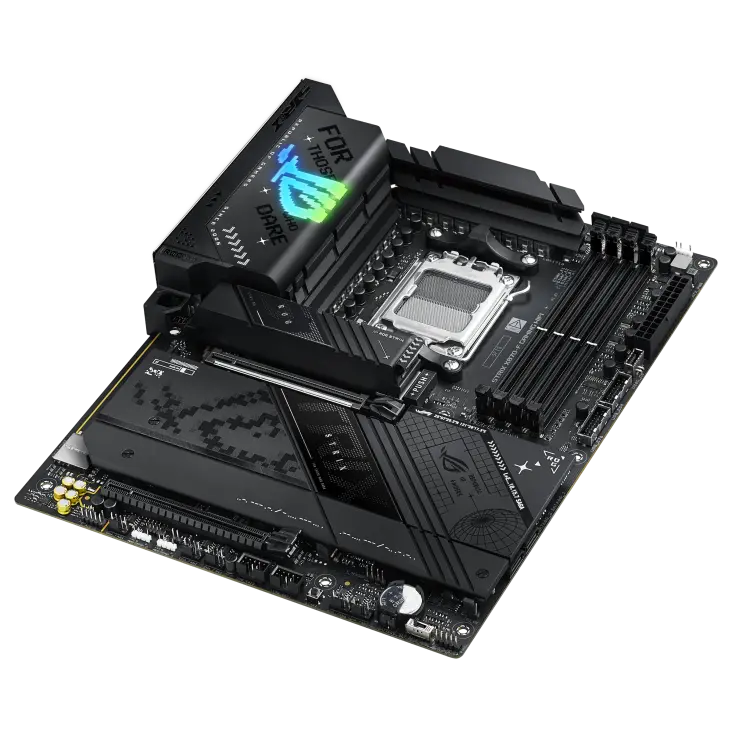

ASUS ROG STRIX X870-F GAMING WIFI AMD AM5 DDR5 PCIe 5.0 ATX
- Model: ASUS ROG STRIX X870-F GAMING WIFI
- Part Number: 90MB1IV0-M0EAY0
- Form Factor: ATX (305 × 244 mm)
- CPU Compatibility: Supports AMD Ryzen™ 7000, 8000 & 9000 Series desktop processors using the AM5 socket
- Chipset & Power Delivery: AMD X870 chipset featuring a 16 + 2 + 1 power stage design, each stage rated at 80 A DrMOS, with ProCool II connectors and premium alloy chokes for reliable and stable power delivery
- Memory Support: 4 × DDR5 DIMM slots supporting up to 192 GB RAM, overclockable up to DDR5-8000+ MT/s using AMD EXPO™ and ASUS AEMP profiles
- Expansion Slots:
1 × PCIe 5.0 ×16 SafeSlot (CPU-connected, full ×16 lanes)
3 × PCIe 4.0 ×16 slots (operate at ×1 mode depending on configuration)
- Storage Interfaces:
4 × M.2 slots (1 × PCIe 5.0 ×4, 2 × PCIe 4.0 ×4, 1 × PCIe 3.0 ×2)
2 × SATA 6 Gb/s ports with RAID 0/1/5/10 support
- Networking:
Realtek 2.5 Gb Ethernet LAN
Wi-Fi 7 (802.11be) and Bluetooth 5.4 via onboard module

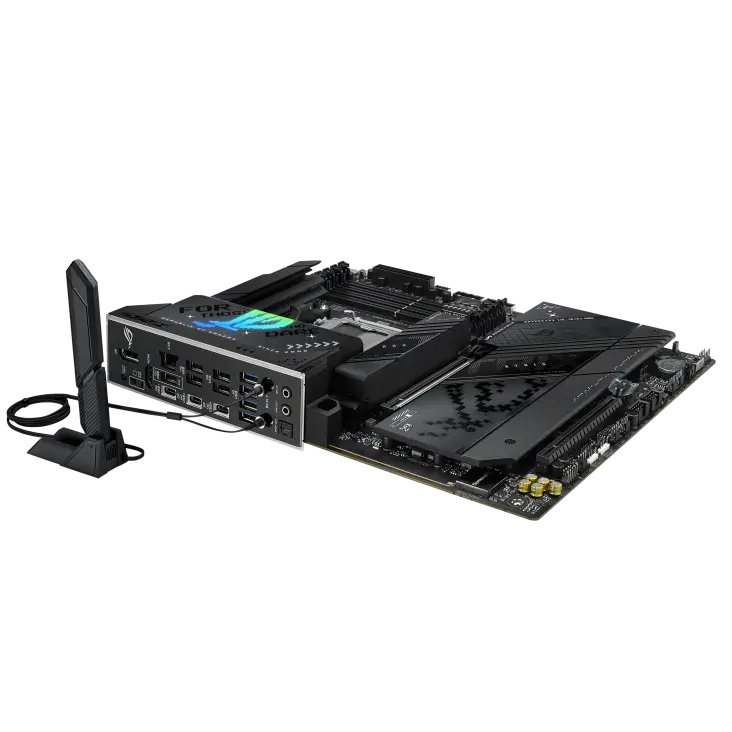

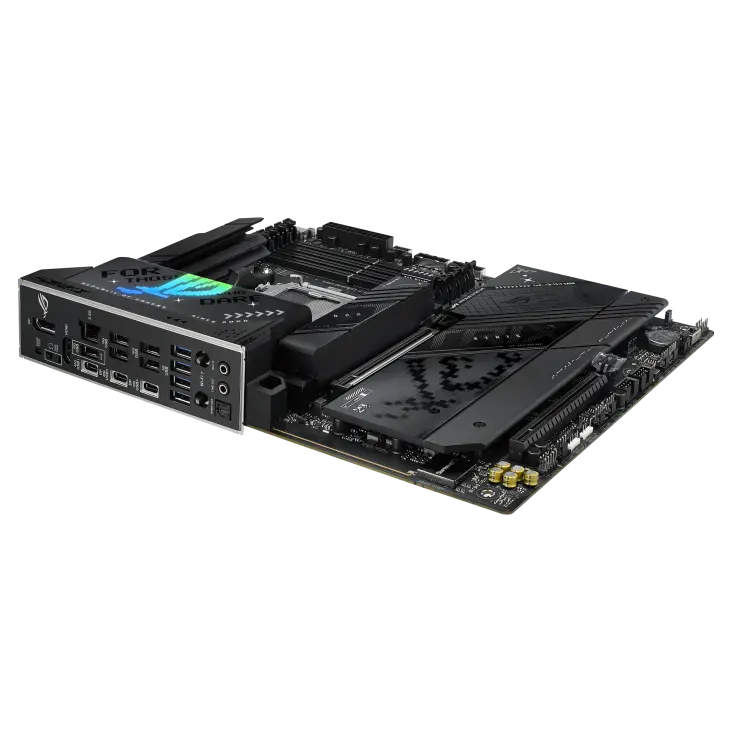

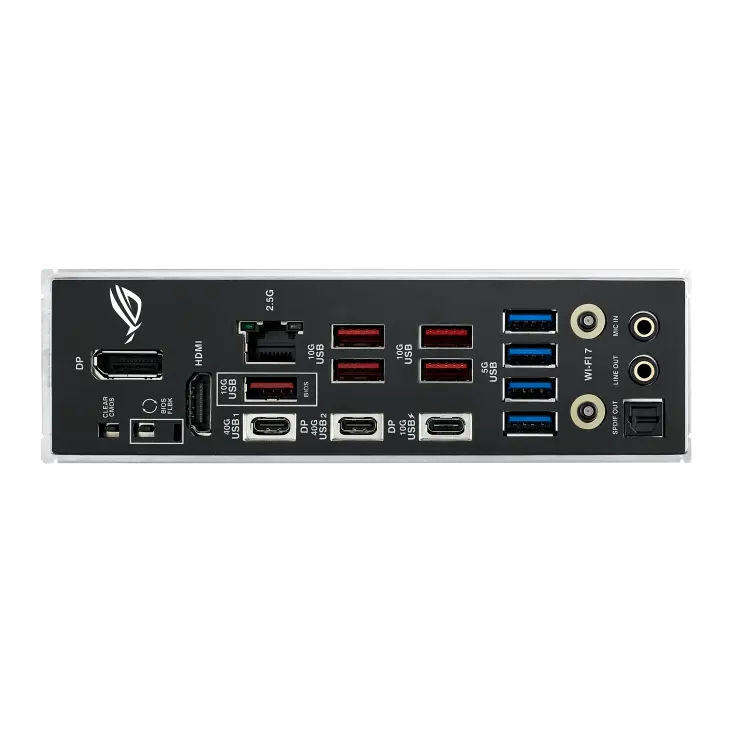

- USB & Rear I/O:
2 × USB4 Type-C ports (40 Gbps) with DisplayPort Alt Mode support
Additional USB 10 Gbps Type-A and Type-C ports
USB 5 Gbps and USB 2.0 ports
BIOS FlashBack™ button and pre-mounted I/O shield
- Display Outputs:
1 × HDMI 2.1 port
USB4-based DisplayPort support (via adapters), up to 8K resolution
- Audio:
Realtek 7.1-channel HD audio codec with shielding and premium capacitors for high fidelity sound
- Cooling & Build Features:
VRM heatsinks with heatpipe cooling
M.2 heatshields and chipset fan
Hybrid fan headers (CPU, CPU_OPT, AIO, chassis)
ASUS 5X Protection III (DIGI+ VRM, SafeSlot Core+, LANGuard, overvoltage protection, stainless steel I/O)
Aura Sync RGB lighting and DIY-friendly features like Q-Latch, Q-Release, Q-LED diagnostics
This content will be shared across all product pages.
| Brand: ASUS |
| CPU Compatibility: AMD |
| Chipset: X870-F |
| Socket Type: AM5 |
| Memory Type: DDR5 |
| Form Factor: ATX |
| Color: Black |
