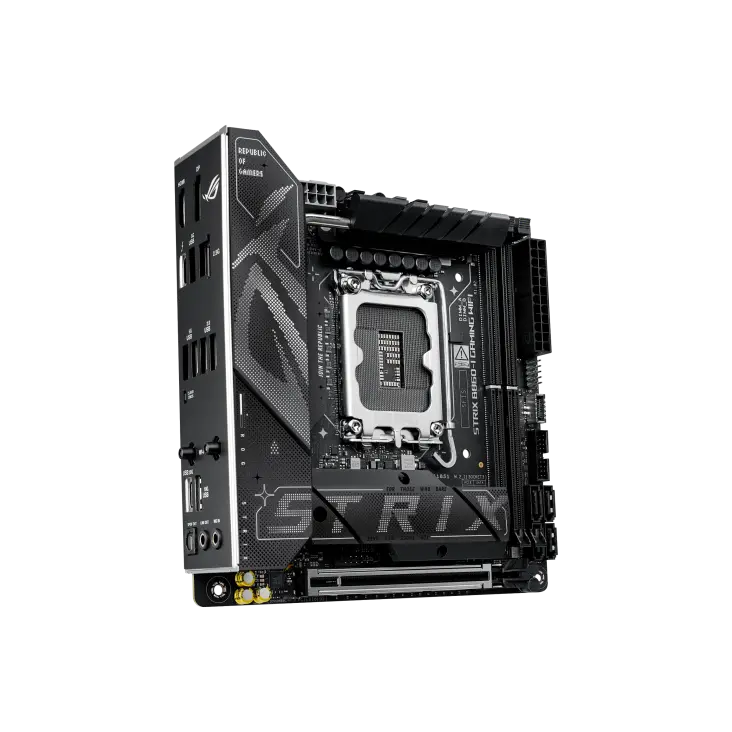

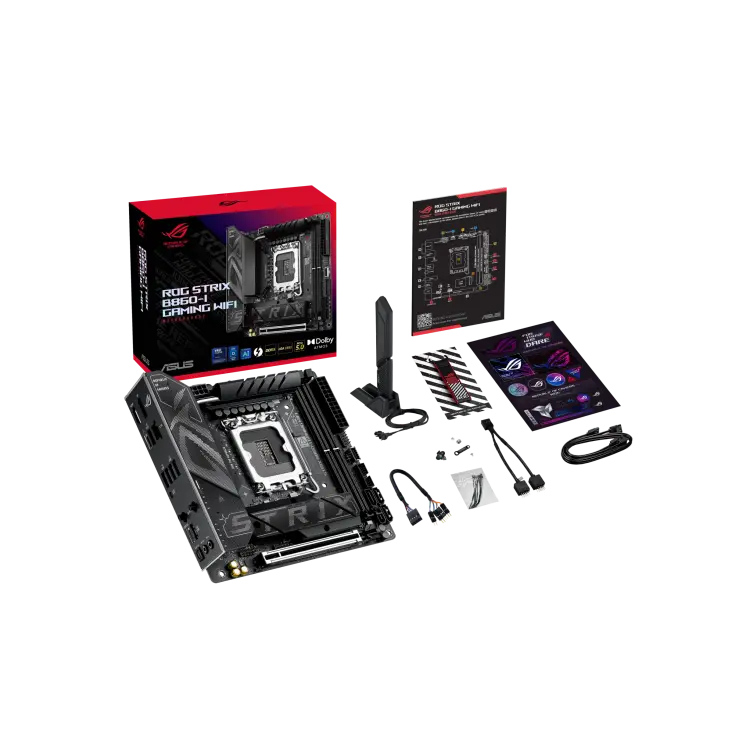

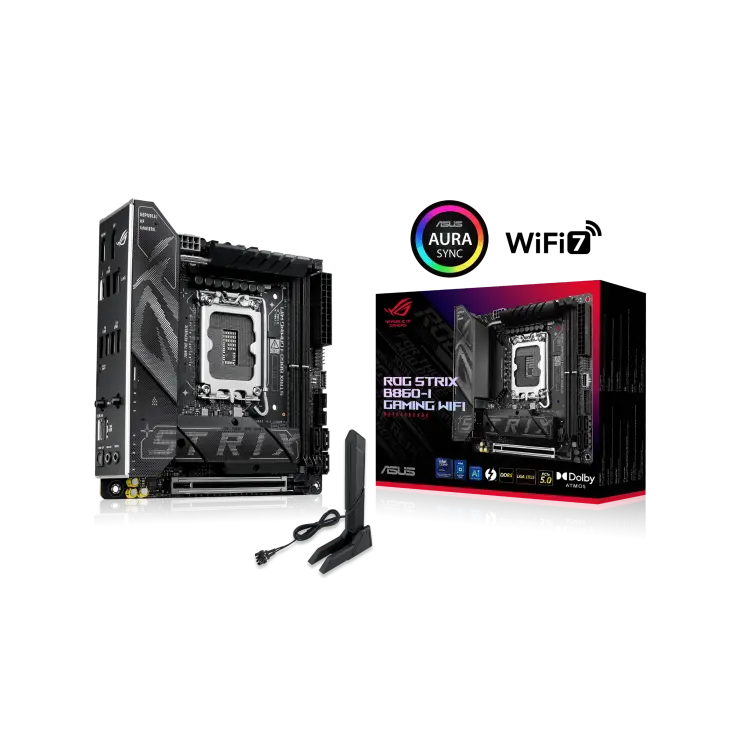

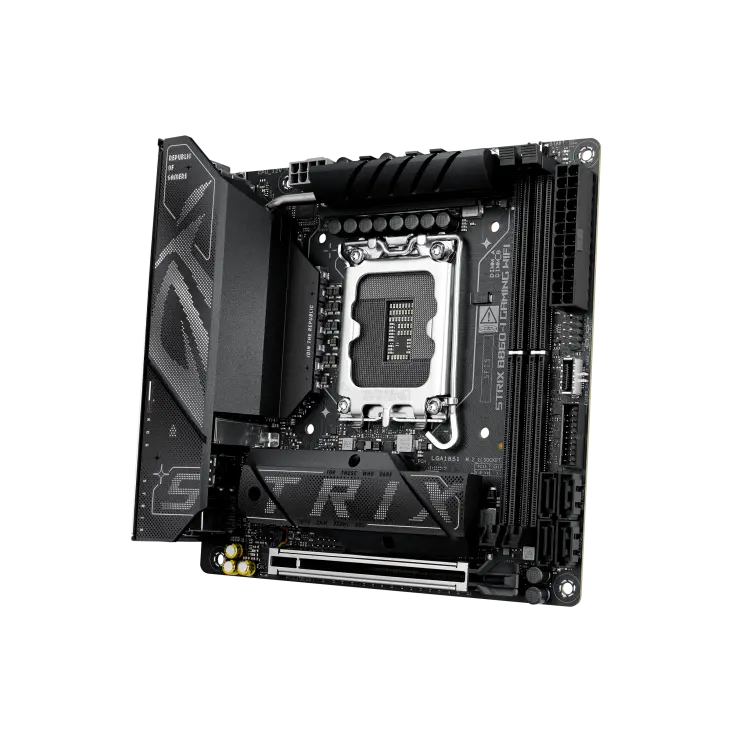

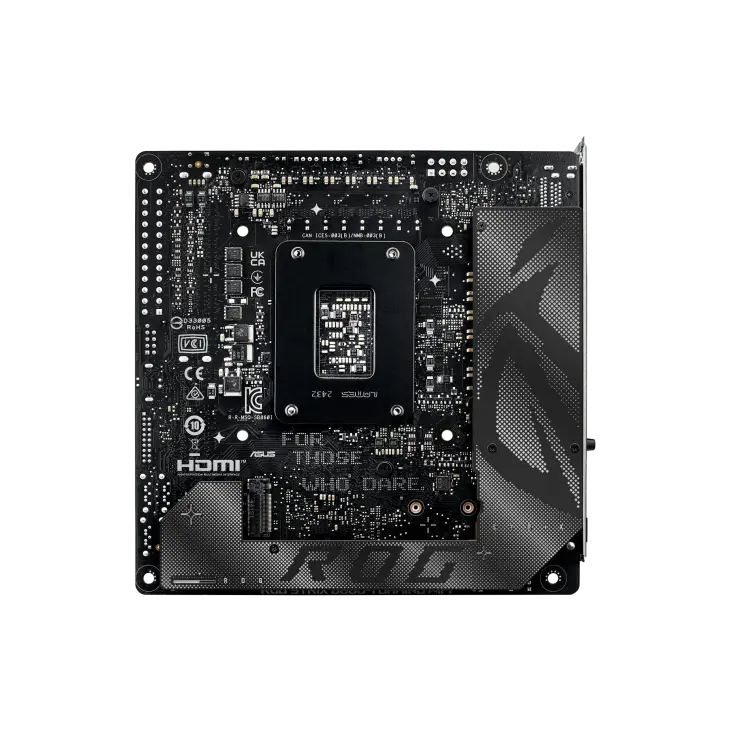

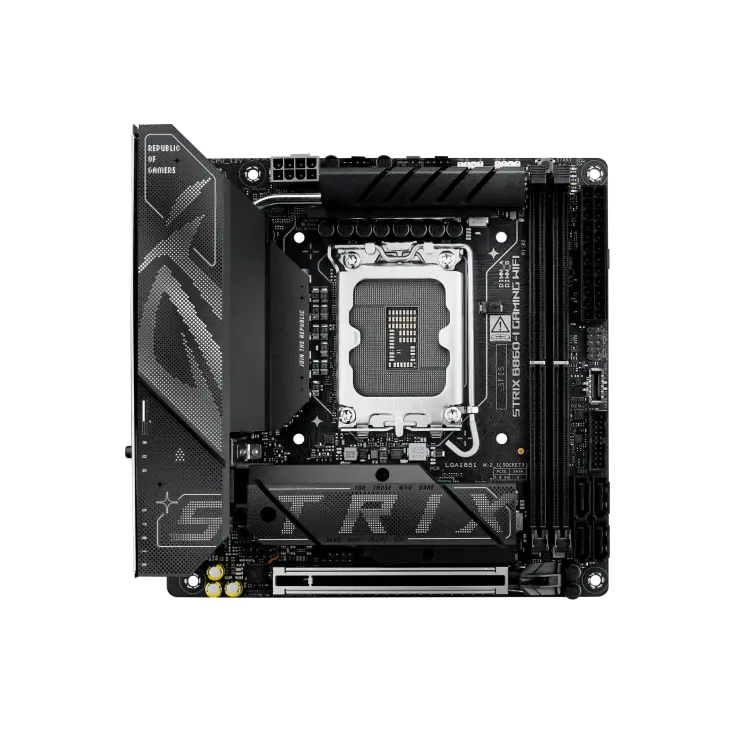

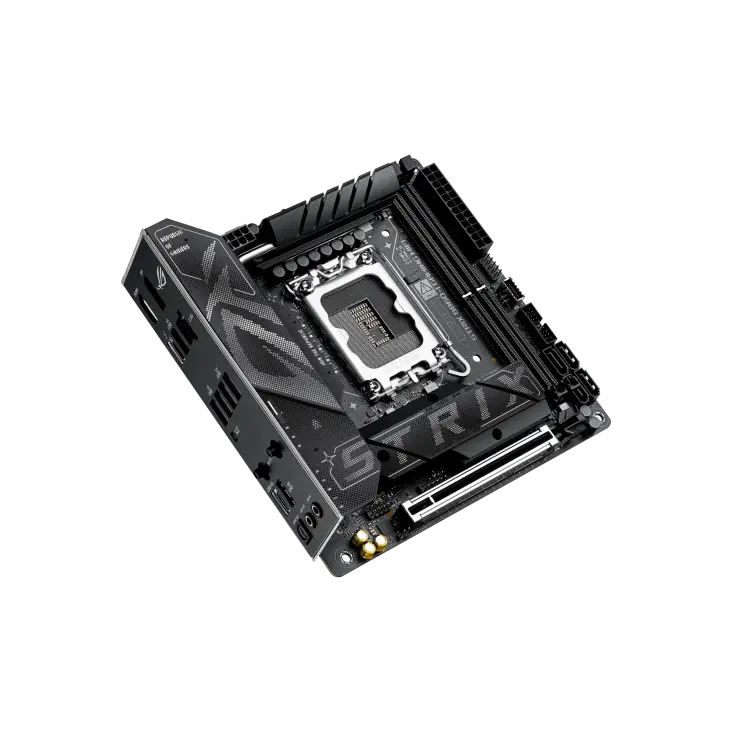

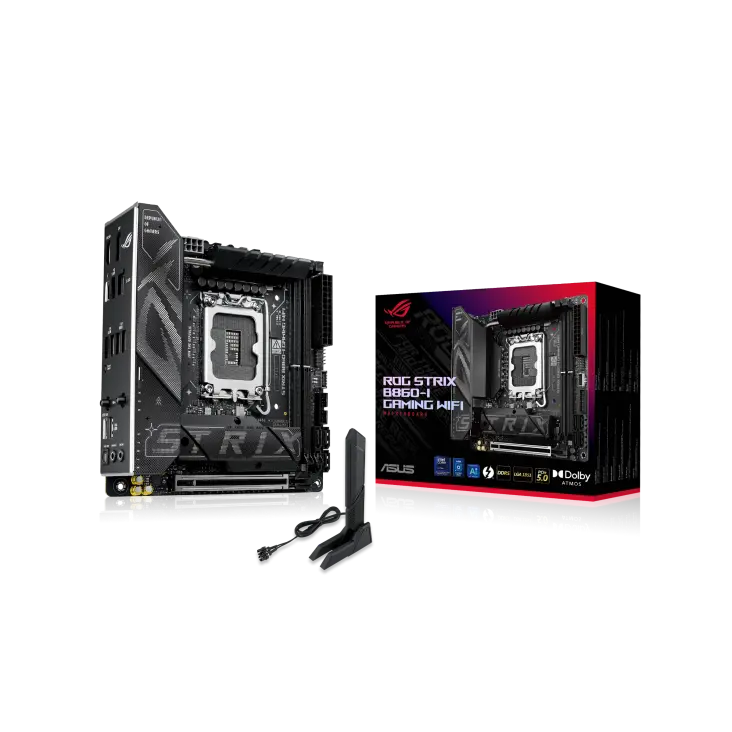

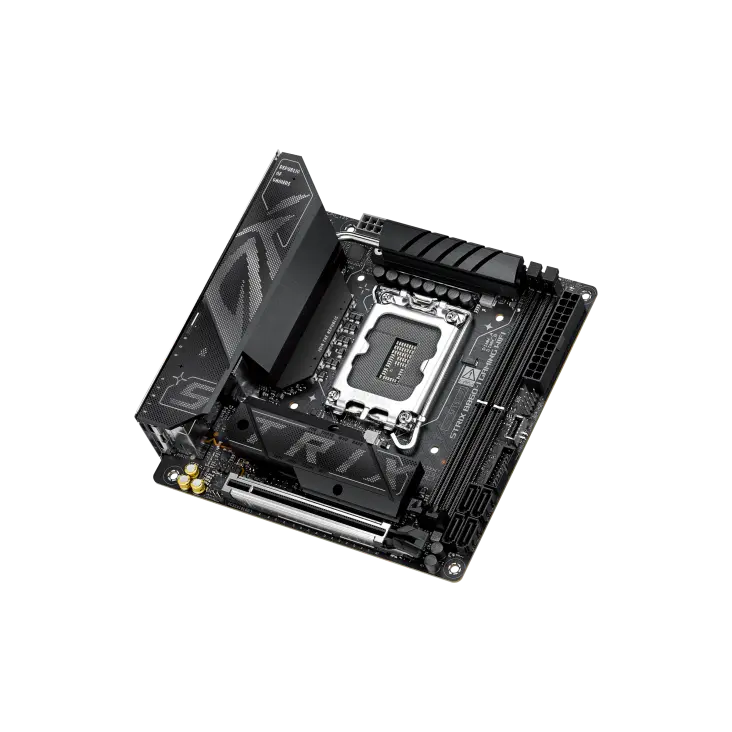

ASUS ROG STRIX B860-I GAMING WIFI INTEL LGA 1851 DDR5 PCIe 5.0 Mini-ITX
- CPU Compatibility: Supports Intel® Core™ Ultra Processors (Series 2) with LGA‑1851 socket
- Chipset & Power Design: Intel® B860 chipset with 10 + 1 + 2 + 1 power stages (80 A rated) for reliable power delivery
- Memory Support: 2 × DDR5 DIMM slots, dual-channel, up to 128 GB total memory, supports speeds up to 9066+ MT/s (OC) with XMP and AEMP III
- Expansion Slot: 1 × PCIe 5.0 ×16 SafeSlot (CPU direct) for high-performance GPUs
- Storage Configuration: M.2_1 (PCIe 5.0 ×4, 2280), M.2_2 (PCIe 4.0 ×4, 2242/2260/2280), 4 × SATA 6Gb/s with RAID 0/1/5/10 support
- Networking:Intel® 2.5Gb Ethernet, Wi‑Fi 7 (802.11be, 2×2), Bluetooth® v5.4
- High-Speed USB Connectivity:

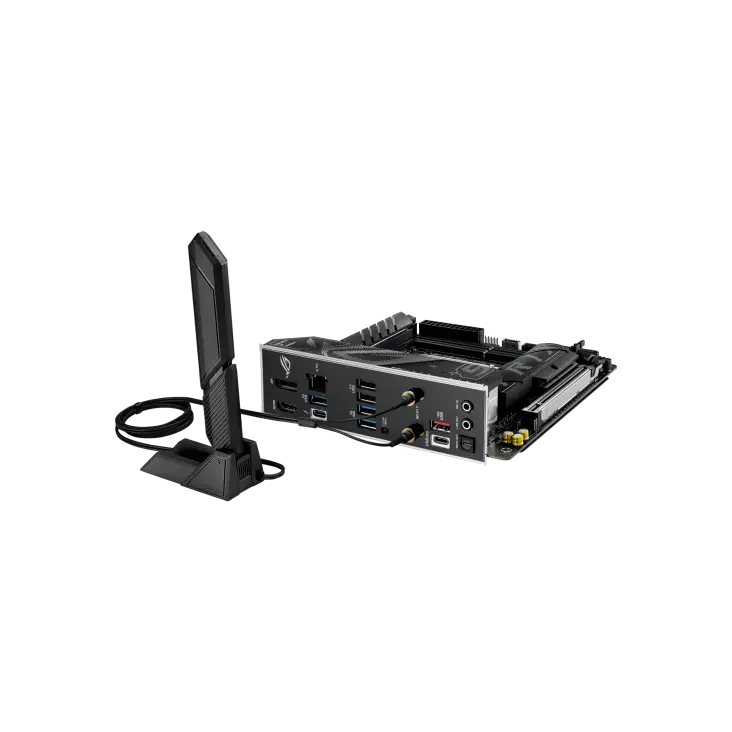

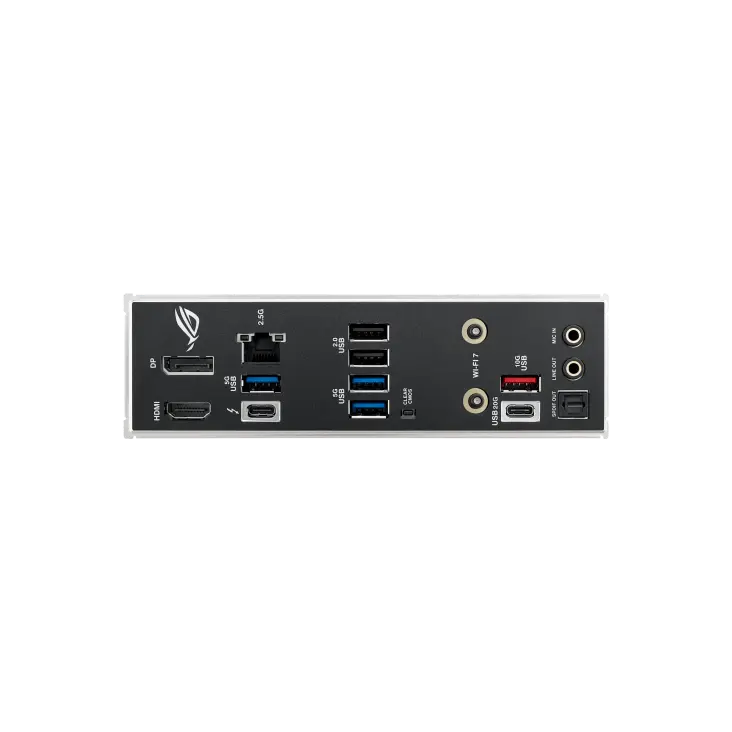

- Rear I/O – 1 × Thunderbolt™ 4 (USB‑C), 1 × USB 20Gbps (USB‑C), 1 × USB 10Gbps (Type‑A), 3 × USB 5Gbps (Type‑A), 2 × USB 2.0
- Front Headers – USB 10Gbps Type‑C, 2 × USB 5Gbps header, 2 × USB 2.0 header
- Display & I/O Features: 1 × DisplayPort 1.4 and 1 × HDMI 2.1 (up to 4K @ 60 Hz), Thunderbolt 4 supports DisplayPort up to 8K @ 60 Hz via DSC
- Audio System:SupremeFX with Realtek ALC1220P codec, Savitech SV3H712 amp, premium capacitors, audio shielding, Dolby Atmos support

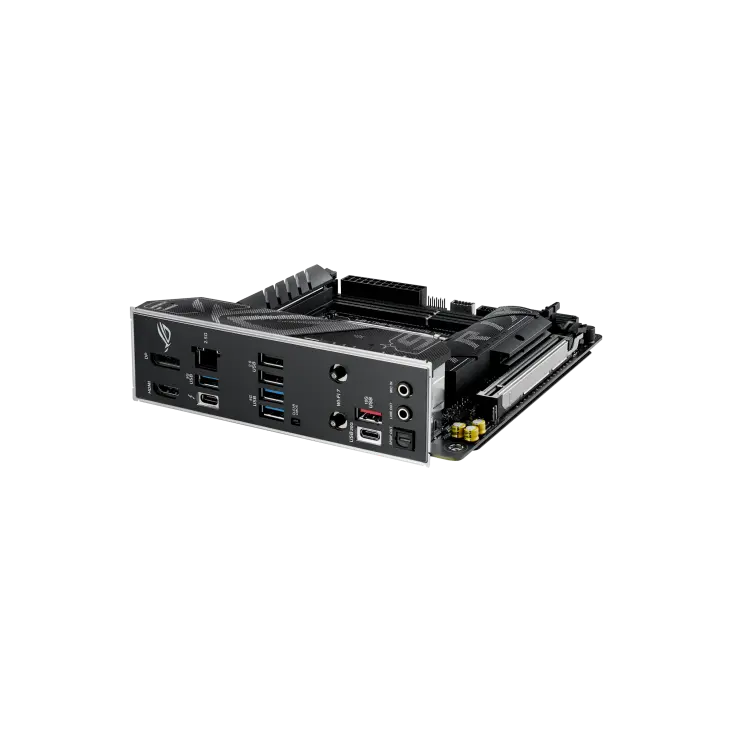

- Cooling & DIY Features: VRM and M.2 heatsinks, AIO pump header, chassis fan header, pre-mounted I/O shield, Q‑LED, SafeSlot, Q‑Design, addressable Gen2 RGB
- Form Factor:Mini‑ITX (17 × 17 cm)
This content will be shared across all product pages.
| Brand: ASUS |
| CPU Compatibility: INTEL |
| Chipset: B860-I |
| Socket Type: LGA 1851 |
| Memory Type: DDR5 |
| Form Factor: Mini-ITX |
| Color: Black |
