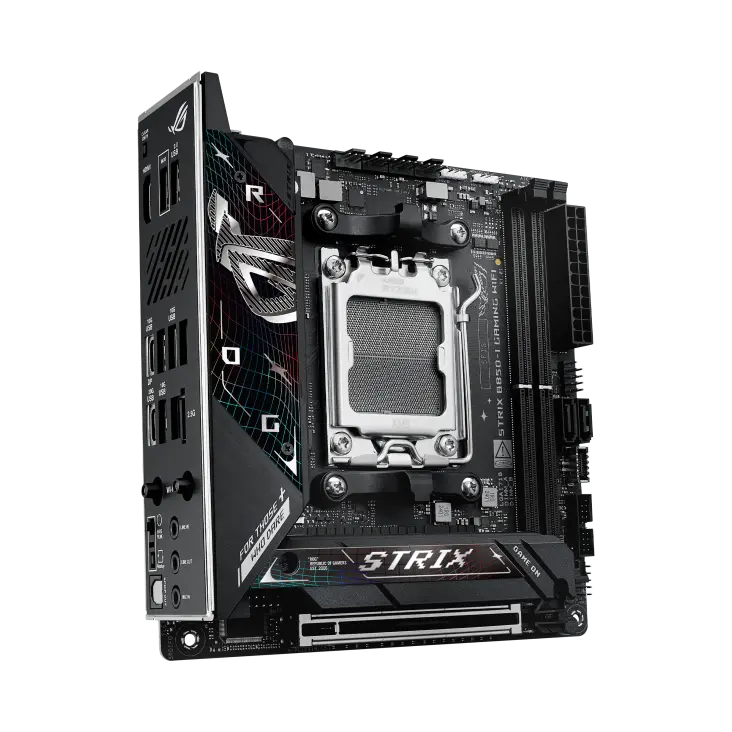

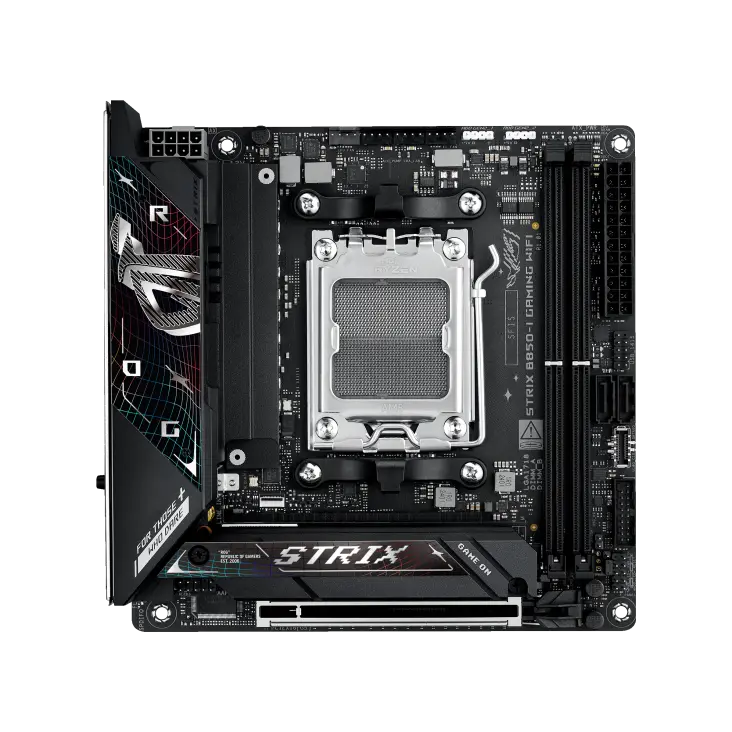

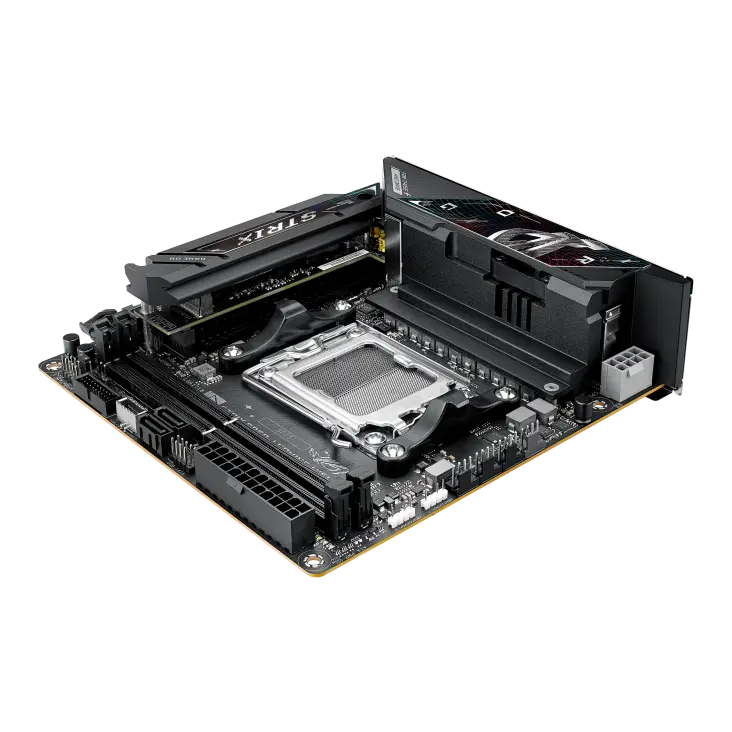

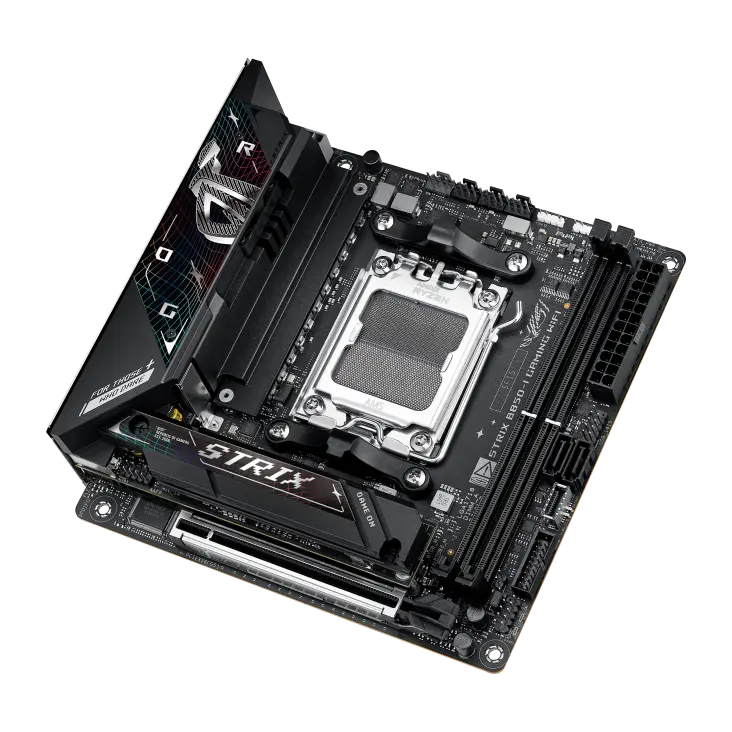

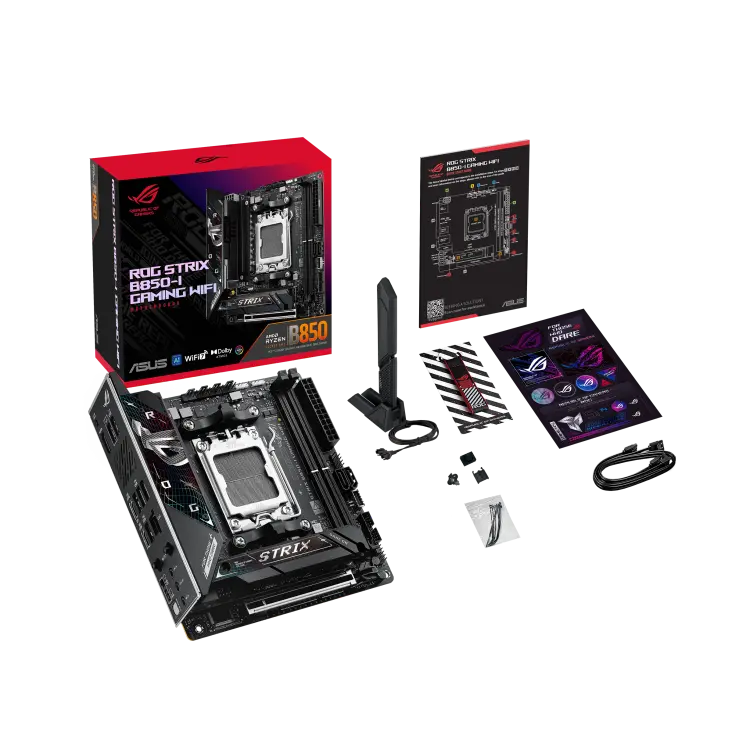

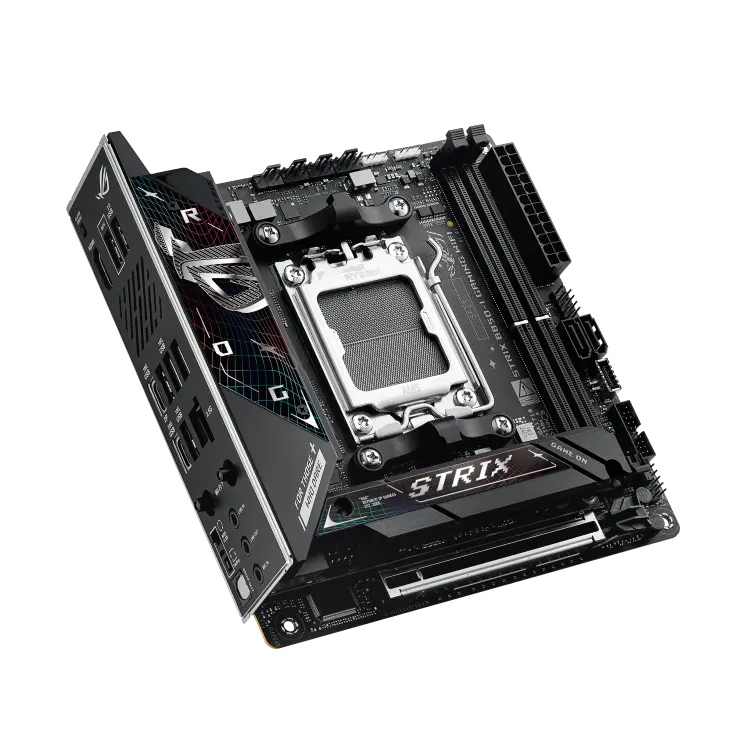

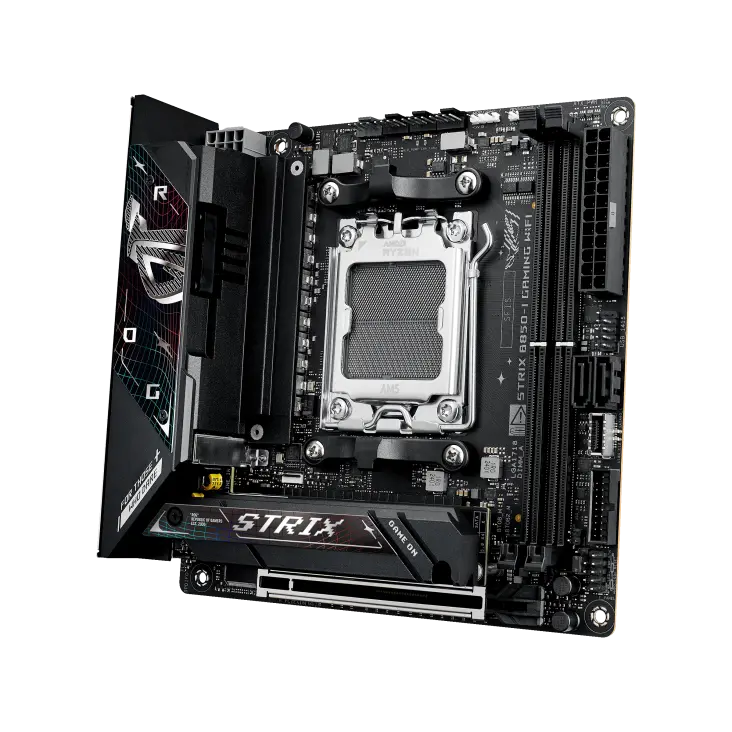

ASUS ROG STRIX B850-I GAMING WIFI AMD AM5 DDR5 PCIe 5.0 Mini-ITX
- CPU Compatibility: Supports AMD Ryzen™ 7000, 8000 & 9000 Series processors using the AM5 socket with the AMD B850 chipset
- Power Delivery & VRM Design: Solid 10 + 2 + 1 power stages, each rated up to 90 A, paired with ProCool connectors and an integrated mini-ITX thermal layout for stable power and performance
- Memory Support: Two DIMM slots for DDR5 memory (dual-channel), supporting up to 96 GB total, with overclocking up to DDR5‑8400+ MT/s via AEMP/XMP
- Expansion Slot: One PCIe 5.0 ×16 SafeSlot (CPU-connected) with a Slim Q‑Release latch for easy graphics card installation
- Storage Configuration: Supports 2 × M.2 slots (PCIe 5.0 ×4); one is actively cooled via a large integrated heatsink with chipset airflow optimization
- Networking: Built-in Wi‑Fi 7 (802.11be) with directional Q‑Antenna, and Intel 2.5 Gb Ethernet for high-speed LAN

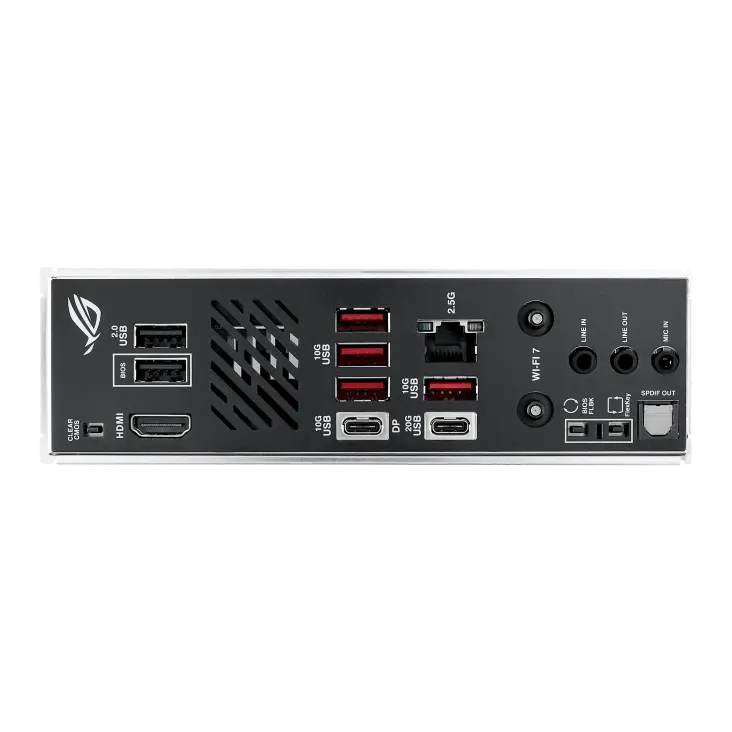

- High-Speed USB Connectivity: Includes 1 × USB 20 Gbps Type‑C rear port, 5 × USB 10 Gbps ports (including Type‑A), plus internal headers for front-panel USB 10 Gbps and 5 Gbps support

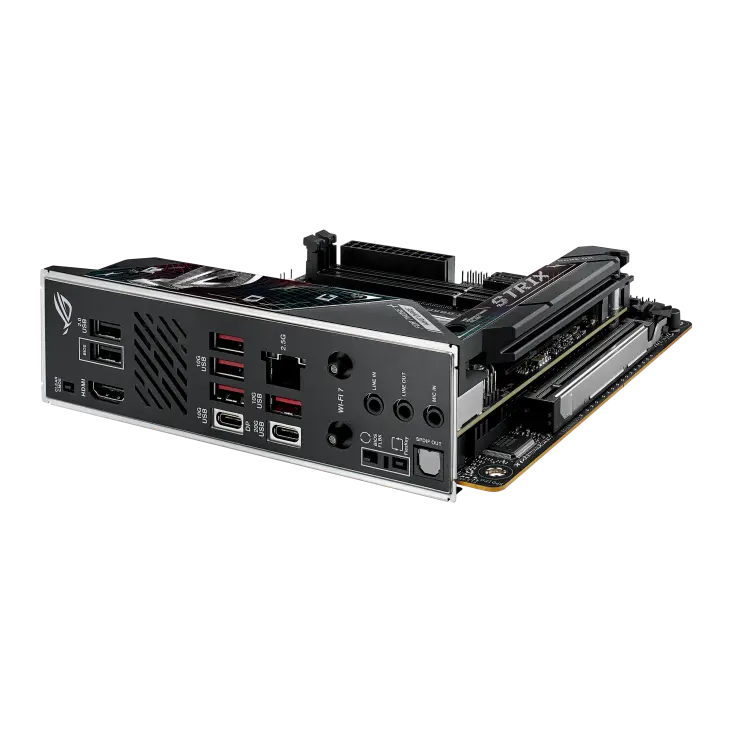

- Display & I/O Features: One HDMI® port, plus onboard Clear CMOS, FlexKey, and BIOS FlashBack™ buttons for easy system recovery and updates
- Audio System:ROG SupremeFX ALC4080 audio codec with Savitech SV3H712 amplifier, audio shielding, and support for Dolby Atmos with up to 120 dB SNR stereo output
- Cooling & DIY Features: Active VRM cooling fan, chipset and M.2 heatsinks, AIO pump header, multiple fan headers including "extra flow," and DIY-friendly tools such as Q‑Latch, M.2 Q‑Slide, Debug LEDs, pre-mounted I/O, and Aura Sync RGB headers
This content will be shared across all product pages.
| Brand: ASUS |
| CPU Compatibility: AMD |
| Chipset: B850-I |
| Socket Type: AM5 |
| Memory Type: DDR5 |
| Form Factor: Mini-ITX |
| Color: Black |
