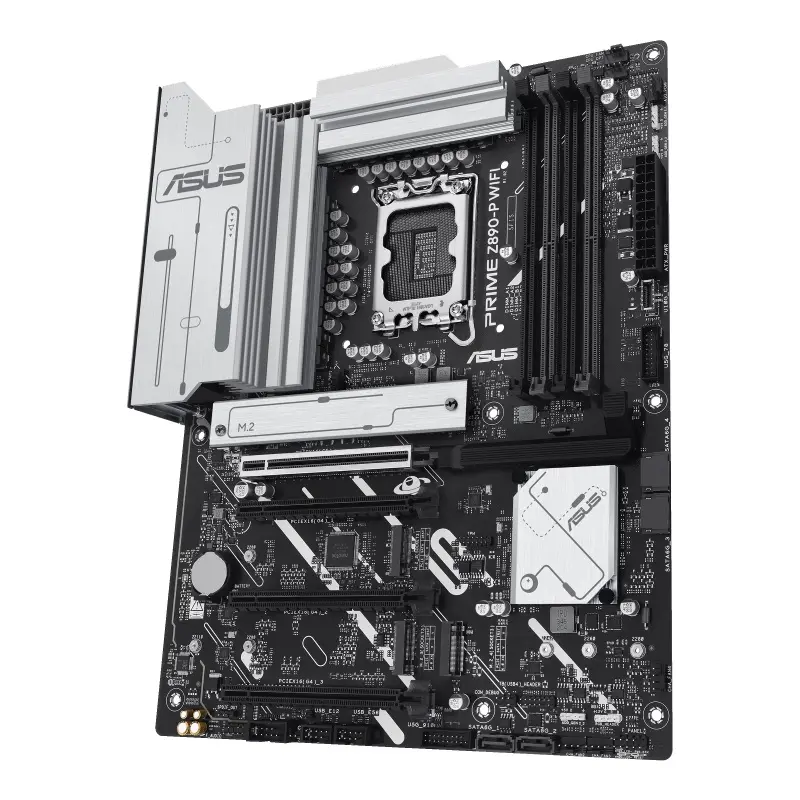

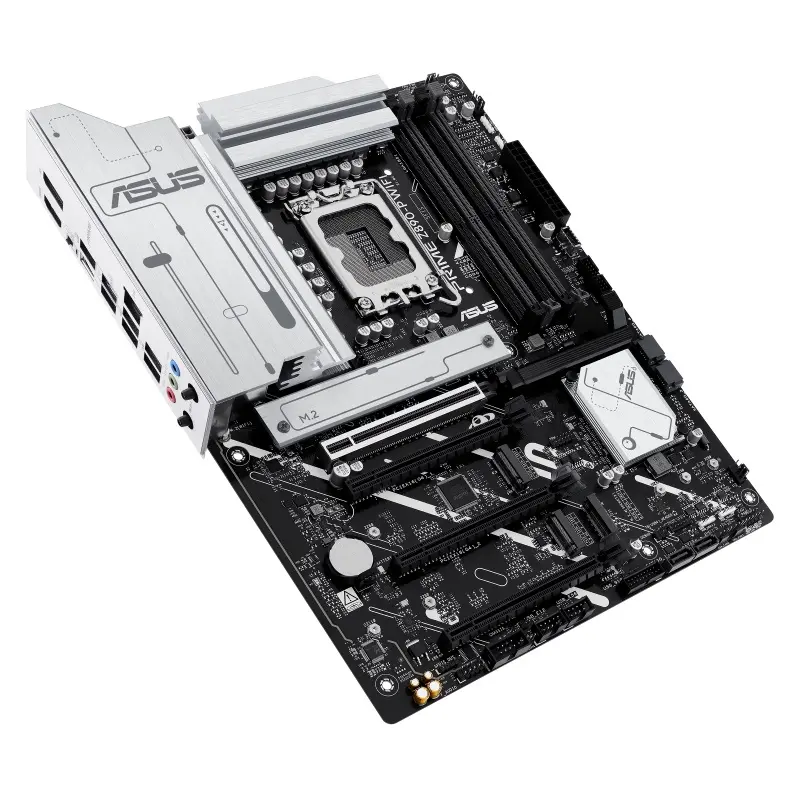

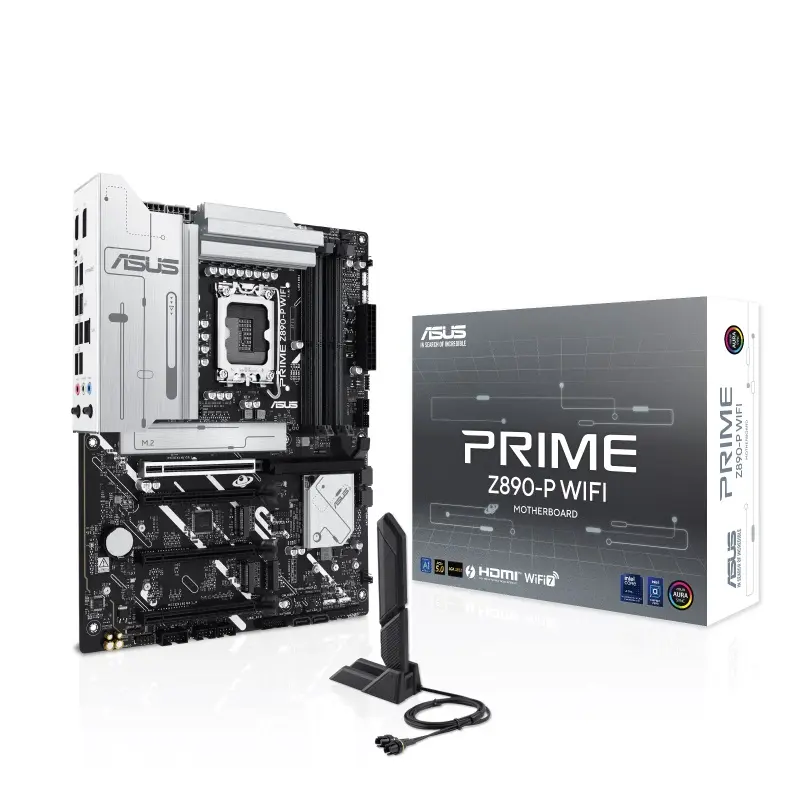

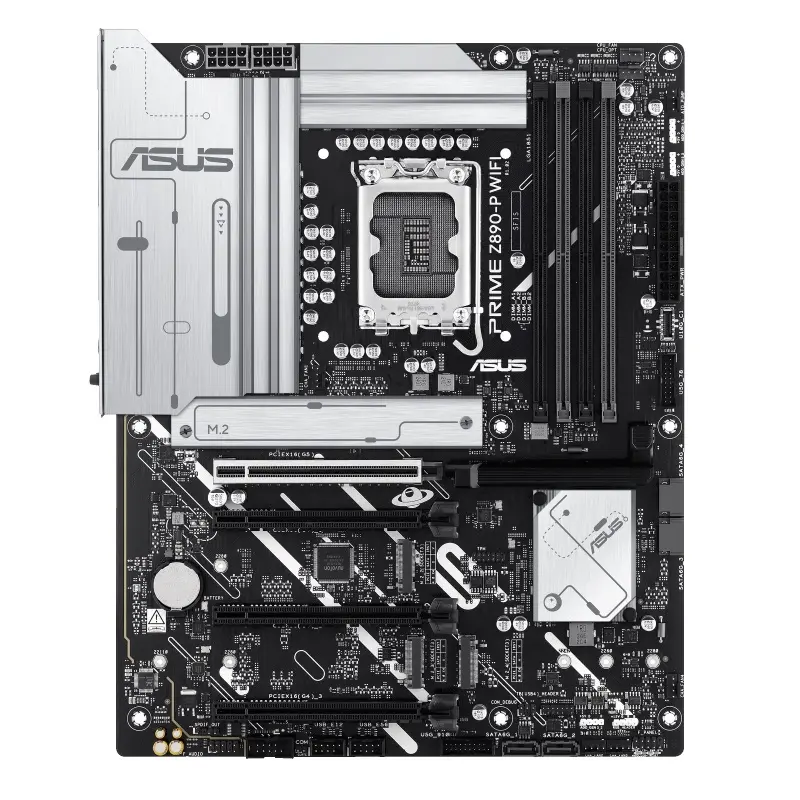

ASUS PRIME Z890-P WIFI INTEL LGA 1851 DDR5 PCIe 5.0 ATX
- CPU Compatibility: Supports Intel® Core™ Ultra Processors (Series 2) on LGA 1851 socket, including Intel Turbo Boost Technology 2.0 and optional Turbo Boost Max 3.0
- Chipset & Power Design: Intel Z890 chipset with 14 + 1 + 2 + 1 80 A DrMOS power stages on a six-layer PCB for stable overclocking
- Memory Support: 4 × DDR5 DIMM slots, dual-channel, supporting up to 192 GB RAM, overclocking up to 8666+ MT/s via Intel XMP and ASUS AEMP III
- Expansion Slots: 1 × PCIe 5.0 ×16 SafeSlot (CPU-connected, full ×16), 2 × PCIe 4.0 ×16 (chipset, ×4 mode each), 1 × PCIe 4.0 ×16 (chipset, ×1 mode)
- Storage Interfaces: 4 × M.2 slots (one PCIe 5.0 ×4 supporting 2280/22110, others PCIe 4.0 ×4 or SATA compatible), 4 × SATA 6 Gb/s ports with RAID 0/1/5/10 support via Intel RST
- Networking: Realtek 2.5 Gb Ethernet with ASUS LANGuard, Wi‑Fi 7 (802.11be) dual-band supporting 160 MHz channels up to ~2.9 Gbps, Bluetooth v5.4

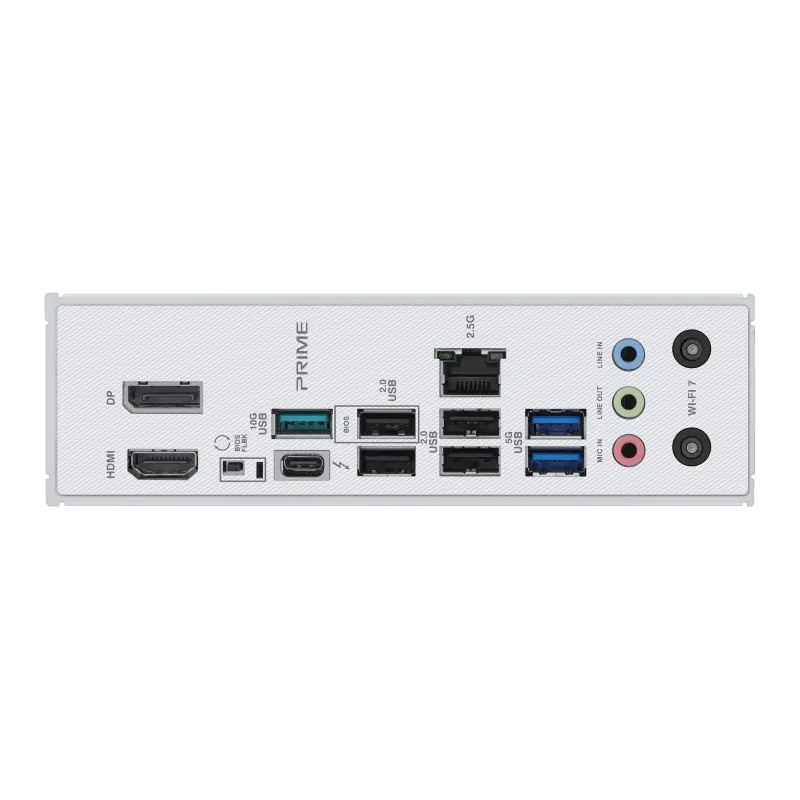

- USB Connectivity: Rear – 1 × Thunderbolt 4 Type-C, 1 × USB 10 Gbps Type-A, 2 × USB 5 Gbps, 4 × USB 2.0; Front/internal – 1 × USB 10 Gbps header (Type-C), 2 × USB 5 Gbps headers, 2 × USB 2.0 headers
- Display Outputs: 1 × DisplayPort, 1 × HDMI 2.1; Thunderbolt 4 port supports DisplayPort Alt Mode up to 8K @ 60 Hz with DSC
- Audio: Built-in Realtek 7.1-channel HD Audio with audio shielding, premium capacitors, isolated PCB layers, supporting high-fidelity 24-bit/192 kHz playback
- Design & Build Features:ATX (12.0 × 9.6 inches / 30.5 × 24.4 cm), VRM, chipset, and M.2 heatsinks, hybrid fan headers (CPU, pump, chassis), ASUS 5X Protection III (DIGI+ VRM, SafeSlot Core+, LANGuard, overvoltage protection, stainless steel I/O), DIY-friendly features including PCIe Q-Release, M.2 Q-Latch, Q-LED Core, pre-mounted I/O shield, Aura Sync RGB headers
This content will be shared across all product pages.
| Brand: ASUS |
| CPU Compatibility: INTEL |
| Chipset: Z890-P |
| Socket Type: LGA 1851 |
| Memory Type: DDR5 |
| Form Factor: ATX |
| Color: Black |
