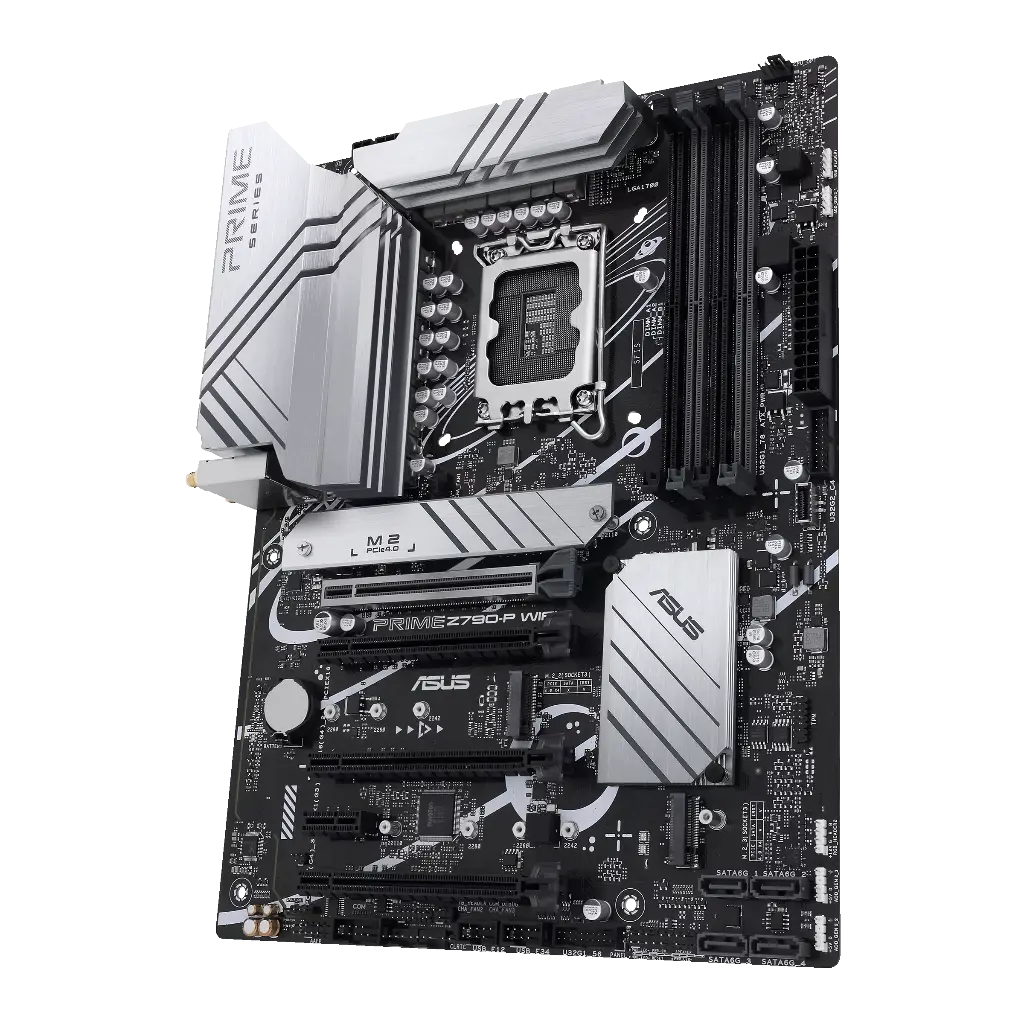

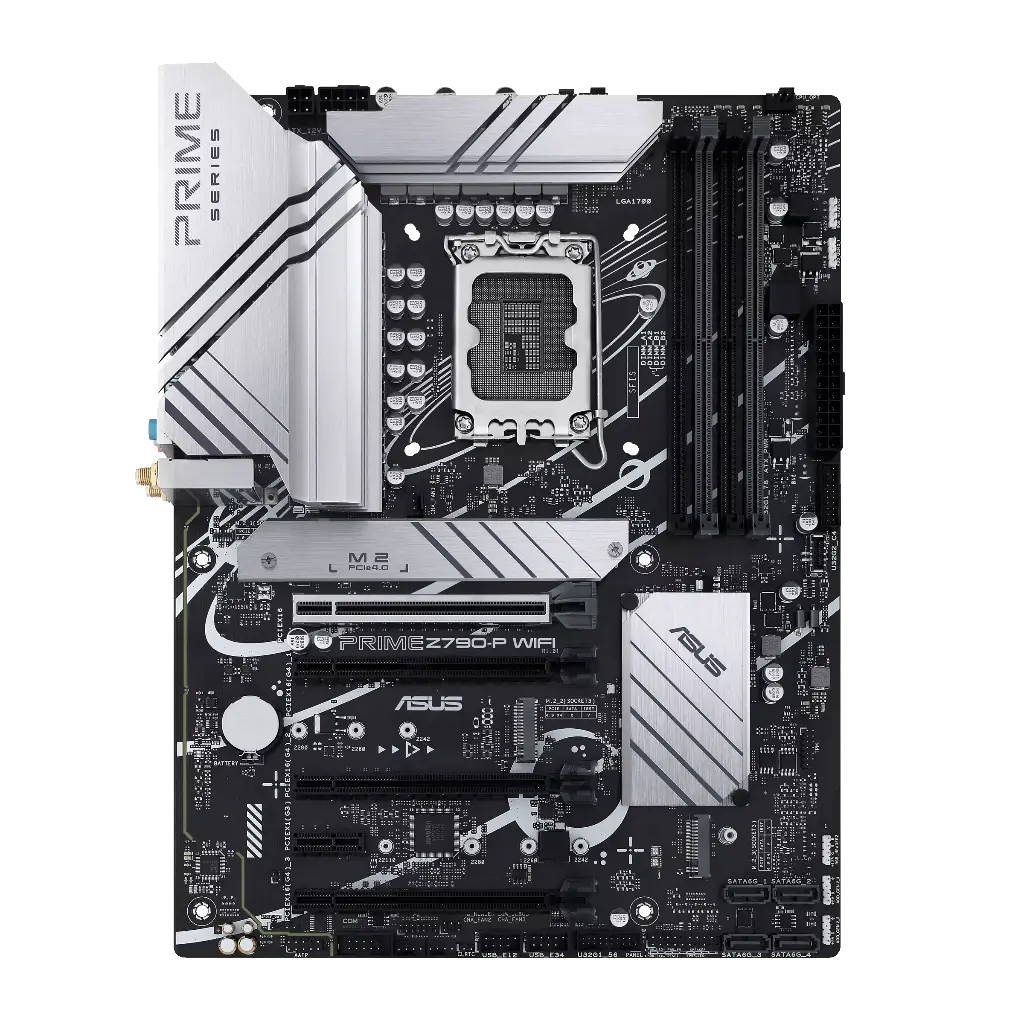

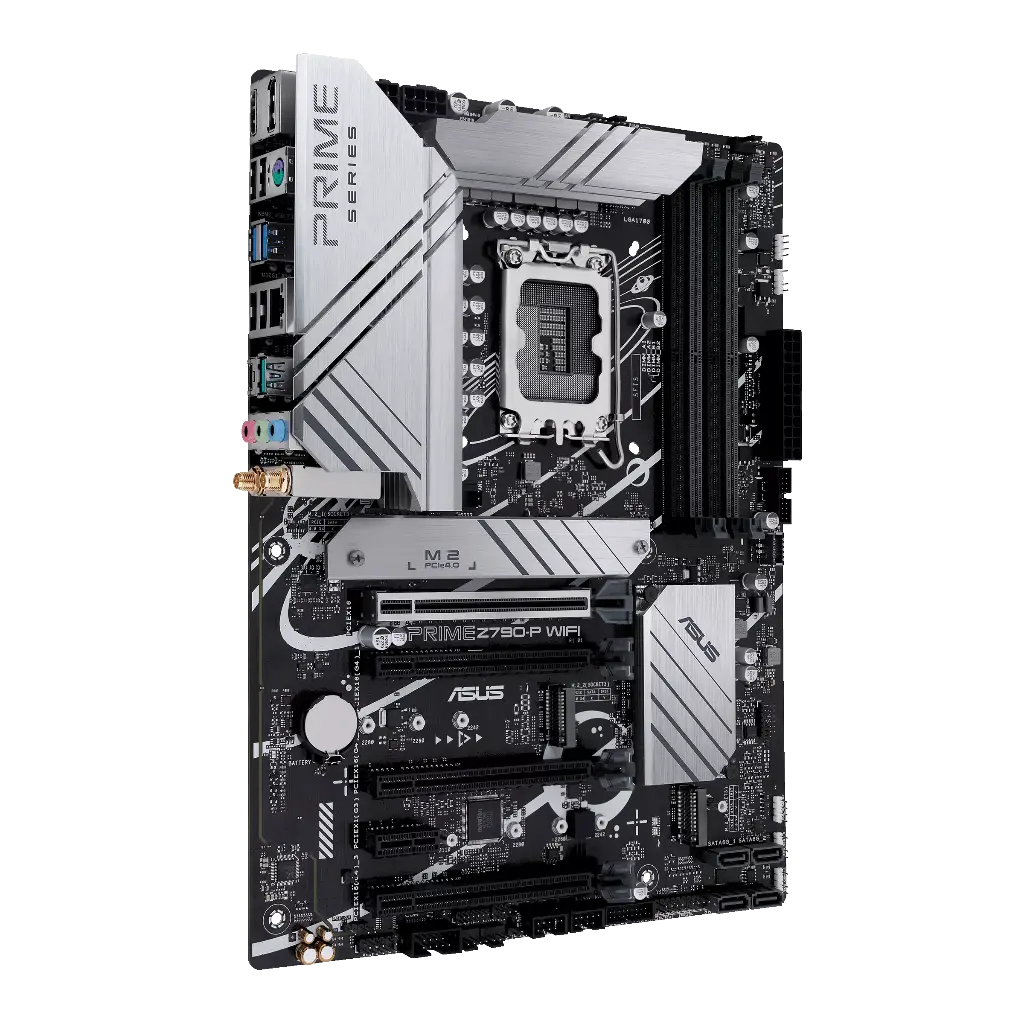

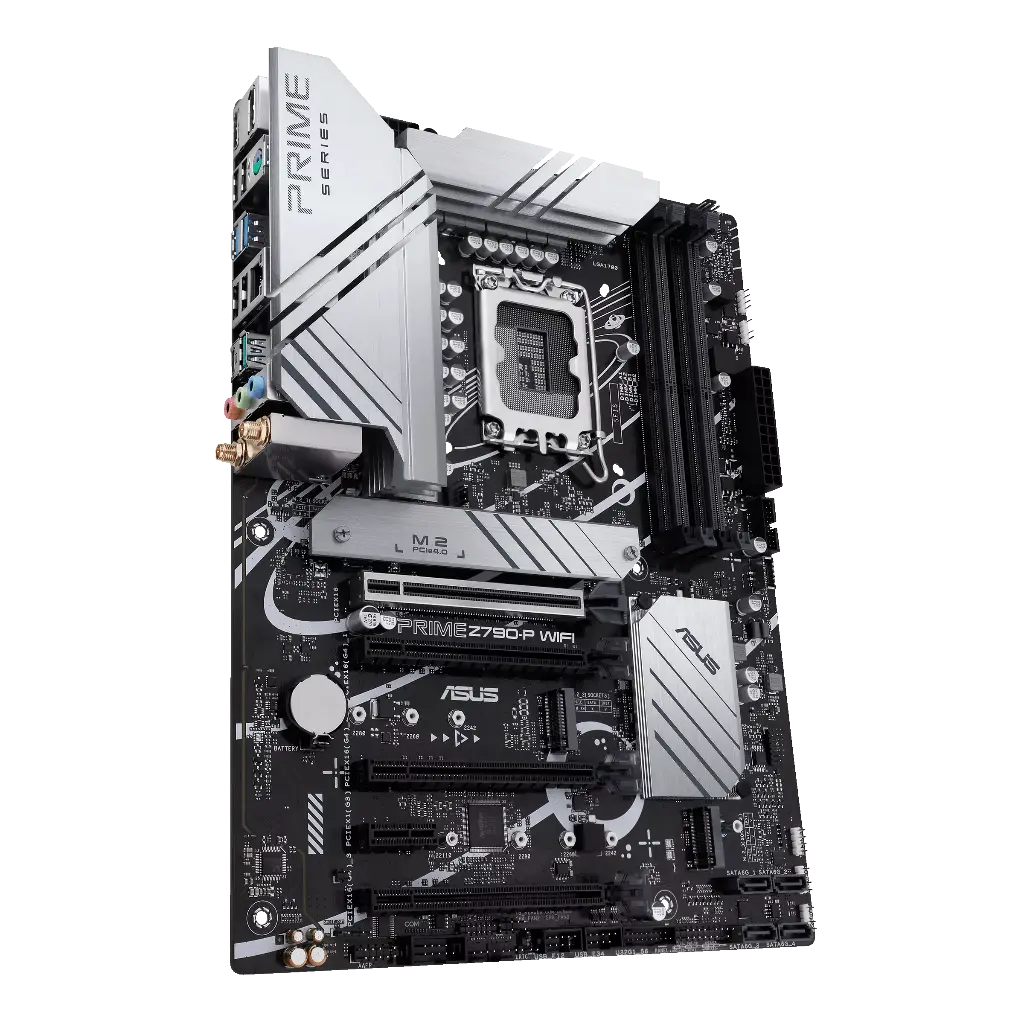

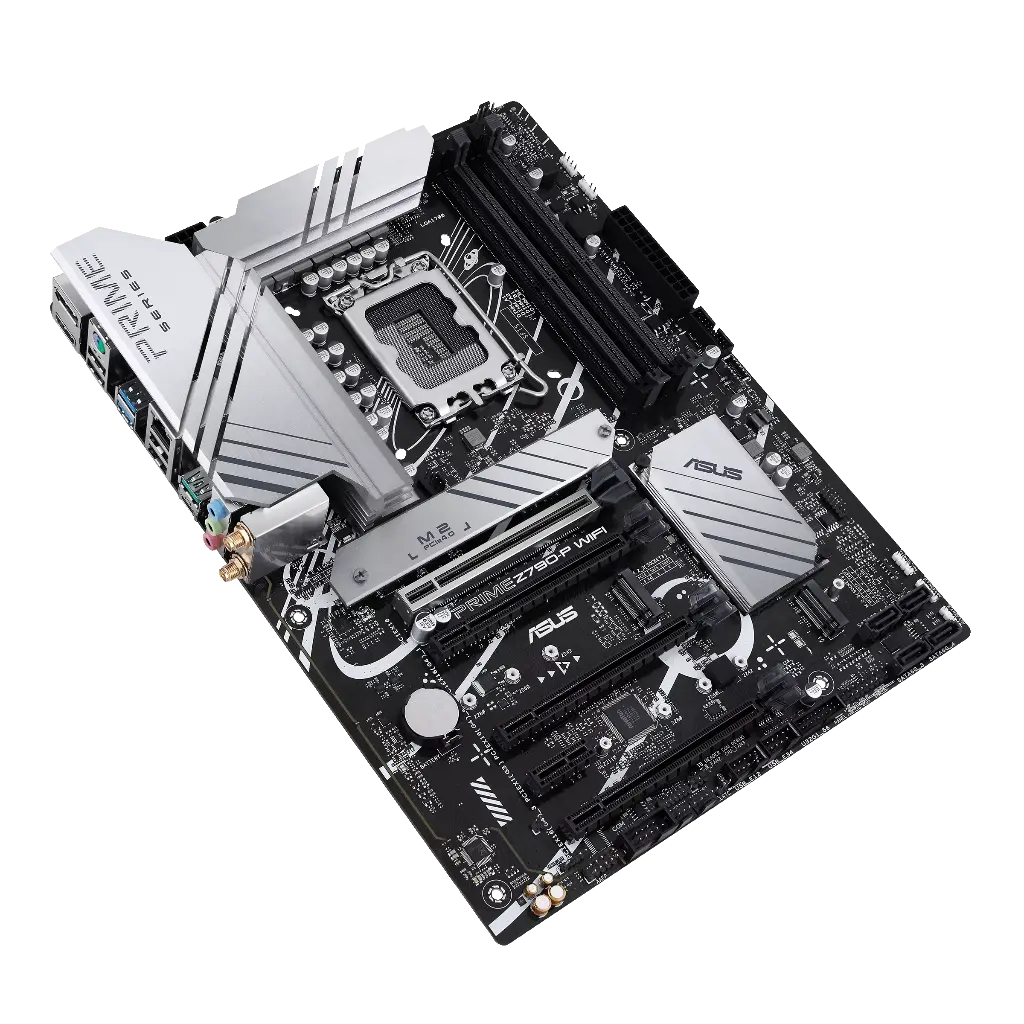

ASUS PRIME Z790-P WIFI INTEL LGA 1700 DDR5 PCIe 5.0 ATX
- Model: ASUS Prime Z790-P WiFi Motherboard
- Part Number: 90MB1CJ0-M1EAY0
- Form Factor & Socket: ATX (305 × 244 mm), supports Intel LGA 1700 processors including 12th, 13th, and 14th Generation Core CPUs
- Power & VRM Design: Robust 14 + 1 DrMOS power stages (50 A each) with ProCool connectors, alloy chokes, and extensive heatsinks, built for stable overclocking and high-core CPUs
- Memory Support: Four DDR5 DIMM slots (dual-channel) supporting up to 192 GB total, with AEMP II and OptiMem II technologies for enhanced overclocking and stability
- Expansion Slots: One PCIe 5.0 ×16 SafeSlot for GPU, three PCIe 4.0 ×16 slots (x4 mode), plus one PCIe 3.0 ×1 slot for additional cards
- Storage Interfaces: Three M.2 slots (PCIe 4.0 x4; one also supports SATA), plus four SATA 6 Gb/s ports with RAID 0/1/5/10 support via Intel RST

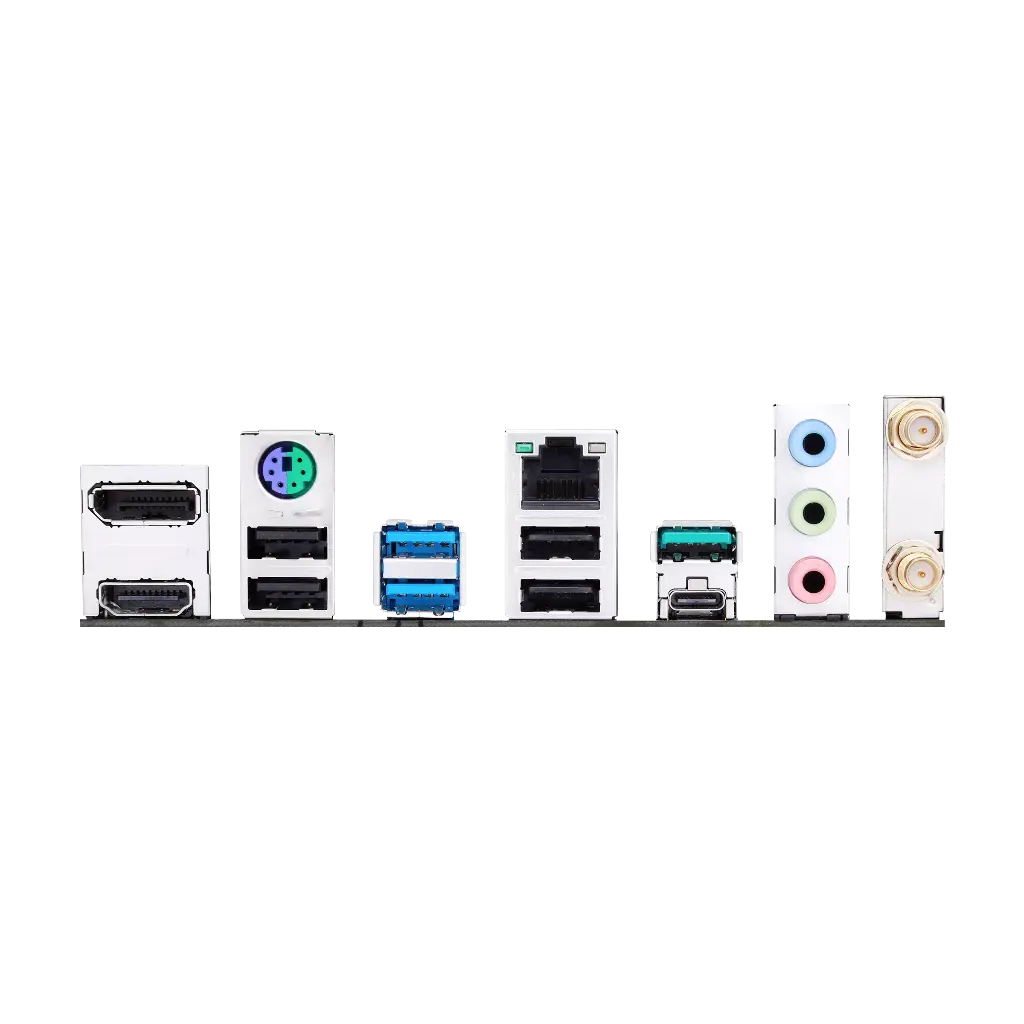

- Connectivity: Rear I/O includes USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, USB 2.0, HDMI, DisplayPort, Wi-Fi 6 antenna, 2.5 Gb LAN, 3× audio jacks, PS/2 port
- Internal headers deliver additional USB, front-panel USB-C, multiple fan headers, RGB/ARGB headers, Thunderbolt (USB4) support, S/PDIF, TPM, and COM headers
- Networking: Integrated Wi-Fi 6 and Bluetooth 5.2, alongside Realtek 2.5 Gb Ethernet for fast wired connections
- Cooling Features: Vendor-designed VRM and M.2 heatsinks, hybrid fan headers, and AI Cooling II via Fan Xpert 4 for intelligent temperature control
- Audio & BIOS: Built-in Realtek high-definition 8-channel audio with ASUS enhancements; ASUS UEFI BIOS with Intelligent Control for efficiency tuning and customization
