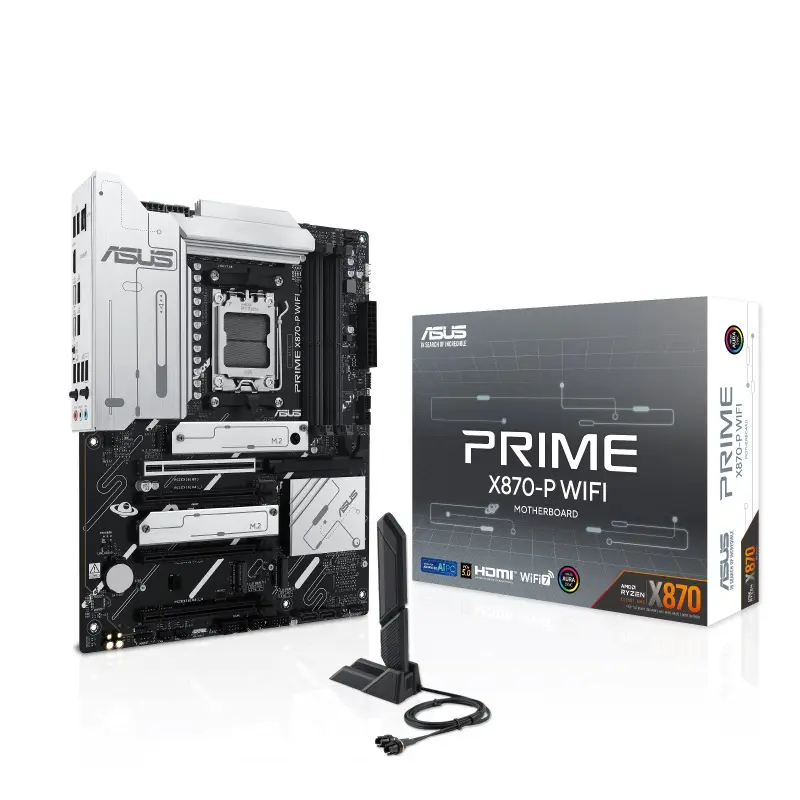

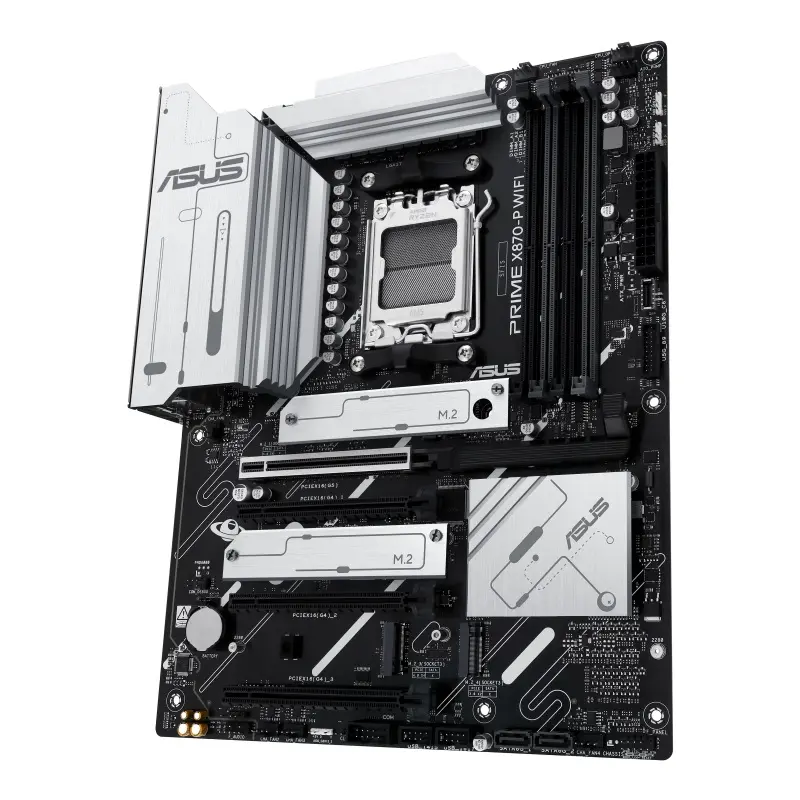

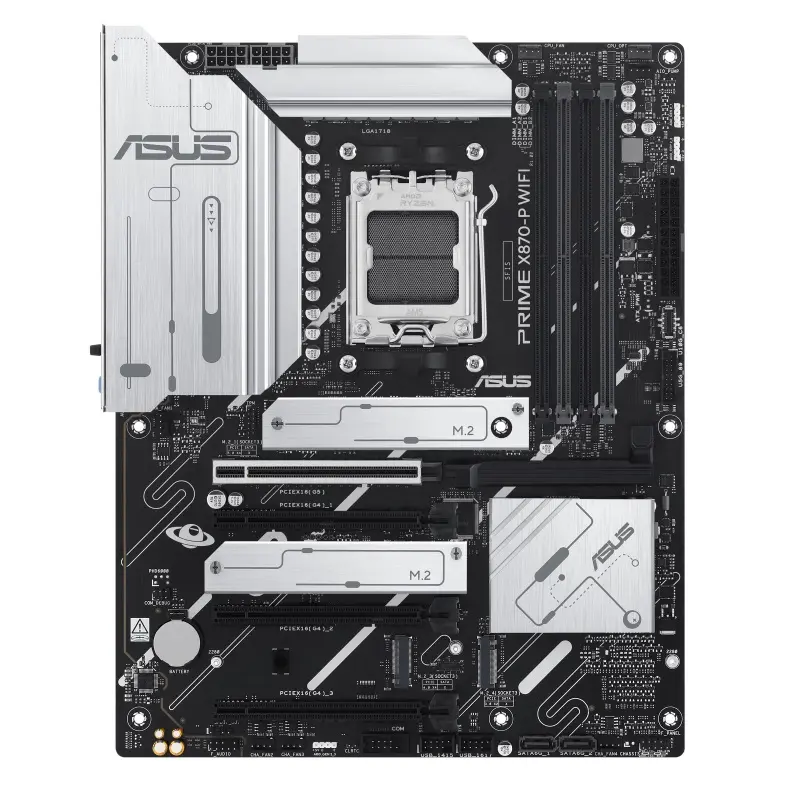

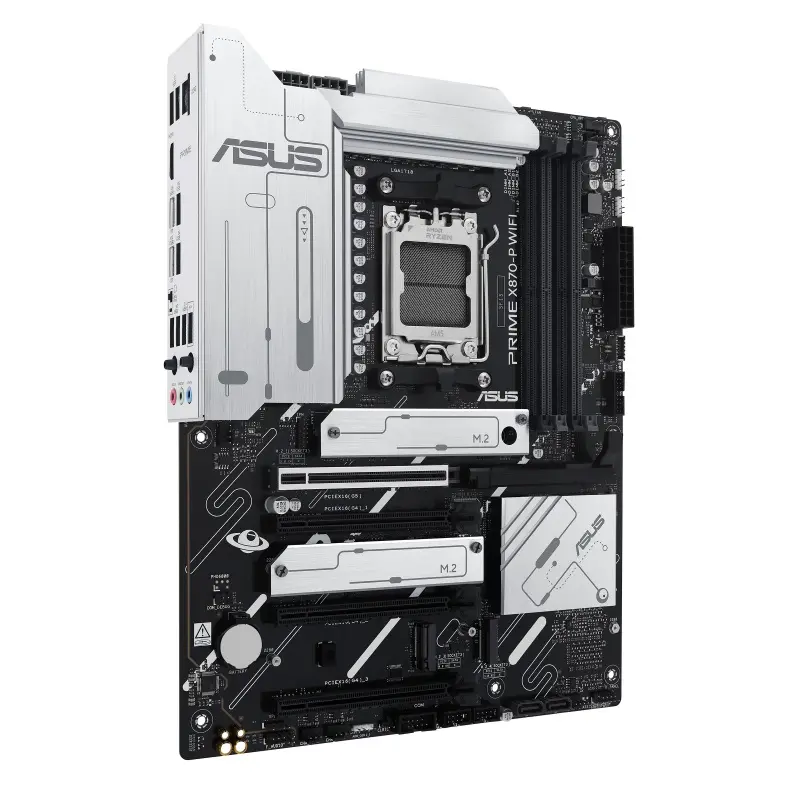

ASUS PRIME X870-P WIFI AMD AM5 DDR5 PCIe 5.0 ATX
- CPU Compatibility: Supports AMD Ryzen™ 7000, 8000 & 9000 Series desktop processors using the AM5 socket and X870 chipset
- Power Delivery & VRM Design: Robust 14 + 2 + 1 power stage design, each stage rated 80 A DrMOS, implemented on an 8-layer PCB with ProCool connectors for precise and stable power
- Memory Support: 4 × DDR5 DIMM slots; supports up to 192 GB total memory, with overclocking up to DDR5‑8000+ MT/s, including ECC/non‑ECC and AMD EXPO/AEMP support
- PCI Express Expansion: 1 × PCIe 5.0 ×16 SafeSlot (CPU‑connected, full ×16 mode), 3 × PCIe 4.0 ×16 slots (operate at ×1 mode depending on configuration)
- Storage Interface: 4 × M.2 slots:
M.2_1: PCIe 5.0 ×4 (Gen5)
M.2_2 & M.2_3: PCIe 4.0 ×4
M.2_4: PCIe 3.0 ×2 (shares bandwidth with SATA ports)
Plus 2 × SATA 6 Gb/s ports
Networking Connectivity: Onboard Realtek 2.5 Gb Ethernet, plus Wi‑Fi 7 (802.11be) and Bluetooth 5.4 via Q‑Antenna connection

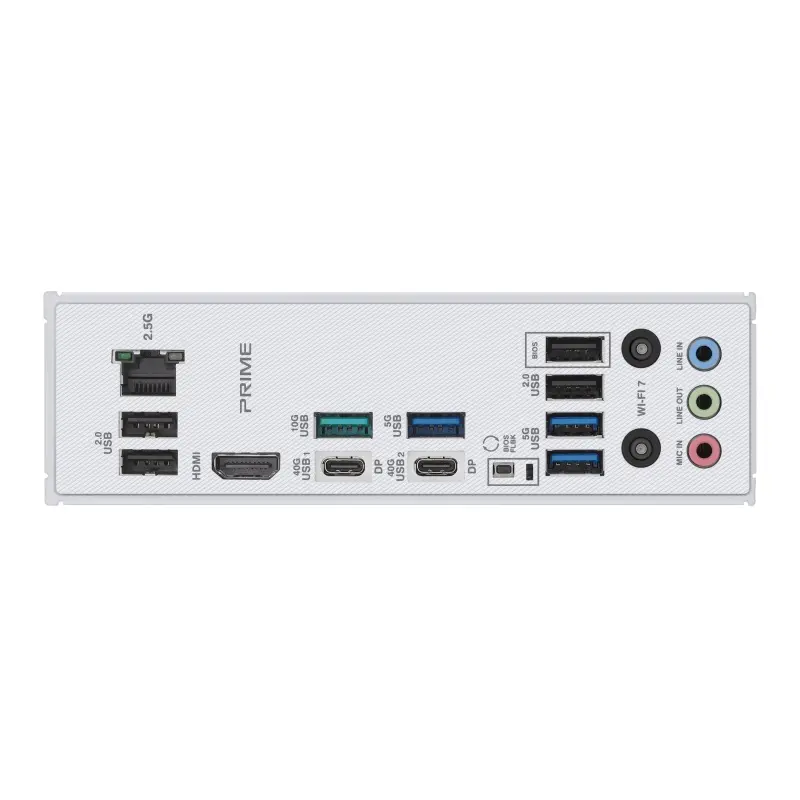

USB & Rear I/O Ports:
2 × USB4 Type‑C (40 Gbps) ports with DisplayPort Alt Mode support
1 × USB 10 Gbps Type-C header
Multiple USB 5 Gbps and USB 2.0 ports
Includes BIOS FlashBack™ button and pre-mounted I/O shield
Video Outputs: 1 × HDMI 2.1 port and 2 × USB4 DisplayPort outputs, supporting up to 8K @ 60 Hz (via USB4)
Audio Subsystem: 7.1‑channel HD audio using Realtek codec, with audio shielding, premium capacitors, and isolated PCB layer design for enhanced audio quality
Cooling & Build Features: ATX form factor (~305 × 244 mm) featuring twin VRM heatsinks, M.2 heatshields, hybrid fan headers (CPU / CPU_OPT / AIO / chassis), flexible M.2 heatsink, Q‑Release / Q‑Latch features, Q‑LED Core diagnostics, ASUS 5X Protection III, and Aura Sync via Gen2 RGB headers
This content will be shared across all product pages.
| Brand: ASUS |
| CPU Compatibility: AMD |
| Chipset: X870-P |
| Socket Type: AM5 |
| Memory Type: DDR5 |
| Form Factor: ATX |
| Color: Black |
