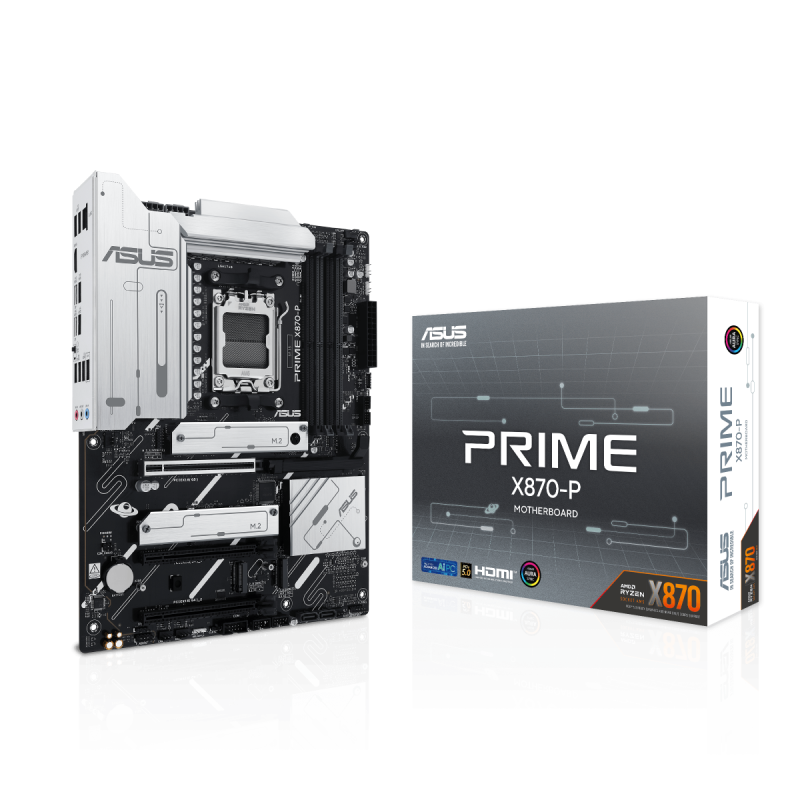

ASUS PRIME X870-P AMD AM5 DDR5 PCIe 5.0 ATX
- CPU Compatibility: Supports AMD Socket AM5 with Ryzen™ 7000, 8000, and 9000 Series desktop processors
- Chipset & Power Design: AMD X870 chipset with 14 + 2 + 1 80 A DrMOS power stages for stable power delivery and overclocking
- Memory Support: Four DDR5 DIMM slots supporting up to 192 GB, overclockable up to DDR5‑8000+ MT/s
- Expansion Slots: 1 × PCIe 5.0 x16 SafeSlot (CPU-connected), 3 × PCIe 4.0 x16 slots (operate at x1 mode depending on bandwidth)
- Storage Interfaces: Four M.2 slots (1 × PCIe 5.0 x4, 2 × PCIe 4.0 x4, 1 × PCIe 3.0 x2), 2 × SATA 6 Gb/s ports with RAID support
- Networking:Realtek 2.5 Gb Ethernet, Wi‑Fi 7 (802.11be), Bluetooth v5.4
- USB & Rear I/O Ports: Dual USB4 (40 Gbps Type‑C) with DisplayPort output, additional USB 10 Gbps Type‑C and Type‑A, plus USB 5 Gbps and USB 2.0 ports (rear and internal headers)
- Display Outputs: 1 × HDMI 2.1, USB4-based DisplayPort support (via external adapters) up to 8K resolution
- Audio System:Realtek 7.1-channel HD audio with shielding, premium capacitors, high-fidelity output
- Form Factor & Build Features:ATX (30.5 × 24.4 cm), VRM and chipset heatsinks, M.2 and PCH heatshield, pre-mounted I/O shield, Q-Design (Q-Latch, Q-Release, Q-LED, Q-Antenna), ASUS 5X Protection III, Aura Sync RGB headers
This content will be shared across all product pages.
| Brand: ASUS |
| CPU Compatibility: AMD |
| Chipset: X870-P |
| Socket Type: AM5 |
| Memory Type: DDR5 |
| Form Factor: ATX |
| Color: Black |
