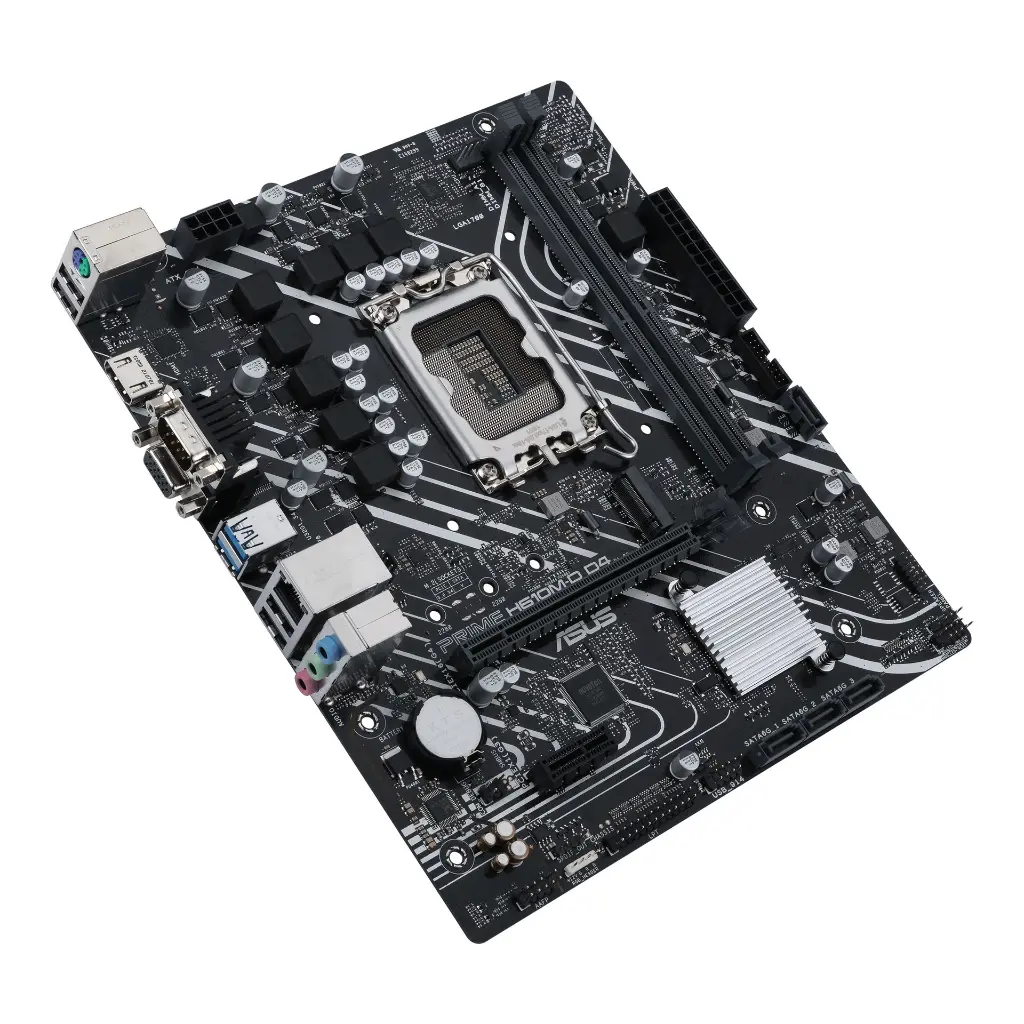

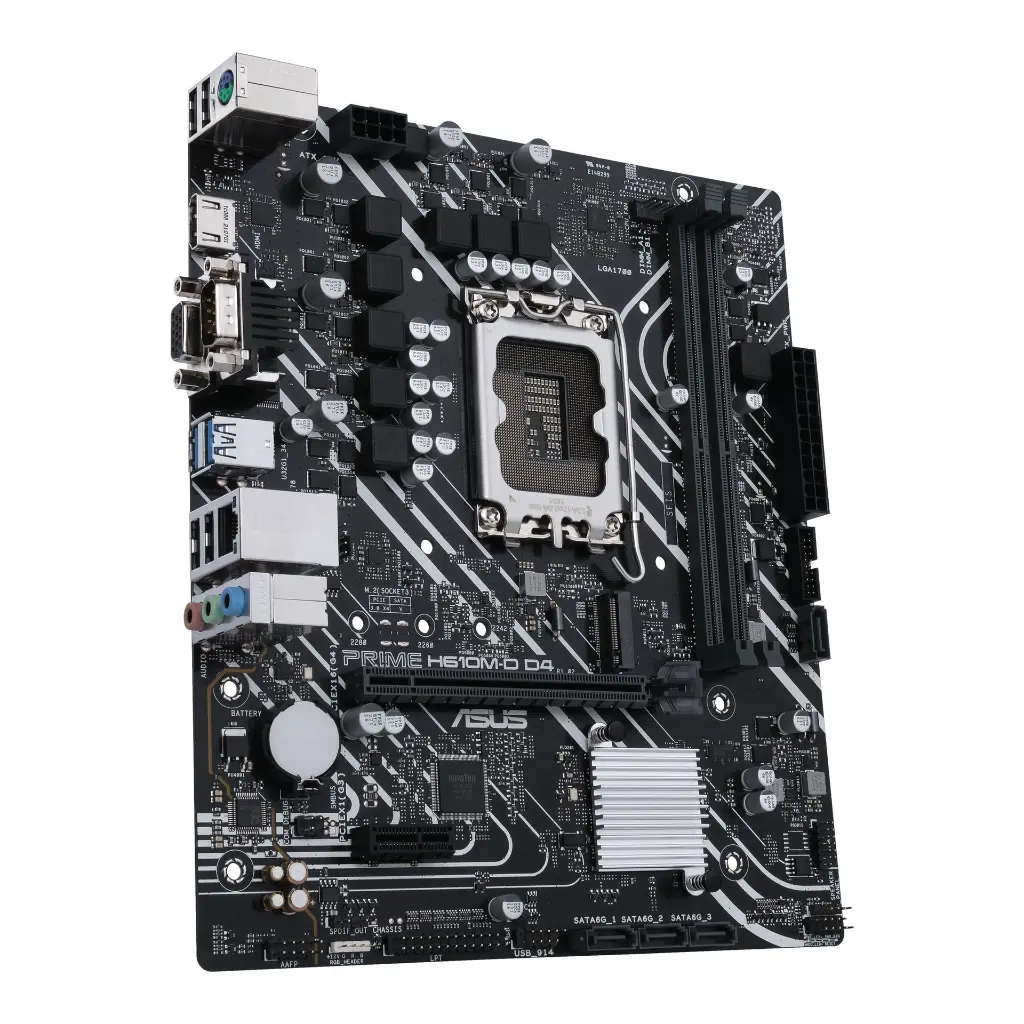

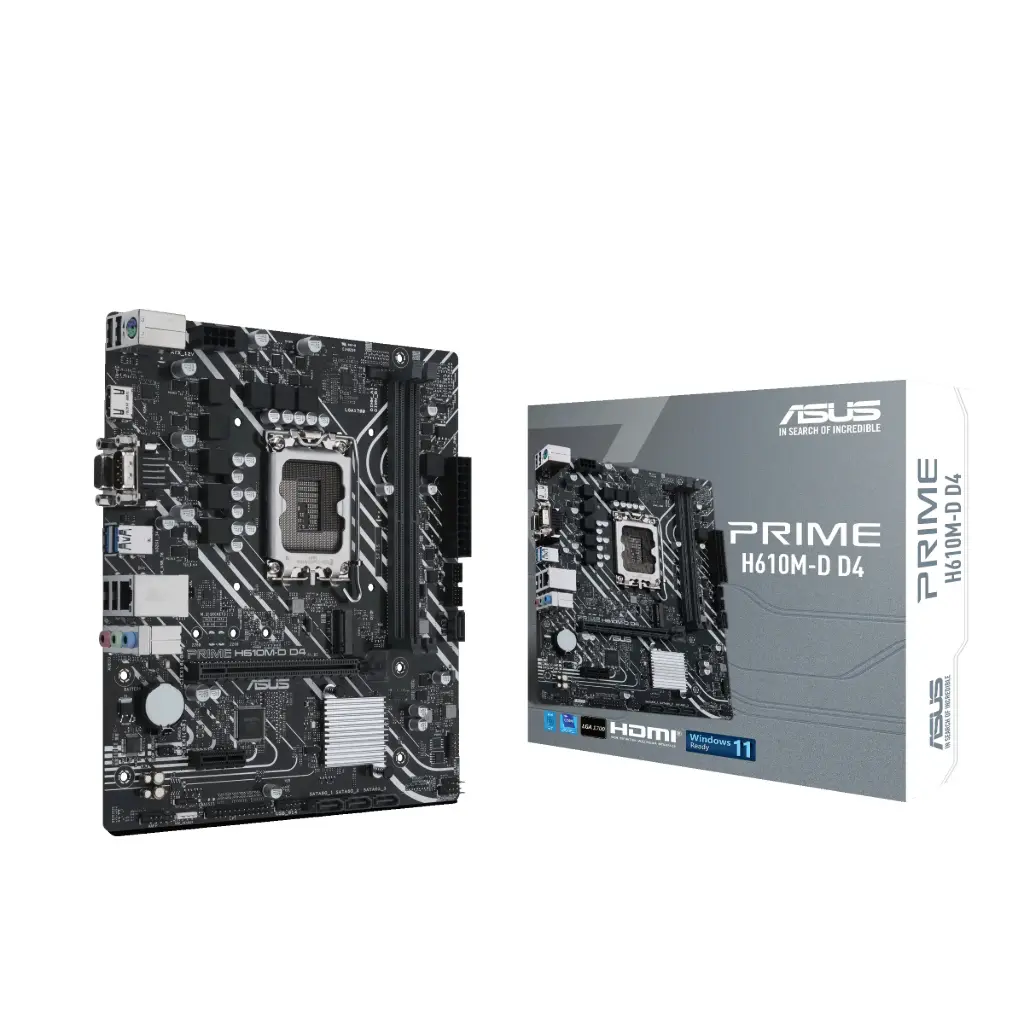

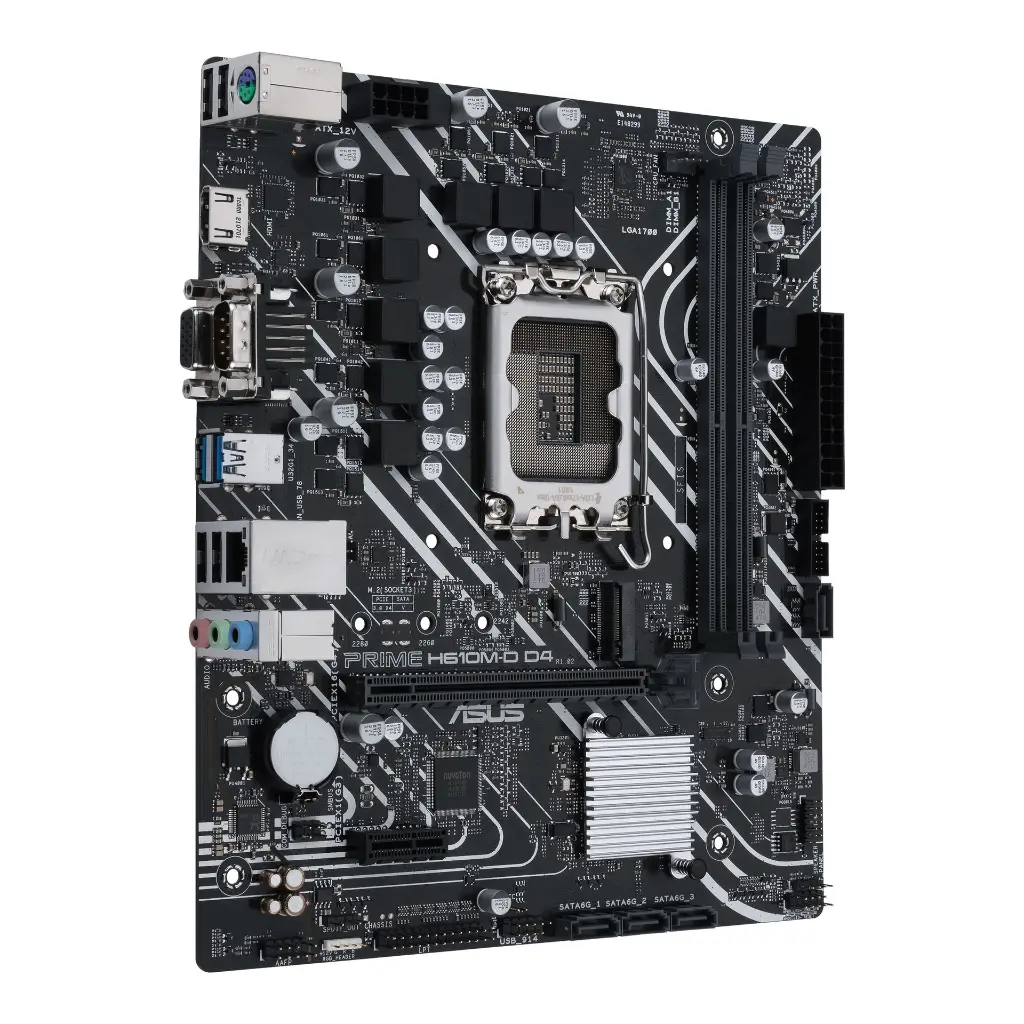

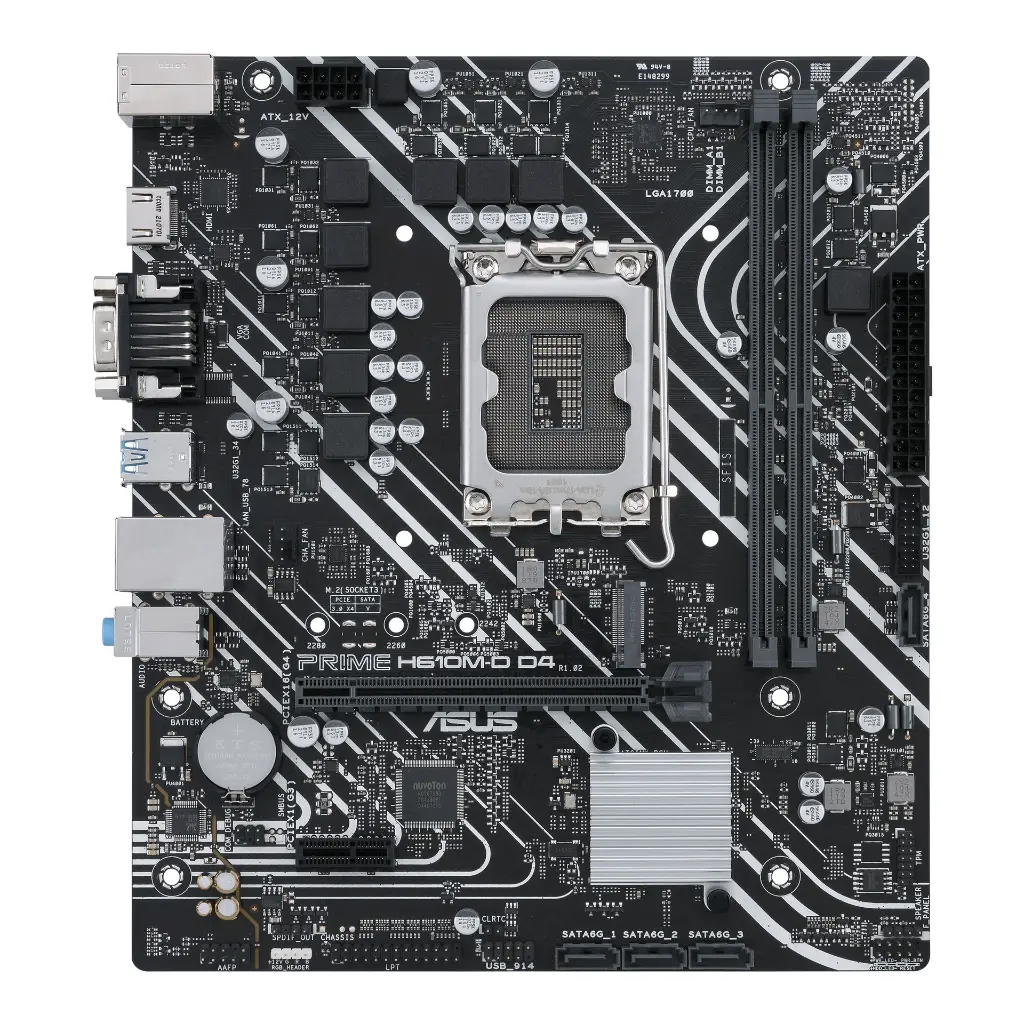

ASUS PRIME H610M-D D4 INTEL LGA 1700 DDR4 PCIe 4.0 MICRO-ATX
- CPU Compatibility: Supports Intel® Core™ 12th, 13th, and 14th Gen processors, including Pentium® Gold and Celeron® CPUs on LGA 1700 socket
- Chipset: Intel® H610 chipset designed for entry- to mid-tier builds with DDR4 support
- Memory Support: 2 × DDR4 DIMM slots, up to 64 GB total, supporting DDR4‑3200 (OC/XMP enabled via supported CPUs)
- Graphics Outputs: 1 × VGA (D‑Sub) port, 1 × HDMI port supporting up to 4K @ 60 Hz
- Expansion Slots: 1 × PCIe 4.0 ×16 slot for GPU, 1 × PCIe 3.0 ×1 slot for additional cards
- Storage Options: 1 × M.2 slot (Key M, up to 2242/2260/2280, PCIe 3.0 ×4 or SATA), 4 × SATA 6 Gb/s ports (M.2 SATA mode disables one SATA port)
- Networking:Realtek 1 Gb Ethernet LAN controller

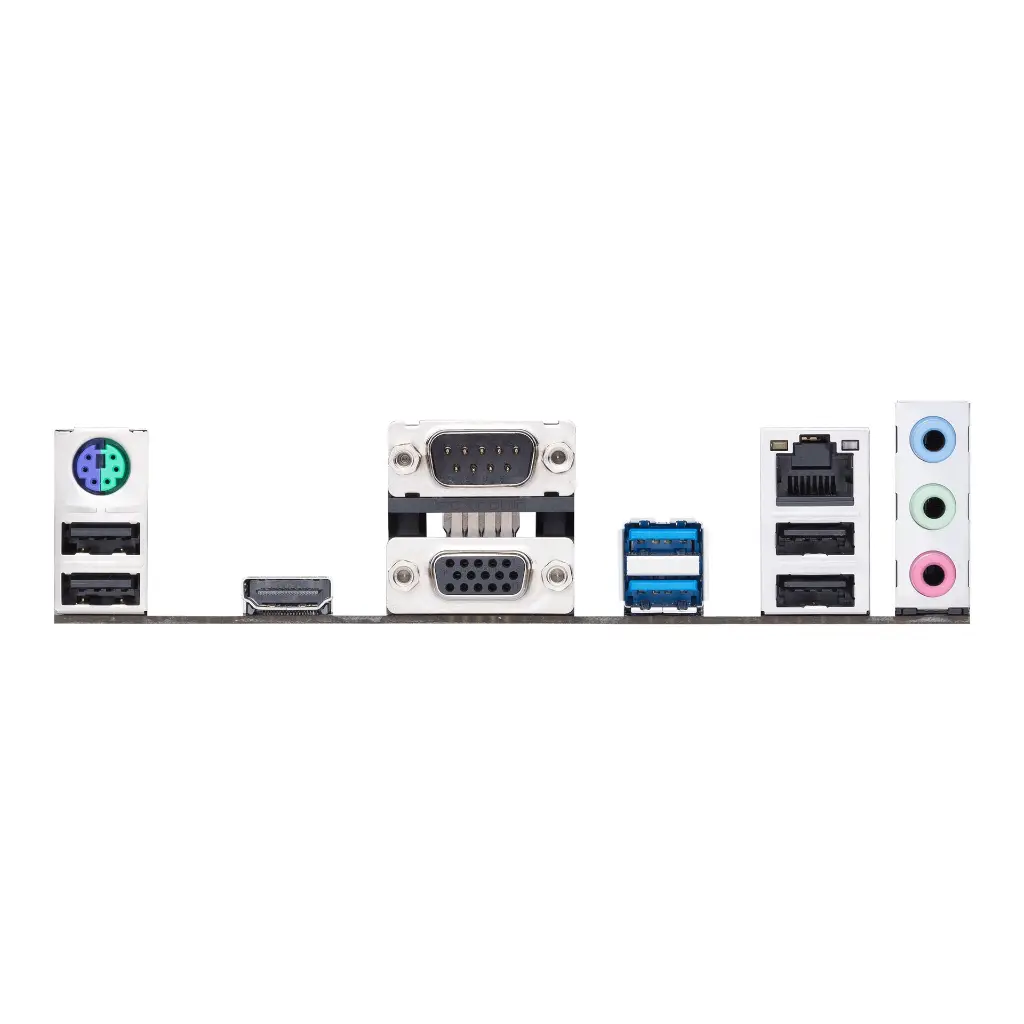

- USB Ports: Rear I/O – 2 × USB 3.2 Gen 1 (5 Gbps), 4 × USB 2.0; Front/internal headers – 2 × USB 3.2 Gen 1, 2 × USB 2.0
- Audio System:Realtek 7.1-channel HD audio codec, up to 24-bit/192 kHz playback, with audio shielding, premium capacitors, and isolated PCB audio layer
- Form Factor & Features:micro-ATX (approx. 23.4 × 20.3 cm); single CPU fan header + chassis fan header; RGB header; COM/LPT connectors; ASUS 5X Protection III (DIGI+ VRM, SafeSlot Core, LANGuard, Overvoltage Protection, Stainless-Steel I/O Shield); Q-Design features (Q-DIMM, Q-LED, Q-Slot); Armoury Crate, Fan Xpert 2+, AI Suite support for BIOS & fan control
This content will be shared across all product pages.
| Brand: ASUS |
| CPU Compatibility: INTEL |
| Chipset: H610M-D |
| Socket Type: LGA 1700 |
| Memory Type: DDR4 |
| Form Factor: Micro-ATX |
| Color: Black |
