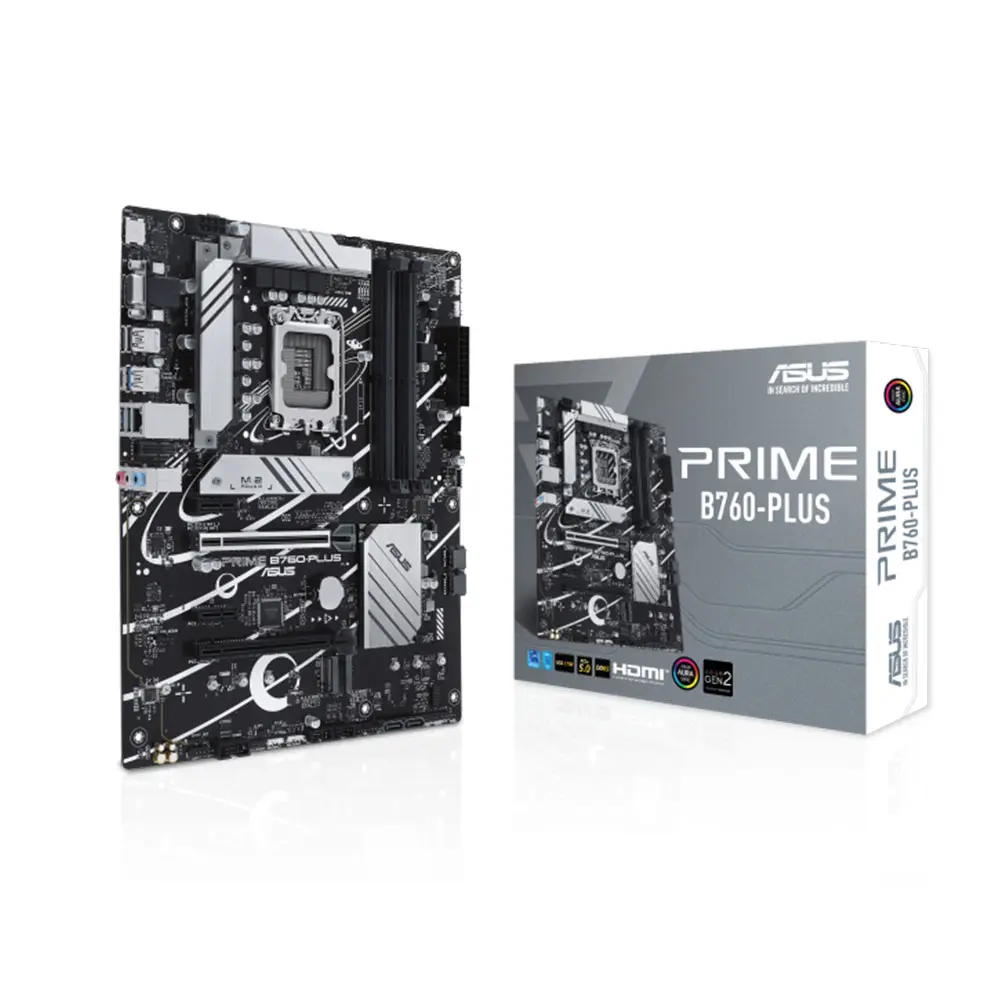

ASUS PRIME B760-PLUS INTEL LGA 1700 DDR5 PCIe 5.0 ATX
- CPU Compatibility: Supports Intel® 12th, 13th, and 14th Gen Core™ processors (including Pentium® Gold and Celeron®) on LGA 1700 socket
- Chipset: Intel® B760 chipset, optimized for DDR5 memory and advanced connectivity
- Memory Support: 4 × DDR5 DIMM slots, dual-channel, up to 192 GB (up to 256 GB at higher OC), speeds up to ~7200+ MT/s via XMP/AEMP
- Power Design & Cooling: VRM heatsinks, PCH/M.2 heatsinks, hybrid fan headers, Fan Xpert thermal management
- Expansion Slots: 1 × PCIe 5.0 ×16 SafeSlot (CPU), 1 × PCIe 4.0 ×16 (×4 mode, chipset), 2 × PCIe 3.0 ×1 slots
- Storage Options: 3 × M.2 slots (two PCIe 4.0 ×4, one PCIe 4.0 ×2), 4 × SATA 6 Gb/s ports with RAID 0/1/5/10 support
- Networking:Realtek 2.5 Gb Ethernet, vertical M.2 slot (Key E) for optional Wi‑Fi/Bluetooth
- USB & I/O Ports: Rear – 1 × USB 3.2 Gen 2×2 Type‑C, 2 × USB 3.2 Gen 2 Type‑A, 1 × USB 3.2 Gen 1, 2 × USB 2.0; Front/internal – USB Type‑C header, USB Gen1, USB 2.0 headers; Thunderbolt™ (USB4) header support
- Graphics Outputs: 1 × DisplayPort 1.4 (up to 4K @ 60 Hz), 1 × HDMI 2.1 (up to 4K @ 60 Hz)
- Audio & Form Factor:Realtek 7.1-channel HD audio codec with shielding, premium capacitors, separate PCB audio layers; standard ATX (30.5 × 24.4 cm)
This content will be shared across all product pages.
| Brand: ASUS |
| CPU Compatibility: INTEL |
| Chipset: B760-PLUS |
| Socket Type: LGA 1700 |
| Memory Type: DDR5 |
| Form Factor: ATX |
| Color: Black |
