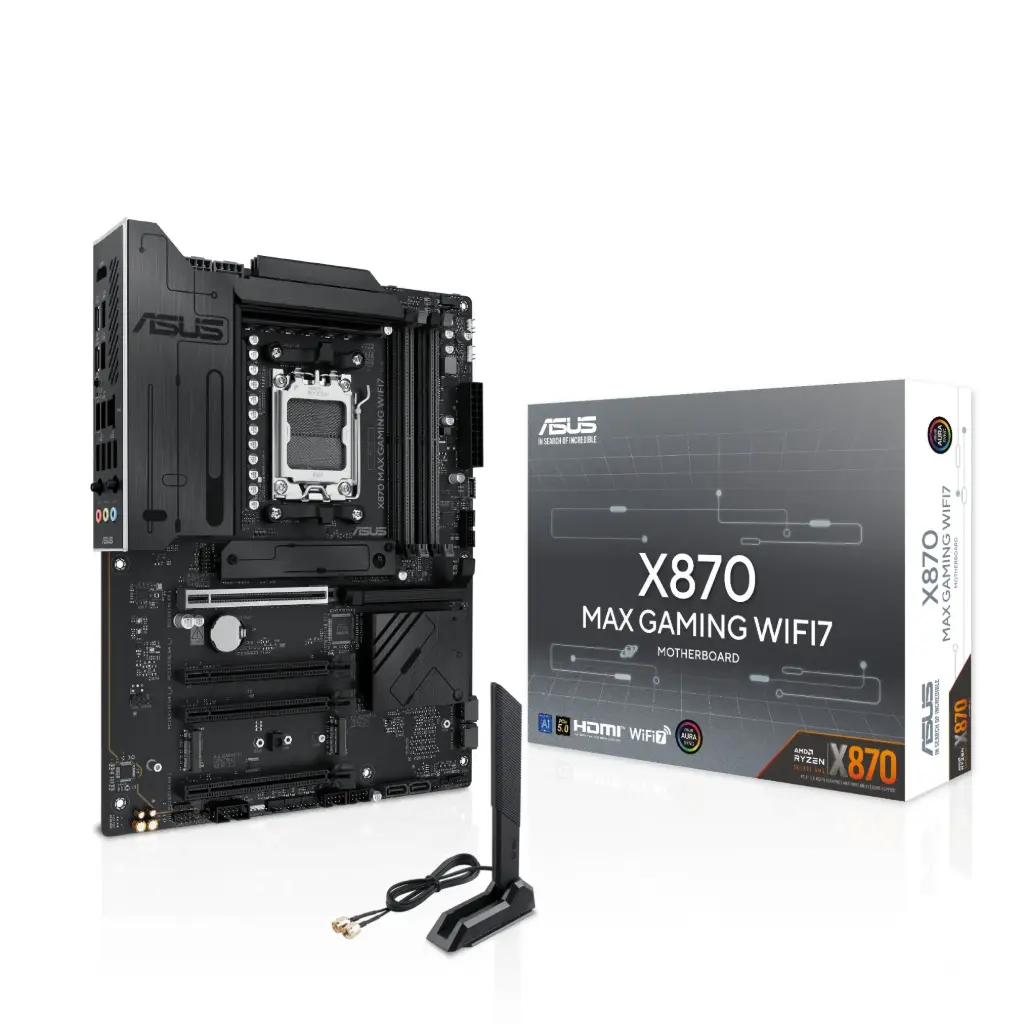

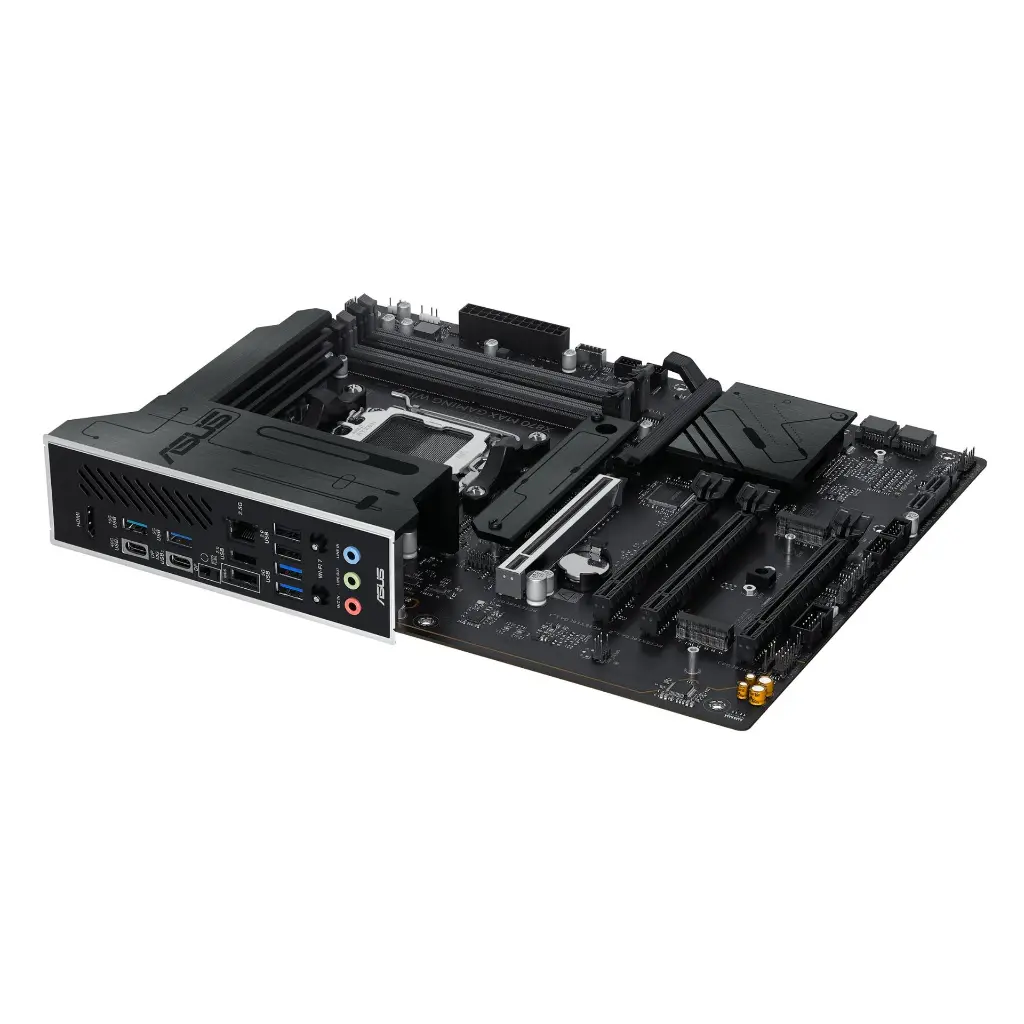

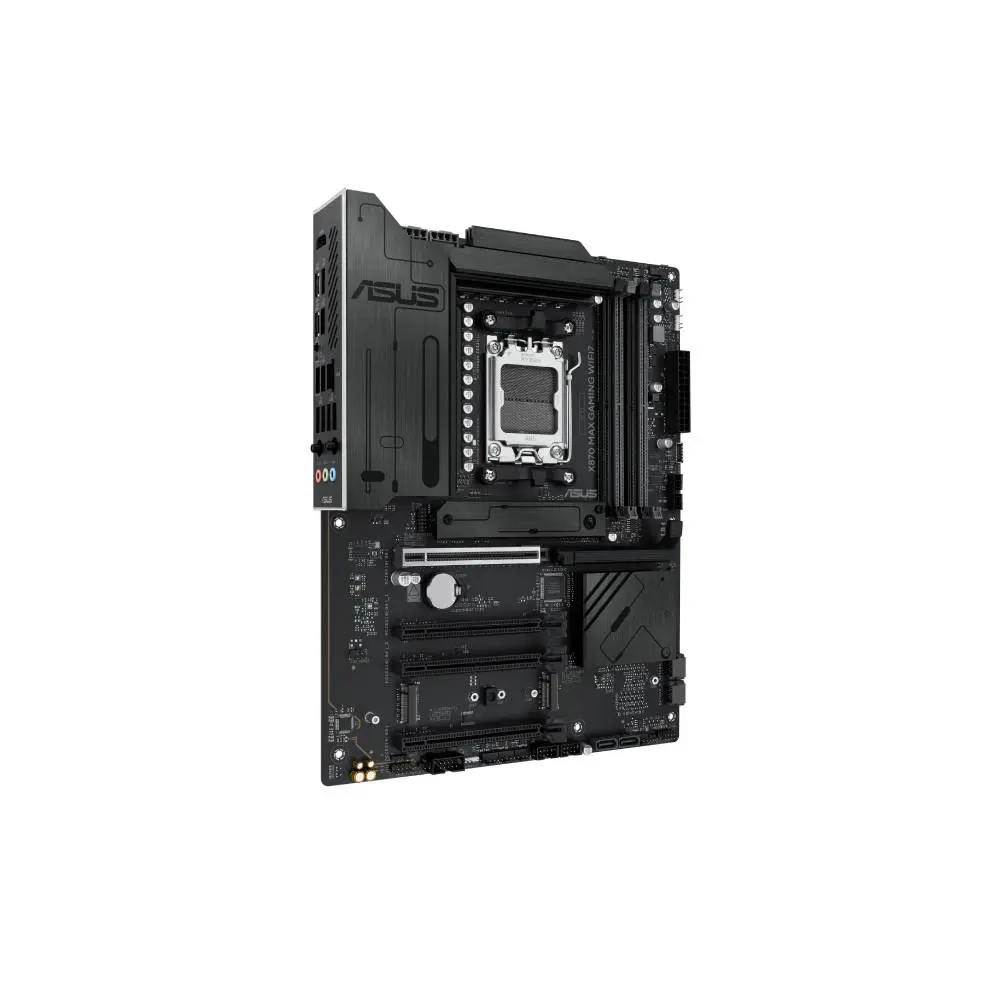

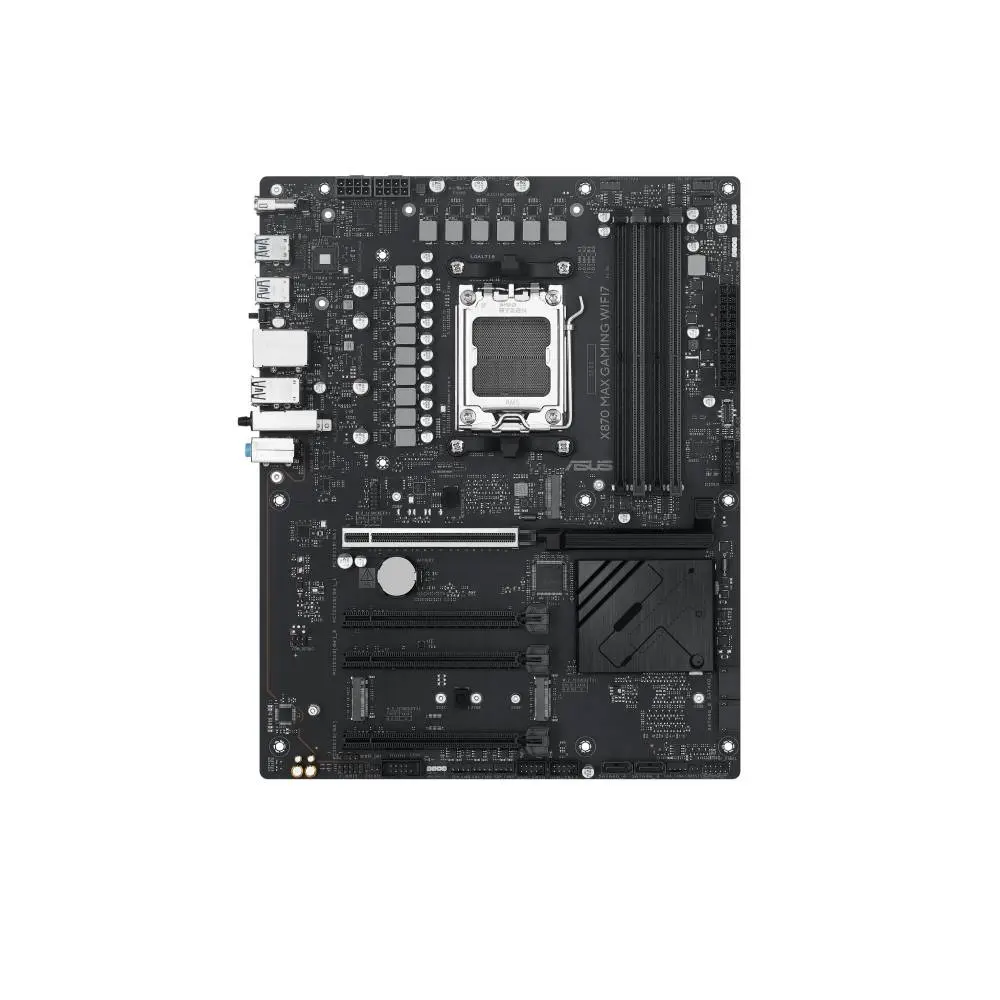

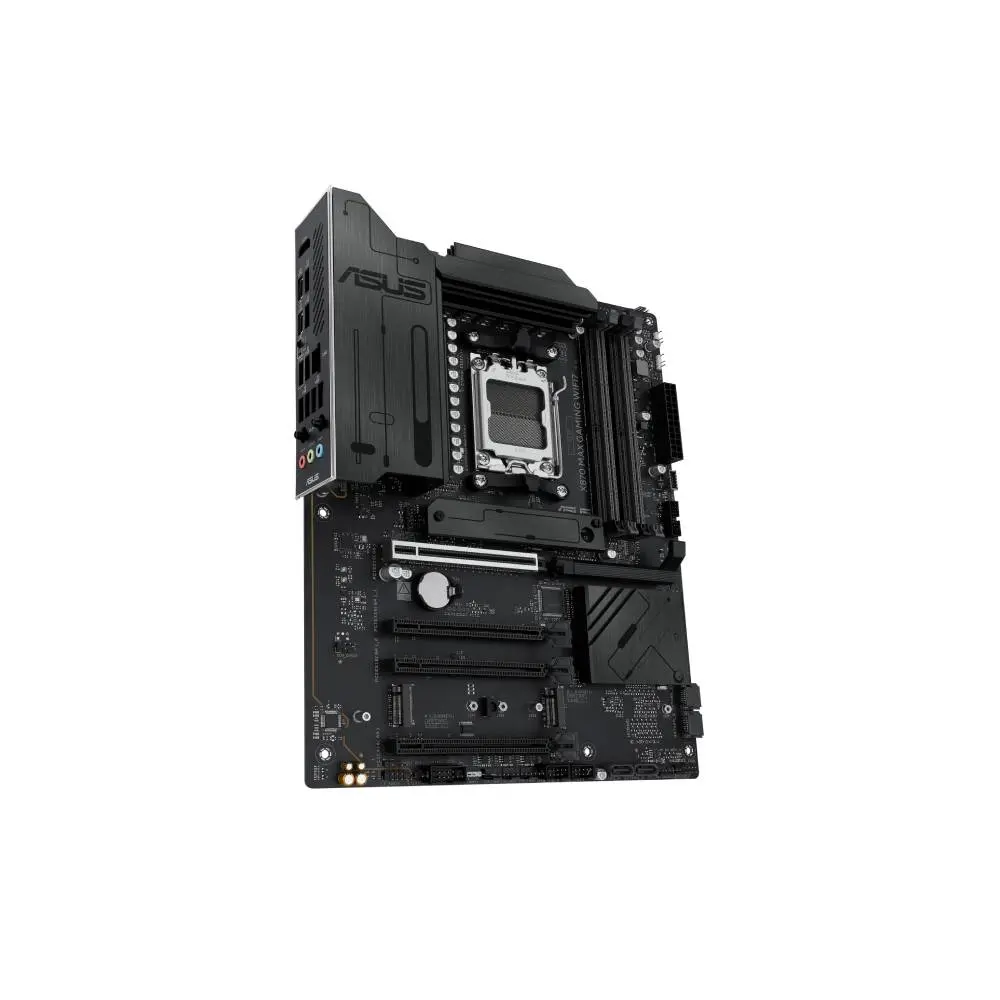

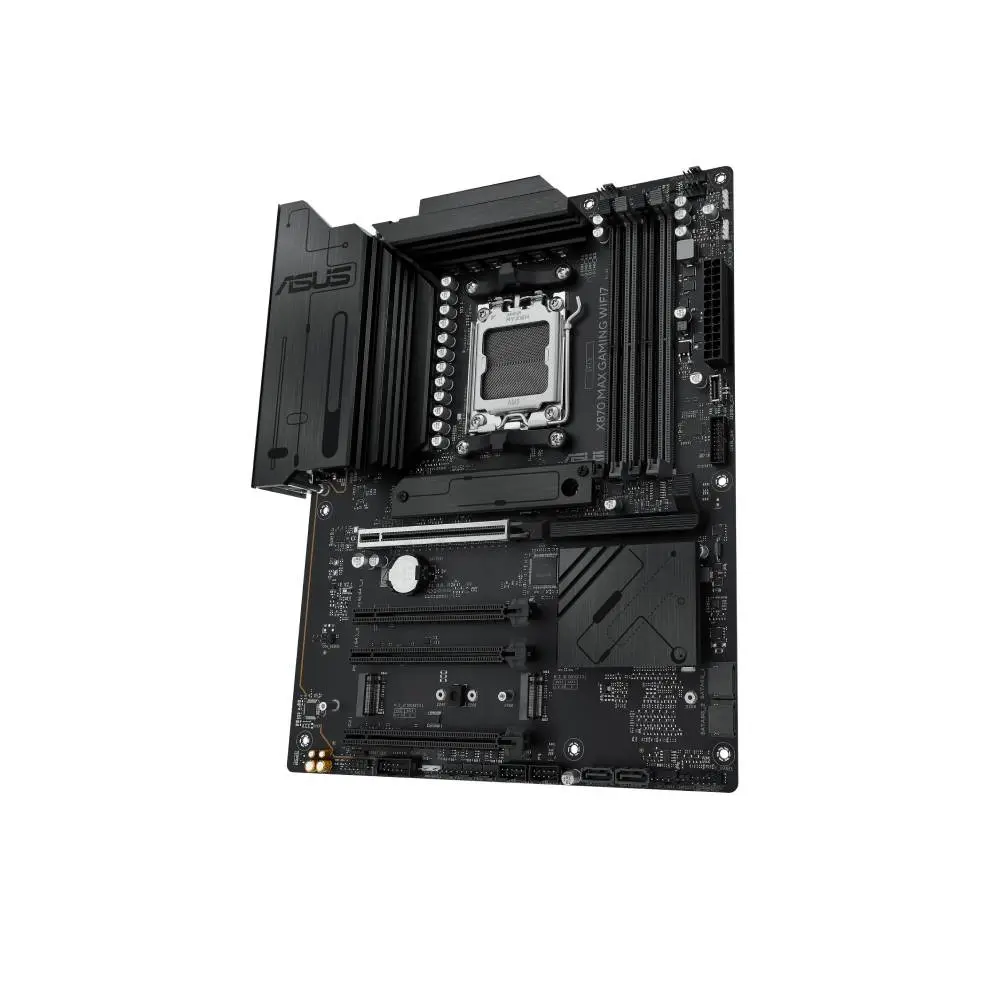

ASUS MAX X870 WIFI AMD AM5 DDR5 PCIe 5.0 ATX
- Model : ASUS X870 MAX GAMING WiFi7
- Part Number : 90MB1LY0-M0EAY0
- Form Factor : ATX (305 × 244 mm) — full-size board for expanded compatibility
- CPU Socket : AMD AM5, supports Ryzen 7000/8000/9000 Series processors
- Chipset & Power Design : X870 chipset with powerful 12+2+1(80 A) DrMOS power stages and large VRM heatsinks for overclocking stability
- Memory Support : 4 × DDR5 DIMM slots, up to 256 GB, supports AMD EXPO™ and AEMP, with overclocking to ~8000 MT/s
- Expansion Slots : 1 × PCIe 5.0 ×16 SafeSlot, 2 × PCIe 4.0 ×16 (x1 mode), 1 × PCIe 3.0 ×16 (x1 mode)
- Storage Interfaces : 3 × M.2 slots (1 × PCIe 5.0 ×4, 2 × PCIe 4.0 ×4); 4 × SATA 6 Gb/s ports with RAID support
- Networking : Built-in Wi-Fi 7 (2×2, 2.4/5/6 GHz) with Bluetooth 5.4 and Realtek 2.5 Gb Ethernet (LANGuard)

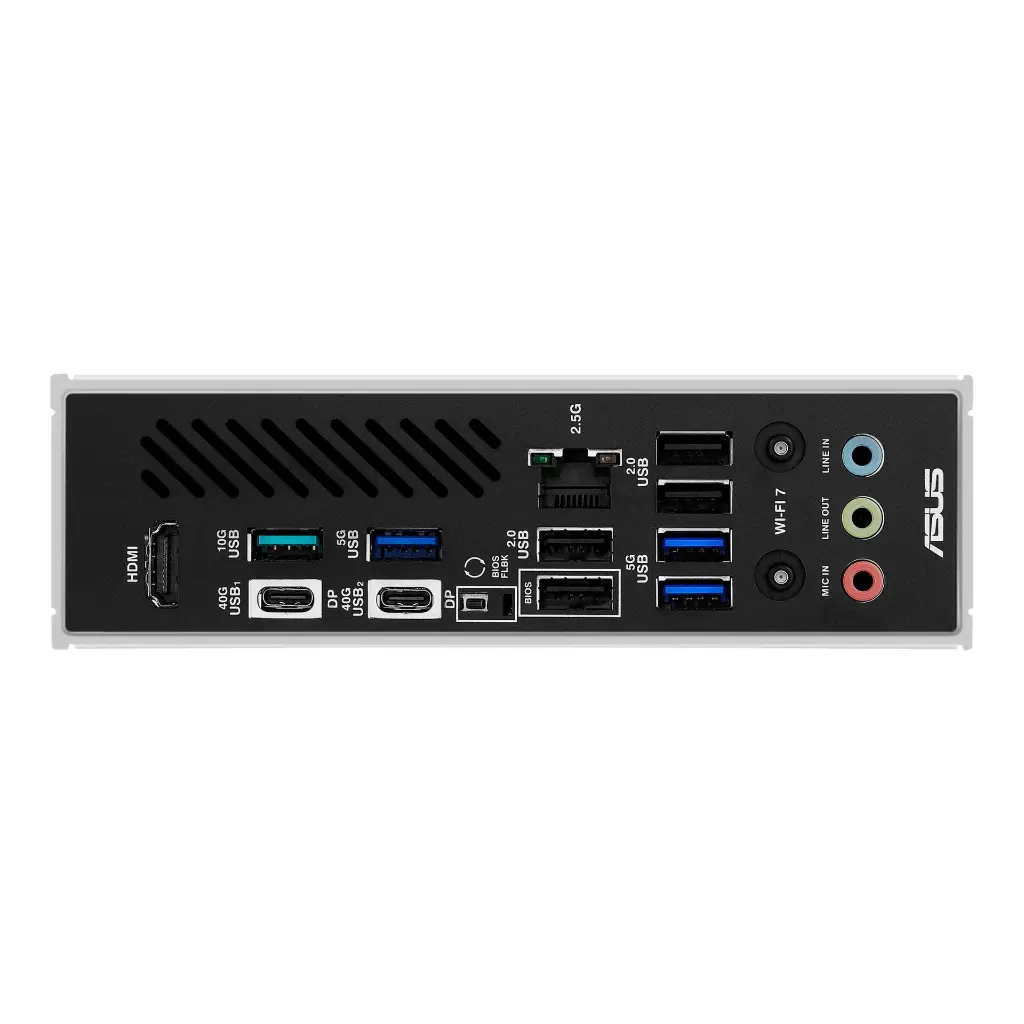

- USB Connectivity : Rear– 2 × USB4 (40 Gbps), 1 × USB 10 Gbps, 3 × USB 5 Gbps, plus USB 2.0; Front/internal headers for USB-C 20 Gbps, USB 5 Gbps, and USB 2.0
- Audio & Display : Realtek 7.1-channel HD audio codec; Rear includes HDMI output
- Additional Features : ASUS Aura Sync RGB, BIOS FlashBack™, Q-Release SafeSlot, pre-mounted I/O shield, 5X Protection III, AI Cooling, and EZ DIY design features
This content will be shared across all product pages.
| Chipset: X870 |
| Socket Type: AM5 |
| Brand: ASUS |
| Form Factor: ATX |
| Memory Type: DDR5 |
| CPU Compatibility: AMD |
