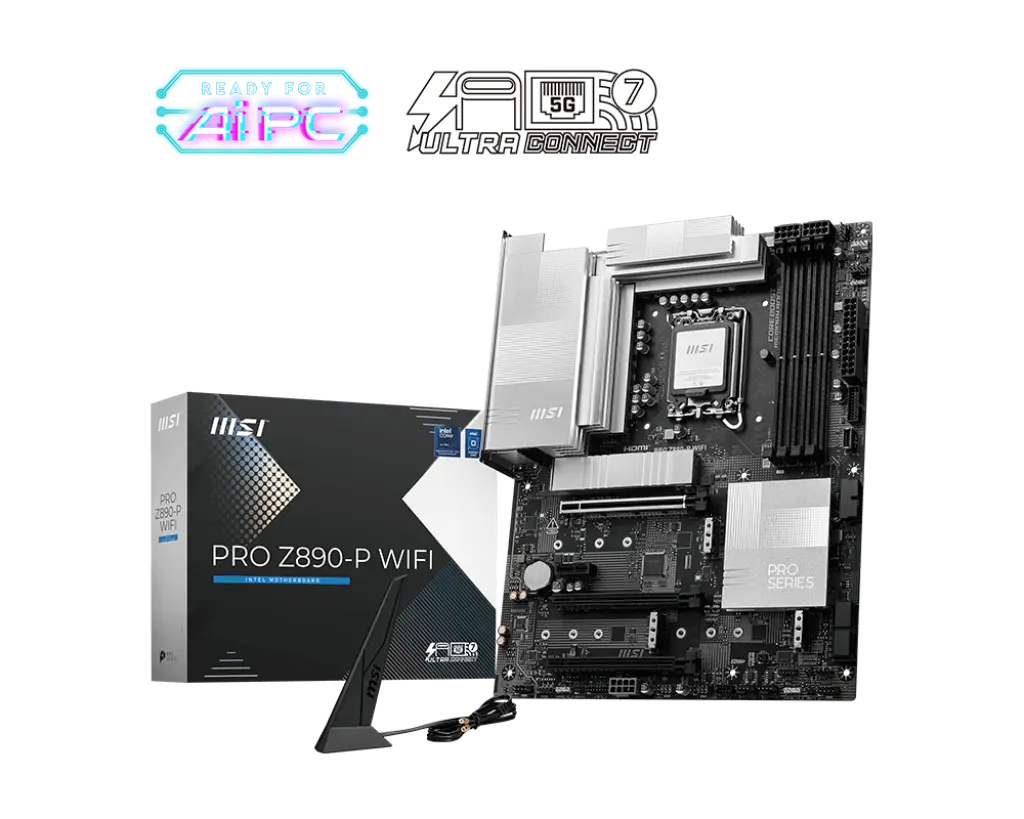

MSI PRO Z890-P WIFI INTEL LGA 1851 DDR5 PCIe 5.0 ATX
- CPU Compatibility: Supports Intel® Core™ Ultra Processors (Series 2) on the LGA 1851 socket
- Chipset & Power Design: Utilizes the Intel Z890 chipset, featuring a 14 + 1 + 1 + 1 Duet Rail power system with 55 A DrMOS phases, dual 8-pin CPU power connectors, Core Boost and Memory Boost technology on a rugged 6-layer PCB with 2 oz copper
- Memory Support: 4 × DDR5 UDIMM slots, supporting up to 256 GB total, with overclocking up to DDR5‑9200+ MT/s (OC)
- Expansion Slots: 1 × PCIe 5.0 ×16 SafeSlot (CPU-connected), 2 × PCIe 4.0 ×16 slots (chipset, operate at ×4 mode), 1 × PCIe 4.0 ×1 slot for small expansion cards
- Storage Interfaces: 4 × M.2 slots: 1 × Gen5 ×4 (CPU), plus 3 × Gen4 ×4 (chipset) for SSDs; 4 × SATA 6 Gb/s ports with RAID 0/1/5/10 support for SSDs/hard drives
- Networking: Equipped with Intel Wi‑Fi 7 (802.11be), Bluetooth 5.4, and Realtek 5 Gb LAN for ultra-fast wireless and wired connectivity
- Thunderbolt & Video Output: 1 × Thunderbolt 4 (USB Type-C) port supporting up to 40 Gbps, 8K display with DP Alt Mode and up to 15 W power delivery; 1 × HDMI 2.1 and 1 × DisplayPort 1.4 ports (via integrated graphics) for up to 4K @ 60 Hz

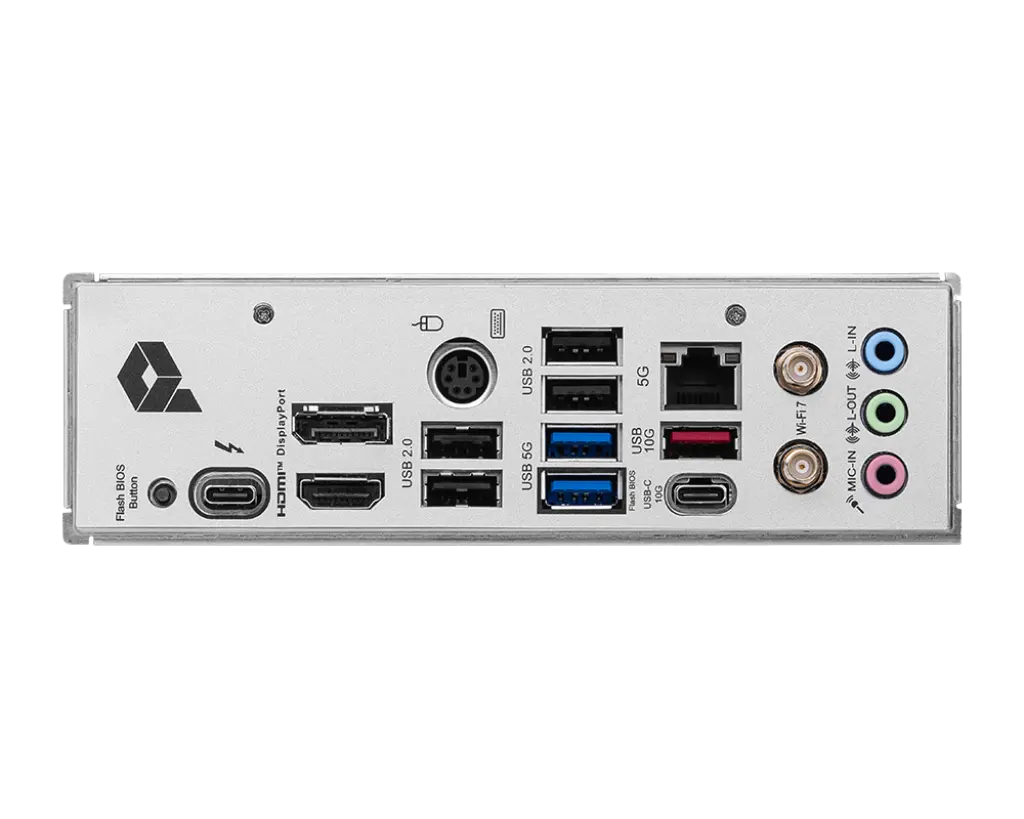

- USB & Rear I/O Ports: Rear: 1 × USB4/40 Gbps Type-C, 1 × USB 10 Gbps Type-A, 2 × USB 5 Gbps Type-A, 4 × USB 2.0 ports, plus BIOS FlashBack™ button and external antenna connectors; internal headers for additional USB and Thunderbolt connections
- Audio: High-definition 7.1-channel audio using Realtek ALC897 codec with Audio Boost technology for clean, immersive sound
- Cooling & Build Features: Premium thermal solution including extended heatsinks, MOSFET pads rated at 7 W/mK, EZ M.2 Shield Frozr II, robust PCB design; DIY-friendly I/O, PCIe and M.2 clips, pre-installed I/O shield, and enhanced overclocking utilities like Frozr AI Cooling and AI Boost
This content will be shared across all product pages.
| Brand: MSI |
| CPU Compatibility: INTEL |
| Chipset: Z890-P |
| Socket Type: LGA 1851 |
| Memory Type: DDR5 |
| Form Factor: ATX |
| Color: Black |
